Working basis
20
Service instructions 967 - 00.0 - 12/2014
3.7
Putting the handwheel into position
With some settings, the graduated scale on the handwheel must be put
into a certain position.

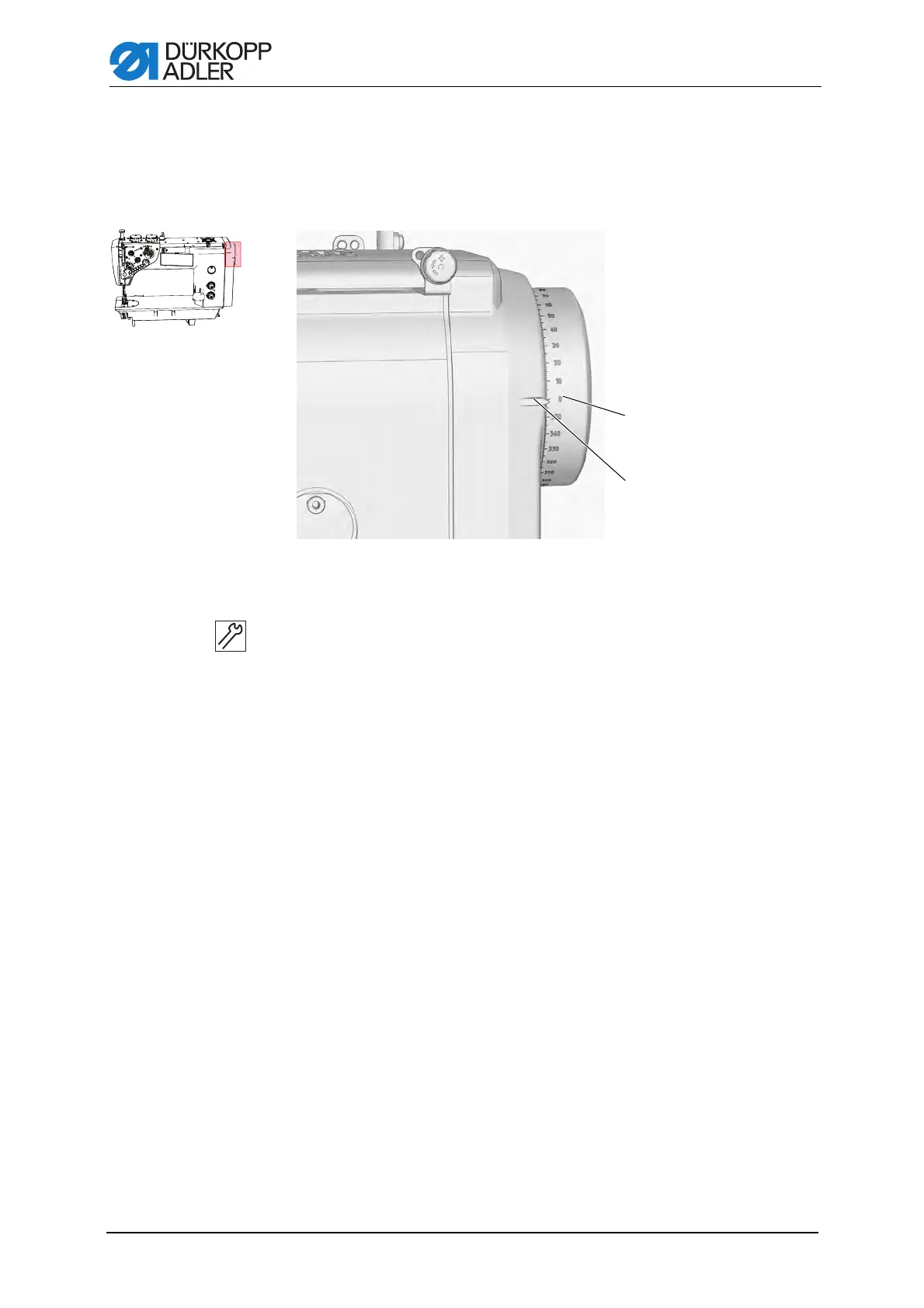

Figure 13: Putting the handwheel into position
Setting steps
1.
T
urn the handwheel until the specified number on the graduated
scale (1) is next to the marking (2).
ཱ
(1) - Graduated scale
(2) - Marking
21
23
