DURKOPP ADLER 967 - Adjusting the Positioning of the Machine; Determining the Drive Ratio in the Control Program

Setting the drive
28
Service instructions 967 - 00.0 - 12/2014
6.2 Adjusting the positioning of the machine
The machine remains automatically in one of two angular positions of the
main shaft (of the handwheel. The positioning can operate correctly only
when the reference position of the handwheel has been set.
A necessary precondition for the correct setting of the reference position
is that the drive ratio between the motor and main shaft is correctly input
into the machine control program.

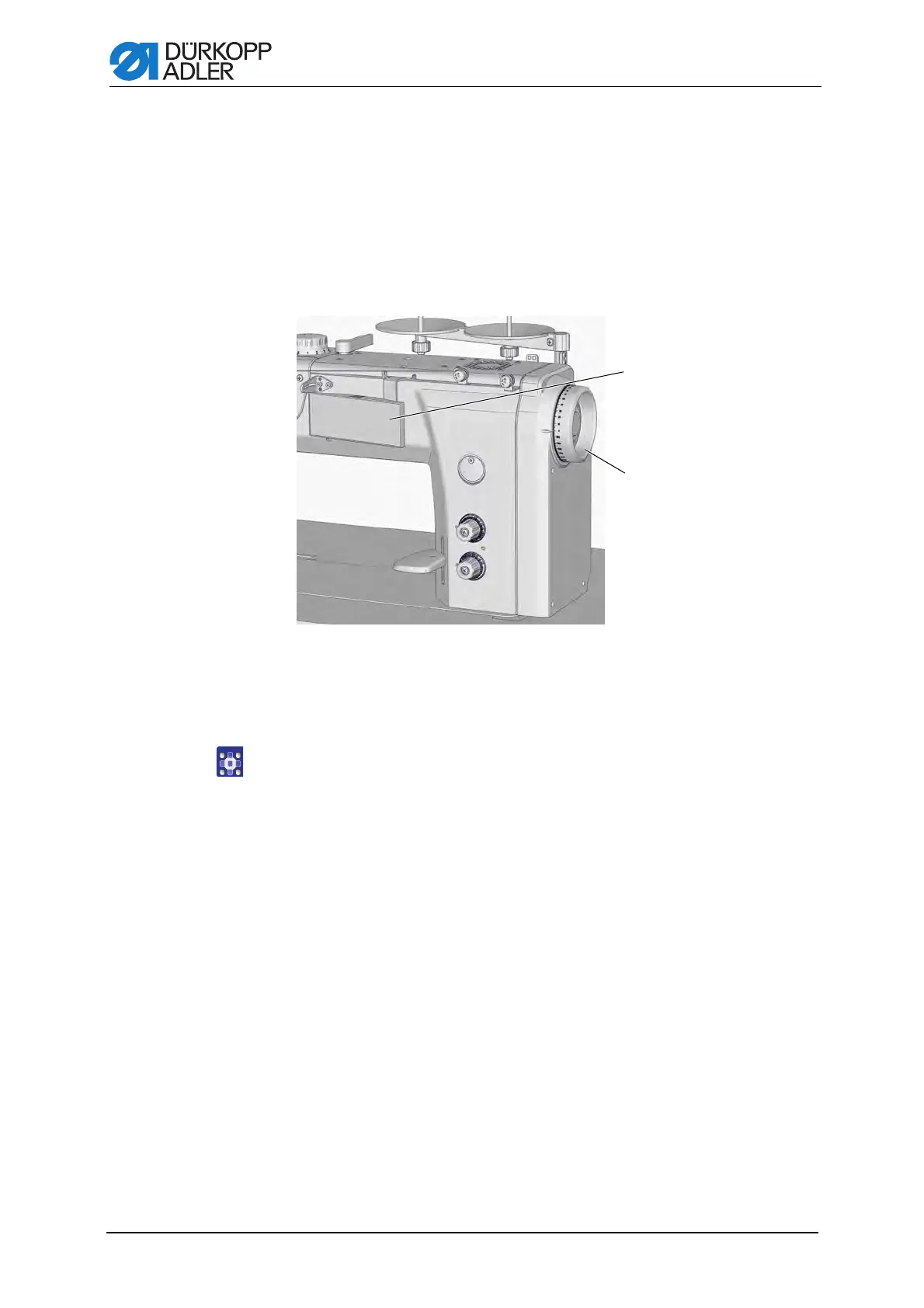

Figure 19: Adjusting the positioning of the machine
6.2.1 Determining the drive ratio in the control program
Setting steps
1. Select parameter setting mode in the field OP1000 (1) and set the param-
eter t 08 19 ( DAC basic/classic Service instructions).
2. Manually turn the handwheel (2) at least 2 revolutions.
 A new value for the drive ratio will appear on the control panel display.
3. Acknowledge the new value by pressing the OK button.
(1) - OP1000 control panel (2) - Handwheel
཰
ཱ
