3.6 Locking the sewing machine in place
For some settings, the machine has to be locked in place. To do this, the
locking peg from the accessory pack is inserted into a groove on the arm
shaft crank to block the arm shaft.
There are 2 securing positions:
• Position 1: Loop stroke position
• 5 mm end in the large groove
• Setting the loop stroke and needle bar height
• Position 2: Handwheel zero setting
• 3 mm end in the small groove
• Setting the handwheel position and checking the bottom dead
center for the needle bar

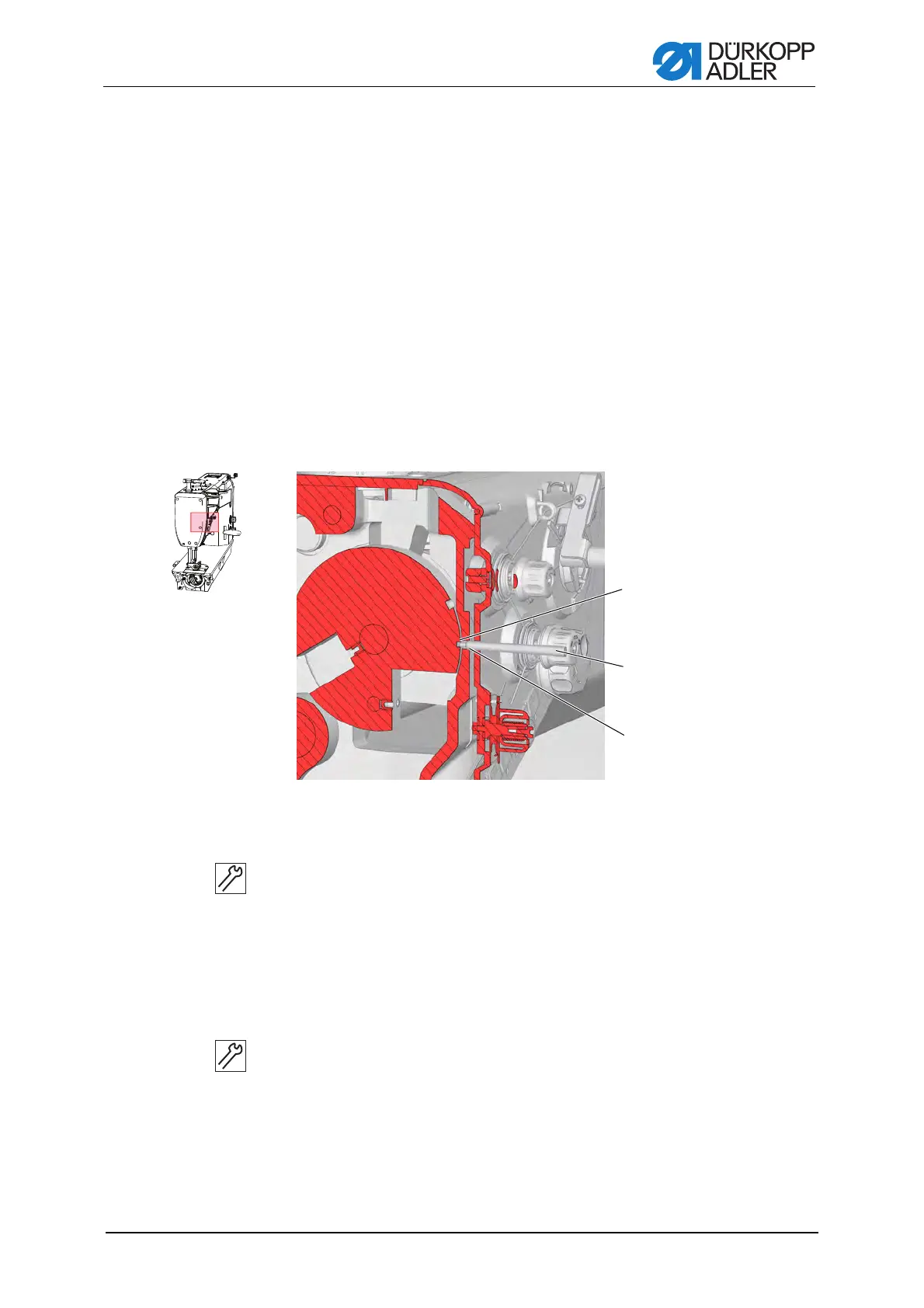

Figure 12: Locking the sewing machine in place
Locking the machine in place
1. Turn the handwheel until the appropriate groove (1) is in front of the
locking opening (3):
• Small groove at handwheel position 180°
• Large groove at handwheel position 200 - 205°
2. Insert the locking peg (2) with the appropriate end in the groove (1).
Removing the lock
1. Pull the locking peg (2) out of the groove (1).
(1) - Groove
(2) - Locking peg
(3) - Locking opening
ཱ
ི
