Setting the feed dog
42
Service instructions 967 - 00.0 - 12/2014
8.2 Adjusting the feed dog movement
The feed dog moves on an elliptical path. To align this correctly, both the
feed movement and the stroke height and stroke movement of the feed
dog have to be set.
Sequence
First check the following setting:
• Feed dog ( page 39)
8.2.1 Adjusting the forwards movement
The correct setting for the feed movement is checked at standstill and set
using the pusher eccentric.
Correct setting
Handwheel at the 190° position and set the upper stitch length adjusting
wheel to the maximum stitch length.

If the stitch regulator is pressed down, the feed dog stops.
Cover
• Take off the upper right cover ( page 11)

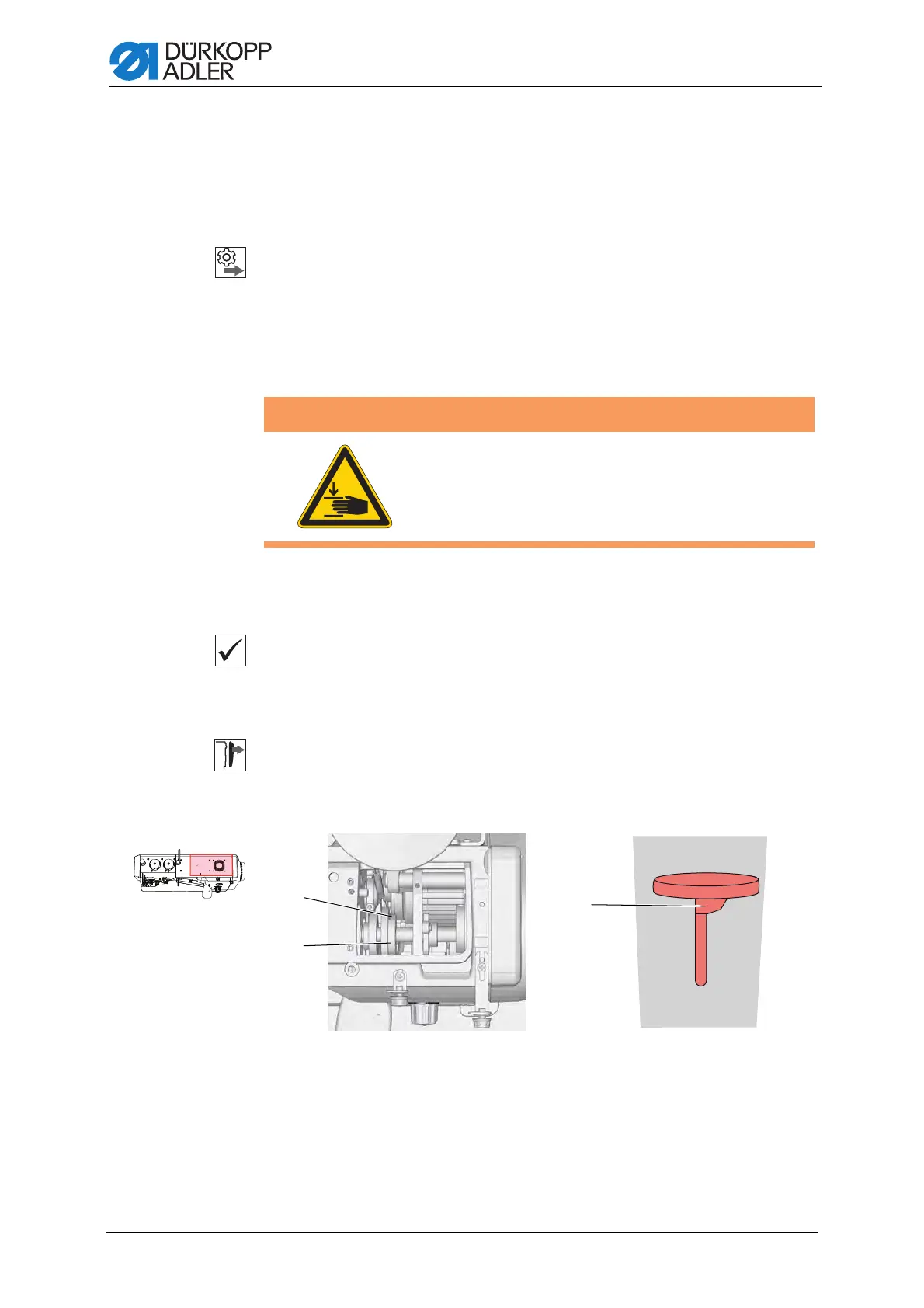

Figure 29: Setting the forwards movement for the feed dog
WARNING
Risk of injury!
Crushing injuries from moving parts.
Switch the sewing machine off before you check
and set the forwards movement of the feed dog.
(1) - Setscrews
(2) - Pusher eccentric
(3) - Stitch adjustment lever
཰
ཱ
ི
