Setting the feed dog
Service instructions 967 - 00.0 - 12/2014
41

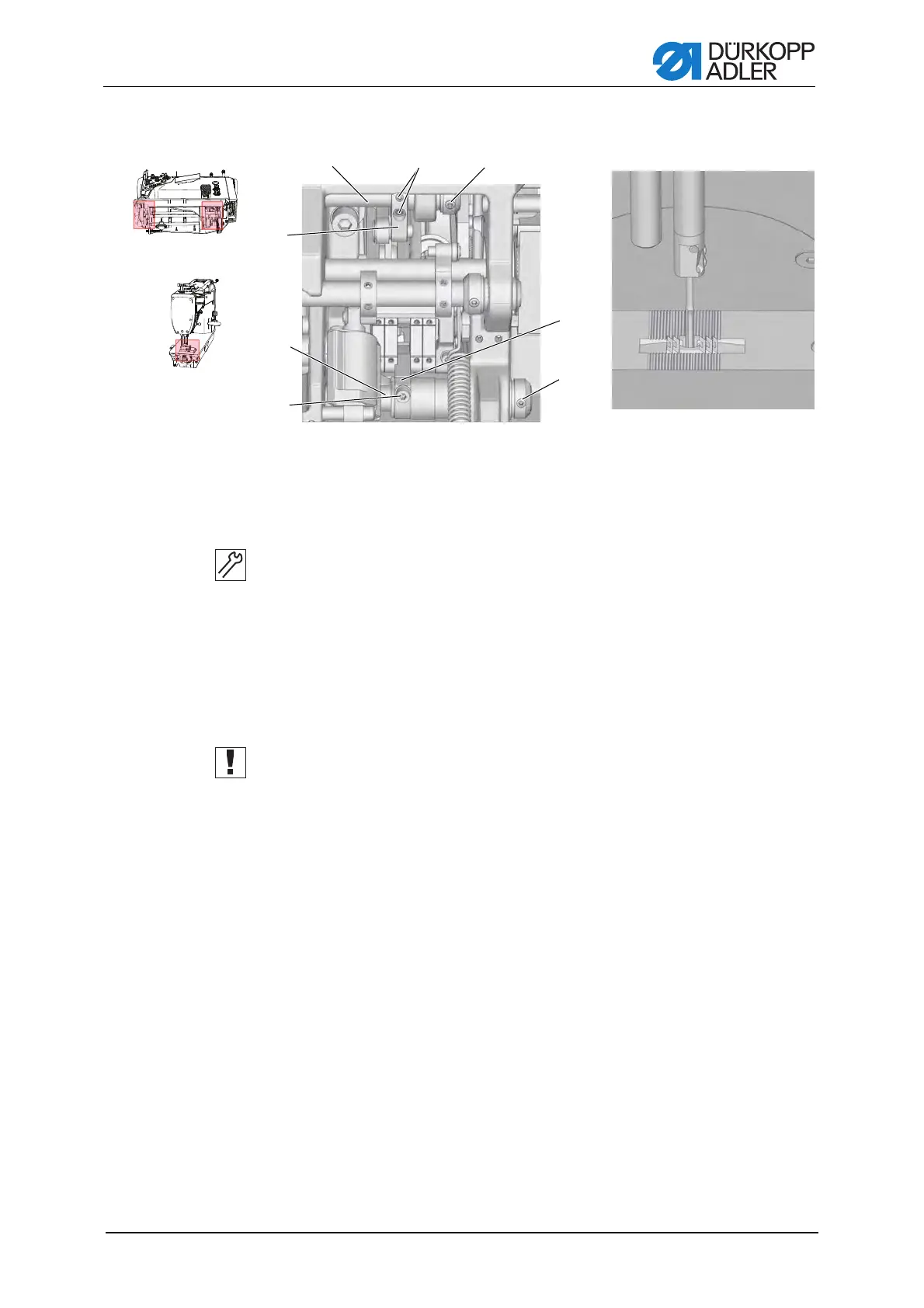

Figure 28: Moving the feed dog carrier
Setting steps
1. Position the upper stitch length adjusting wheel to 0.
2. Loosen the screw (6) and adjusting ring (7).
3. Loosen the screws (2) and adjusting ring (1).
4. Move the feed dog carrier across the line of the sewing direction such
that the feed dog is exactly in the center of the throat plate cut-out.
5. Push the adjusting ring (1) and clamp (4) towards each other as far as
they will go.
When doing this, make sure that the stroke shaft (3) is firmly held by
the clamp (4) and adjustment ring (1).
6. Tighten the setscrew of the adjustment ring (1) and the screws (2).
7. Push the adjusting ring (7) and clamp (8) towards each other as far as
they will go.
When doing this, make sure that the sliding shaft (5) is firmly held by
the clamp (8) and adjustment ring (7).
8. Tighten the setscrew of the adjustment ring (7) and the screw (6).
(1) - Adjusting ring
(2) - Screws
(3) - Stroke shaft
(4) - Clamp
(5) - Sliding shaft
(6) - Screw
(7) - Adjusting ring
(8) - Clamp
ཱི
ཱི
ུ
ཱུ
ྲྀ
ཷ
