Positioning the arm shaft
Service instructions 967 - 00.0 - 12/2014
21
4 Positioning the arm shaft
Correct setting
The 3 setscrews (1) must be seated flush on the flat. The arm shaft crank
must be flush with the machine casting.
Cover
• Upper left cover, ( page 11).

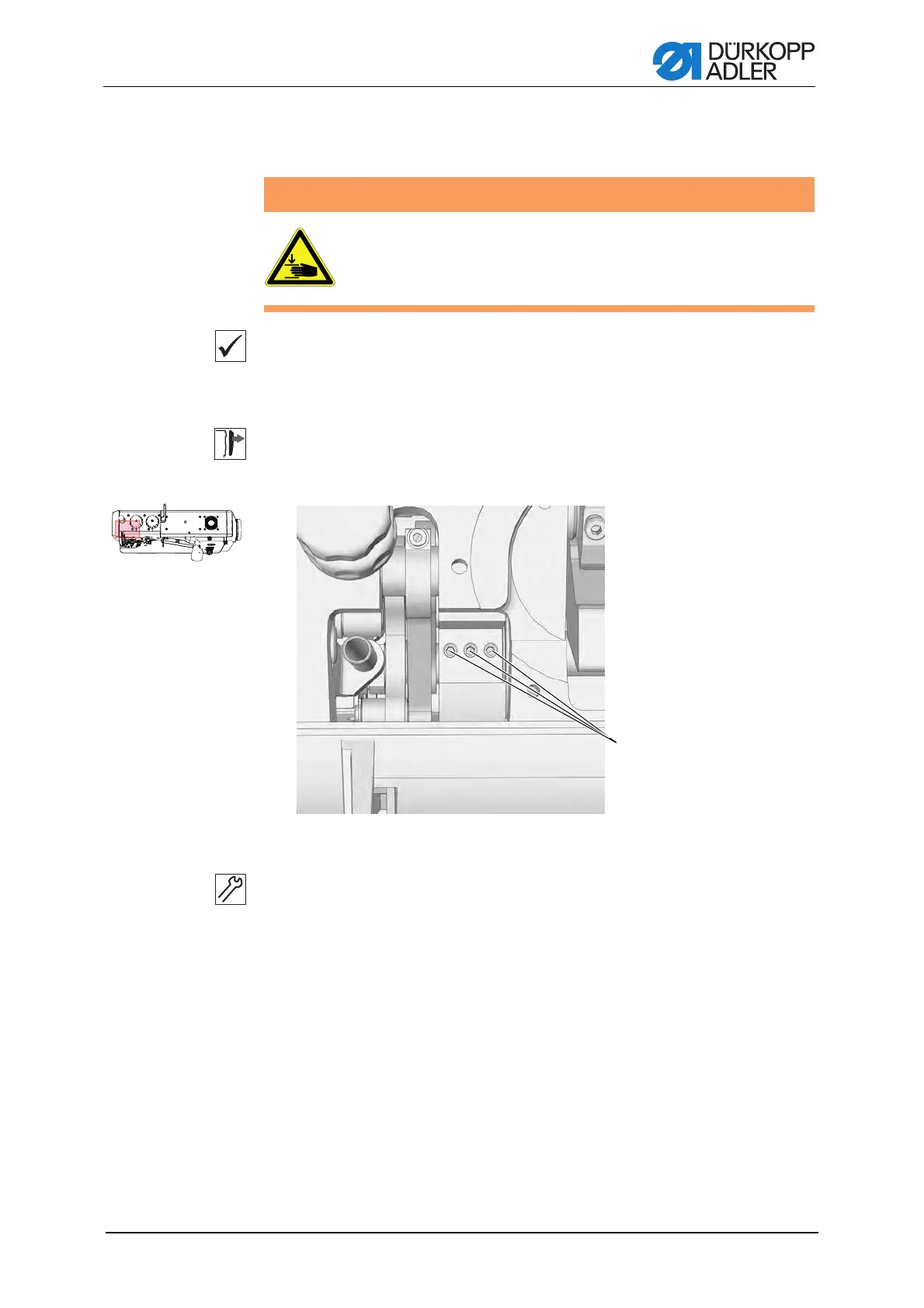

Figure 14: Setting the arm shaft crank
Setting steps
1. Release all the setscrews (1) on the arm shaft crank.
2. Turn the arm shaft crank so that the setscrews (1) are seated flush on
the flat of the arm shaft.
3. Push the arm shaft to the right as far as it will go and flush with the
machine casting.
4. Tighten all the setscrews (1) on the arm shaft crank.
WARNING
Risk of injury!
Crushing injuries from moving parts.
Switch the sewing machine off before you check and set the
position of the arm shaft crank.
(1) - Setscrews
