Adjusting the thread cut-off
Service instructions 967 - 00.0 - 12/2014
79
5. Gently tighten the screw (5) so that the lever (6) can be turned on the
shaft (4) with slight frictional torque.
6. Restrain the stop lever (3) in the park position and turn the lever (6) so
that the marking on the knife (7) is covered by the blade of the fixed
knife (8).
7. Tighten the screw (5).
14.4 Adjusting the lateral position of the movable knife
Correct setting
The fixed knife (1) must be in line with the movable knife (2) on both sides.
Cover
• Throat plate ( page 15)
• Feed dog ( page 16)
• Tilt the upper section ( page 10).

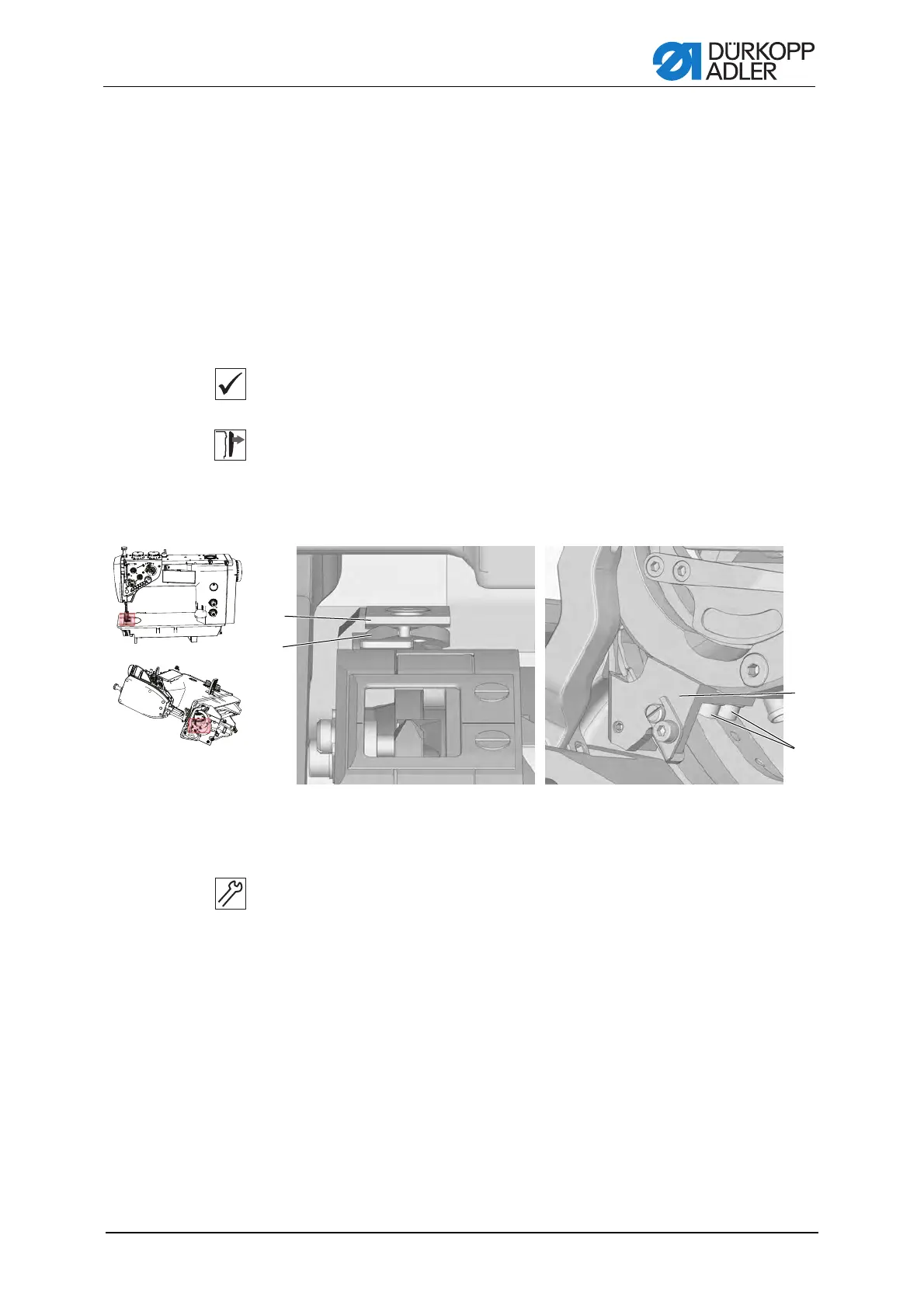

Figure 54: Adjusting the lateral position of the fixed knife.
Setting steps
1. Loosen the screws (3).
2. Move the bracket (4) sideways so that the fixed knife (1) is parallel to
the movable knife (2).
3. Tighten the screws (3).
(1) - Fixed knife
(2) - Movable knife
(3) - Screws
(4) - Bracket
ཱ
ི
ཱི
