Adjusting the sewing foot feed
Service instructions 967 - 00.0 - 12/2014
63
11.4 Setting the stroke movement for the feeding foot
For correct feed, the stroke movement for the feeding foot must be aligned
to the stroke movement for the feed dog.
Correct setting
Left adjusting wheel for the sewing foot stroke set to maximum stroke and
the upper stitch length adjusting wheel to 0.
The feeding foot (1) touches down exactly on the feed dog (2) when
the downwards movement of the needle tip (3) reaches the upper
edge of the feeding foot. This will occur when the handwheel is in the
95° position.

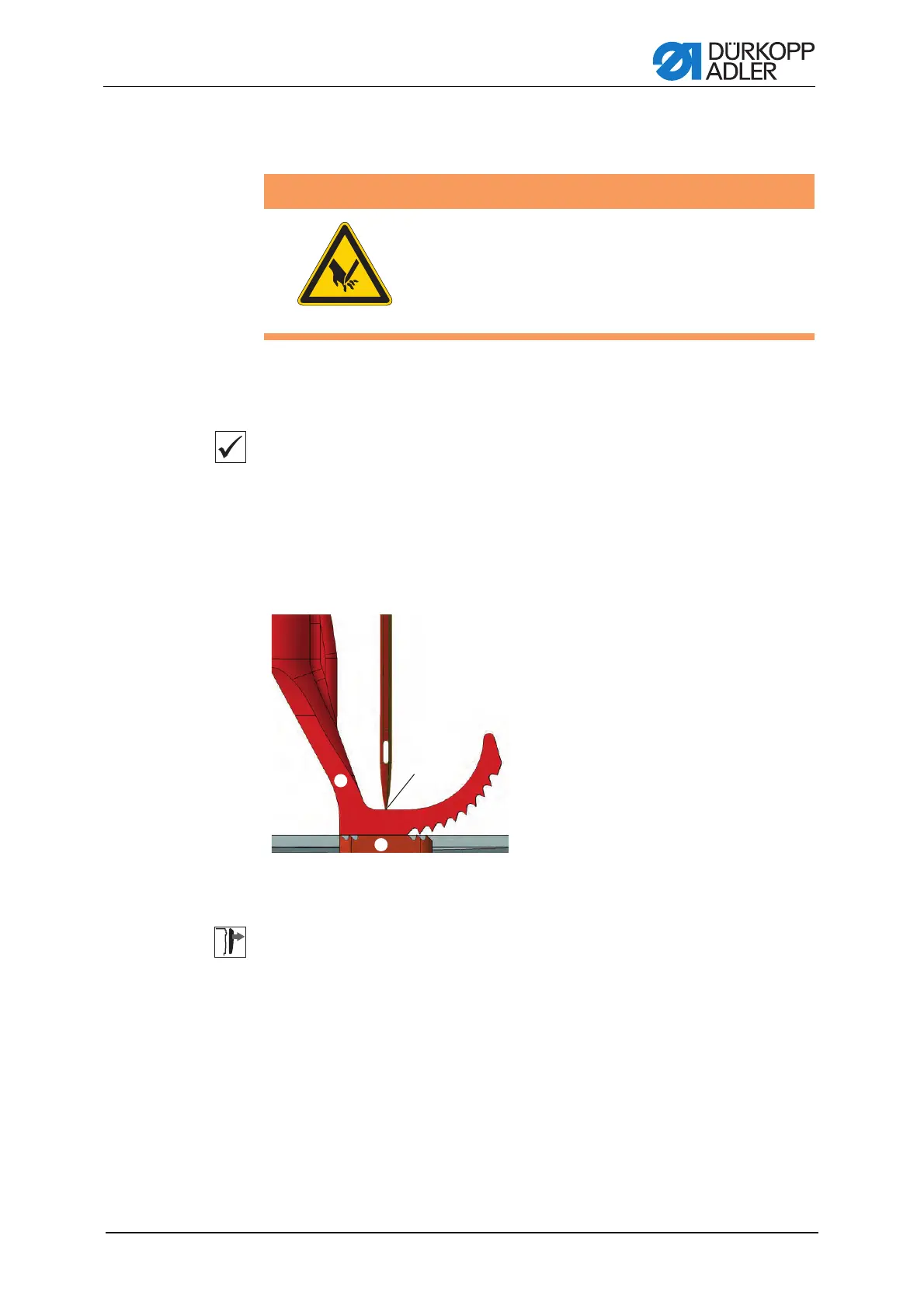

Figure 43: Stroke movement for the feeding foot and feed dog
Cover
• Arm cover ( page 11)
WARNING
Risk of injury!
Risk of crushing injuries and stab wounds from mov-
ing and sharp parts.
Switch the sewing machine off before you check
and set the stroke movement for the feeding foot.
2
1
3
(1) - Feeding foot
(2) - Feed dog
(3) - Needle tip
