Adjusting the sewing foot feed
64
Service instructions 967 - 00.0 - 12/2014

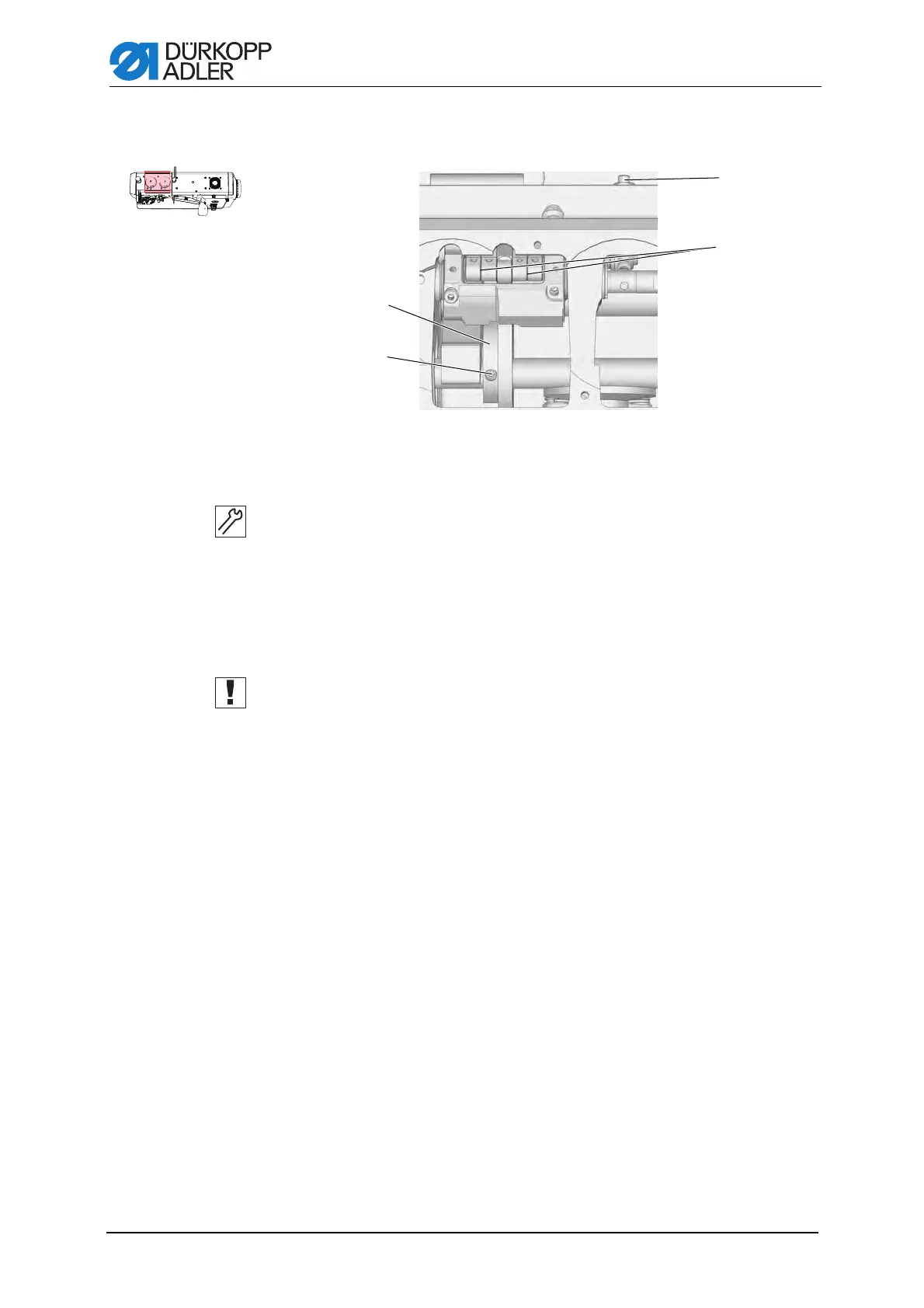

Figure 44: Setting the point in time for when the feeding foot touches down
Setting steps
1. Screw in the setscrew (4) so that a stroke is available.
2. Position the upper stitch length adjusting wheel to 0.
3. Loosen the setscrews (2).
4. Turn the stroke eccentric (1) such that the feeding foot touches down
on the feed dog when the handwheel is in the 95° position and the tip
of the needle is at the height of the upper edge of the feeding foot.
When doing this, do not move the stroke eccentric (1) laterally on the
axle.
5. Tighten the setscrews (2).
6. Unscrew the setscrew (4) far enough so that the clips (3) are once again
in a line.
(1) - Stroke eccentric
(2) - Setscrews
(3) - Plates
(4) - Setscrew
ཱ
ི
ཱི
