Removing the thread tension plate
1. First remove the upper right cover (1).
The thread tension plate is connected to cables and hoses which are
attached under the upper right cover. This cover therefore must be
removed.
2. Loosen the screws (2).
3. Remove the thread tension plate (3).
3.3.7 Removing and installing the hook compartment cover

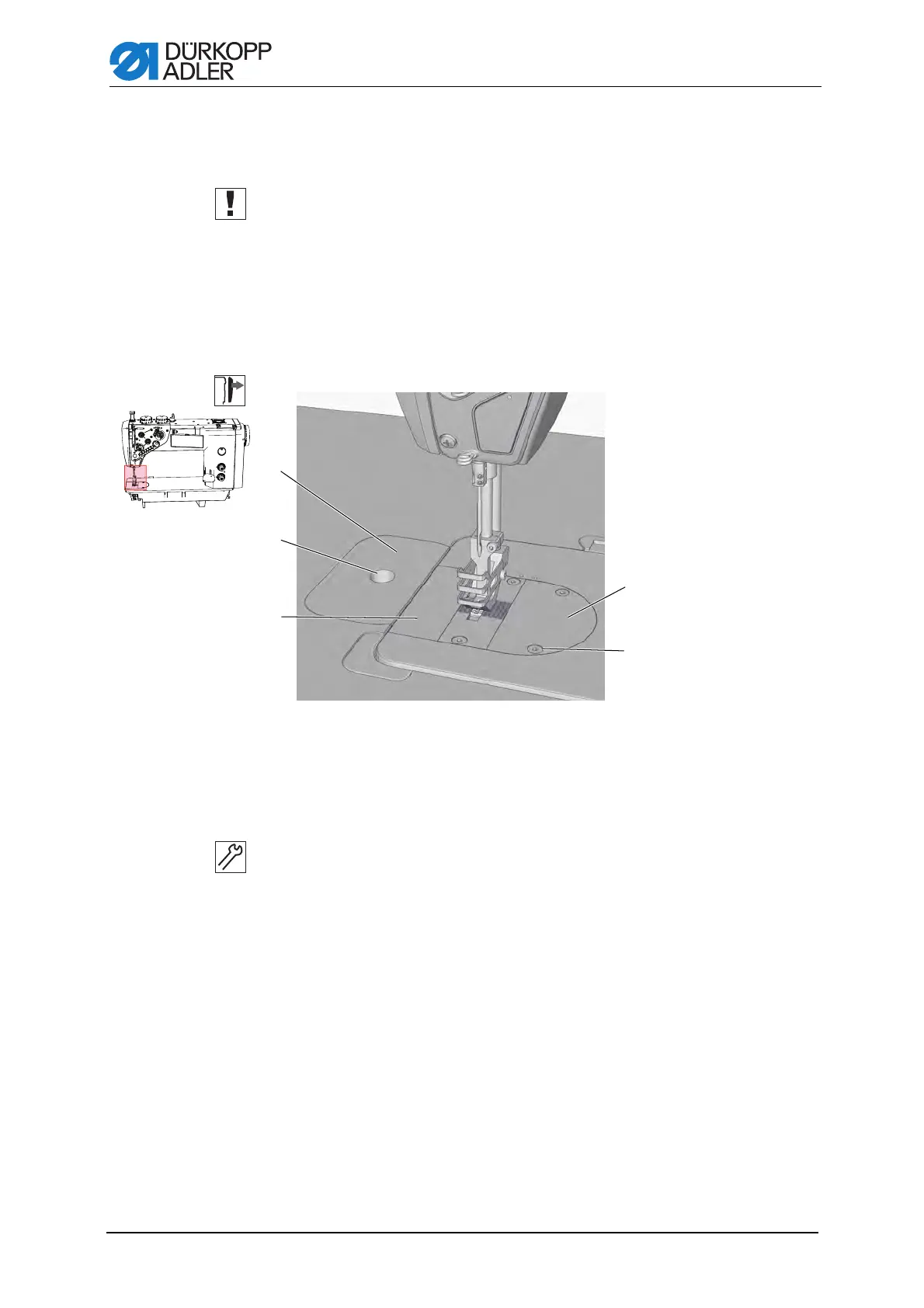

Figure 7: Removing the hook compartment cover
Removing the hook compartment cover
1. Insert a finger into the opening (2).
2. Push the cover (1) up.
3. Applying moderate force, pull the cover (3) off upwards the
(the cover is secured with a permanent magnet).
4. Loosen the screws (4).
5. Remove the plate (5).
(1) - Cover
(2) - Opening
(3) - Cover
(4) - Screws
(5) - Plate
ཱ
ི
ཱི
ུ
