Adjusting the sewing foot feed
62
Service instructions 967 - 00.0 - 12/2014
11.3 Aligning the feed stroke of the feet
The main purpose of this adjustment is to ensure that at the start of feed-
ing the presser foot is lifted above the material and the material feeding
movement is not prevented by the sewing foot.
Correct setting
When the stitch length is set to 0 and the stroke of the foot is set to 0:
The lever is attached to the lift bar of the feet by the screw (5) in such
a way that the presser foot (1) is 0.3 mm than the sewing foot (2).
Cover
• Arm cover ( page 11)
• Head cover (
page 12)

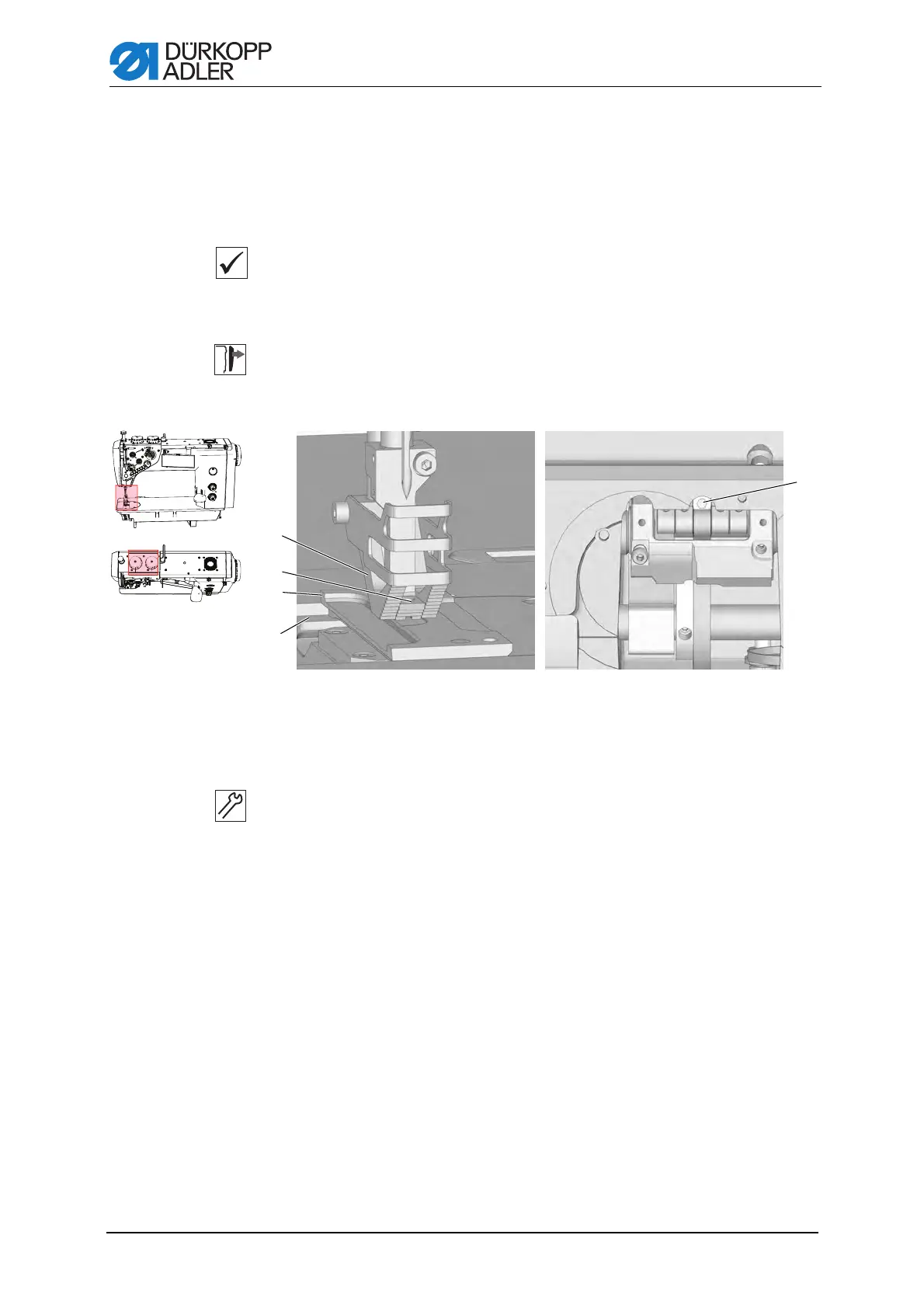

Figure 42: Aligning the feed stroke of the feet
Setting steps
1. Put the handwheel into the 0° position ( page 20).
2. Set the stitch length to 0.
3. Adjust the zero stroke of the feet ( page 59).
4. Loosen the screw (5).
5. Take the plate (3) out of its working position (4), turn it round and place
it under the feet as illustrated so that the sewing foot (2) is 0.3 mm lower
than the presser foot (1).
6. Move both feet manually down to the stop.
7. Tighten the screw (5).
(1) - Presser foot
(2) - Sewing foot
(3) - Plate
(4) - Working position of the plate (3)
(5) - Screw fro the lever for raising the feet
ཱ
ི
ཱི
ུ
