Adjusting the foot stroke
66
Service instructions 967 - 00.0 - 12/2014
12.2 Adjusting the foot stroke generated by the pneumatic
cylinder
Correct setting
The stroke of the presser foot generated by the pneumatic cylinder is
30 mm.

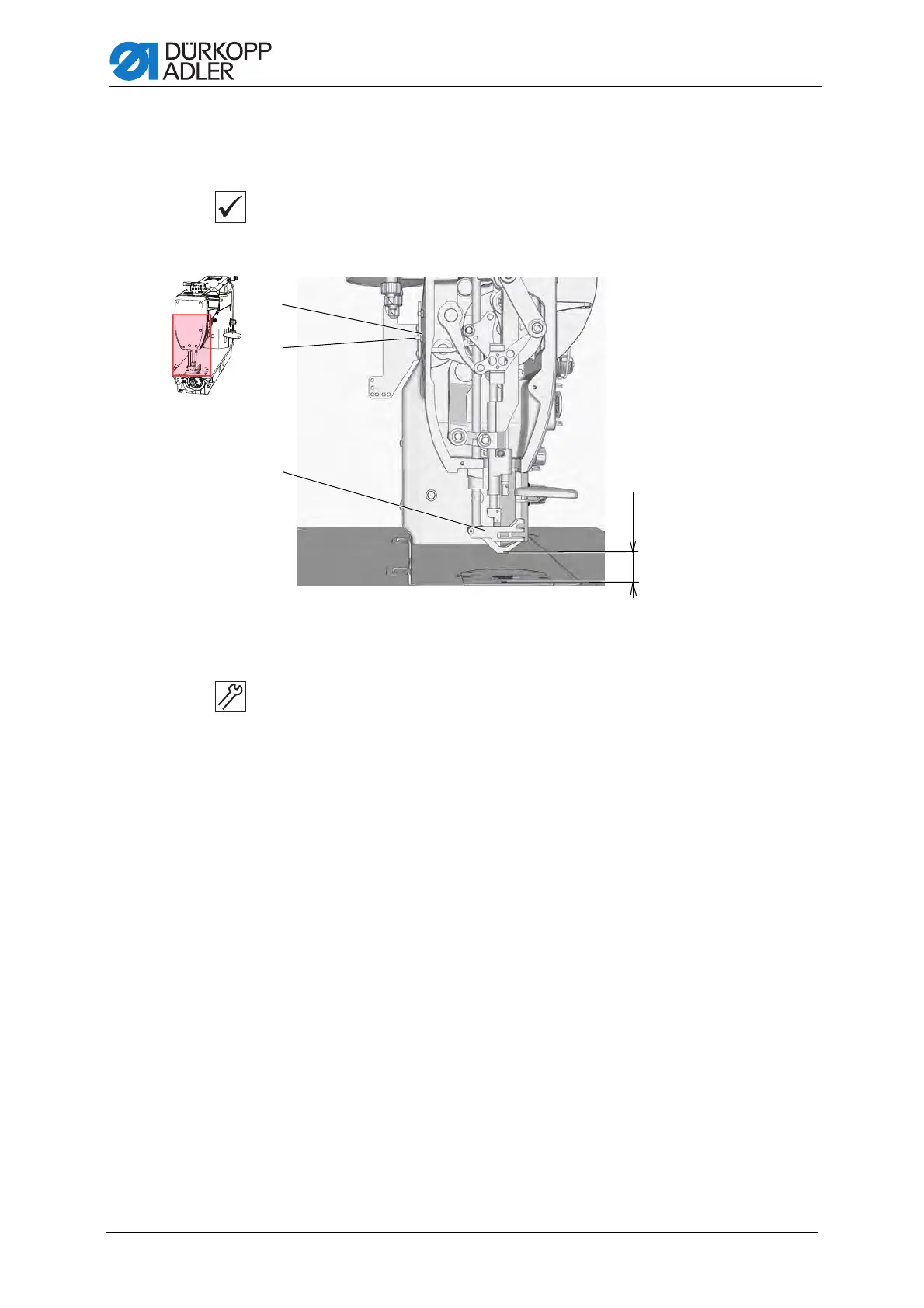

Figure 46: Adjusting the stroke of the feet generated by the pneumatic cylinder
Setting steps
1. Put the handwheel into the 0° position ( page 20). The presser foot
(3) must be lying against the throat plate.
2. Release the locknut (1).
3. Activate the pneumatic lifting of the foot ( see Operating Manual 967).
The presser foot (3) will be lifted.
4. Turn the screw (2) until the height of the presser foot (3) is 30 mm above
the throat plate.
5. Tighten the locknut (1).
(1) - Locknut
(2) - Screw
(3) - Presser foot
30 mm
