Setting the handwheel scale
Service instructions 967 - 00.0 - 12/2014
23
5 Setting the handwheel scale
Correct setting
Lock the machine in place at position 2 ( page 19).
The handwheel must be at position 180°.
Cover
• Removing and refitting the handwheel and drive belt cover
( page 13).

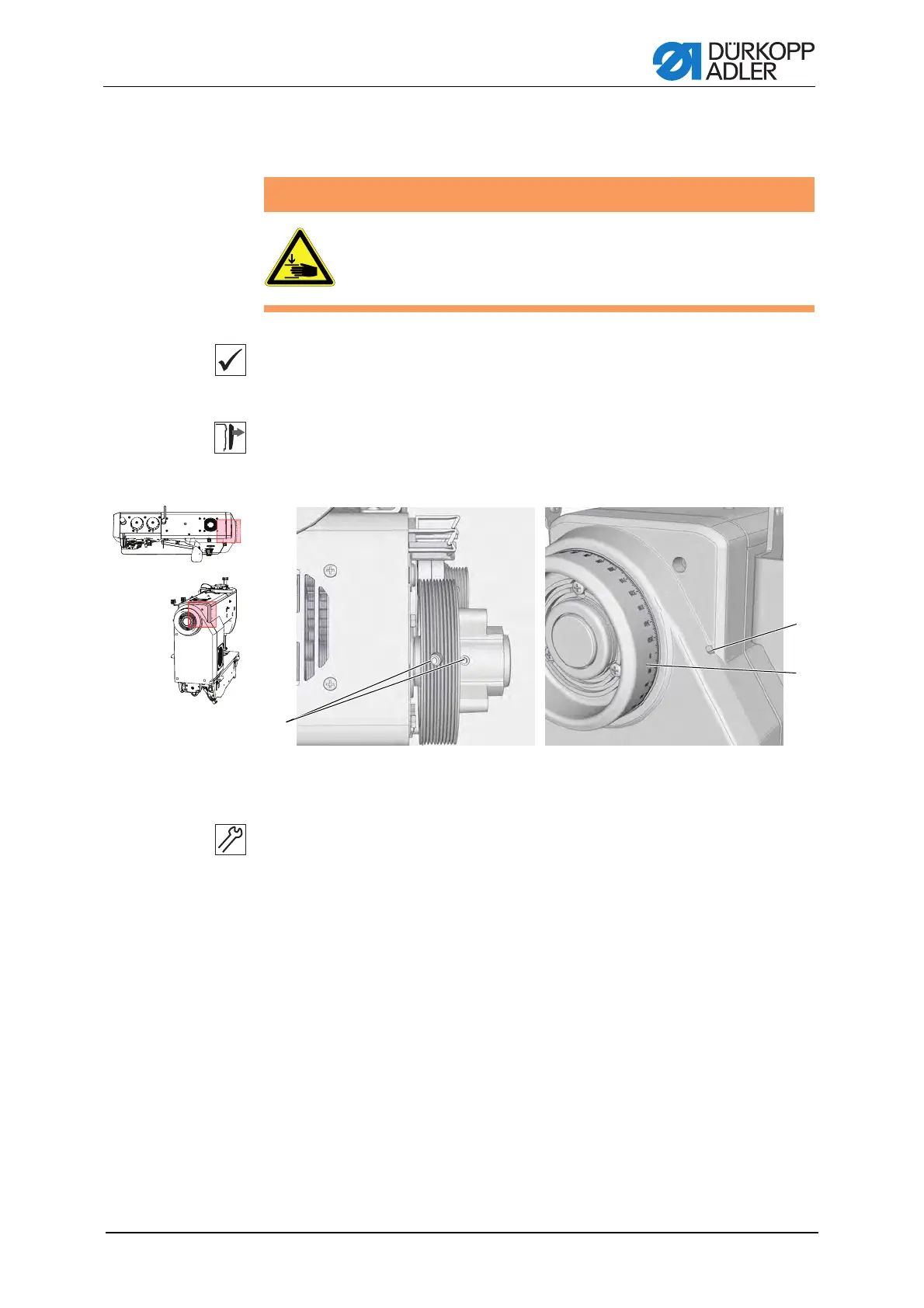

Figure 15: Setting the handwheel scale
Setting steps
1. Removing the drive belt cover and handwheel ( page 13), removing
the ridged drive belt ( page 25).
2. Loosen the screws (1).
3. Fitting the drive belt cover and handwheel.
4. Lock the machine in place at position 2 ( page 19).
5. Set the handwheel (2) to 180° ( page 20).
6. Insert the hexagon wrench through the opening (3) into the set screw,
and tighten it.
7. Removing the drive belt cover and handwheel ( page 13).
8. Tighten the screws (1).
9. Fit the ridged drive belt, drive belt cover and handwheel.
WARNING
Risk of injury
Crushing injuries from moving parts.
Switch the sewing machine off before you check and set the
position of the handwheel on the arm shaft.
(1) - Screws
(2) - Handwheel
(3) - Opening for the wrench
ཱ
ི
