Setting the feed dog
Service instructions 967 - 00.0 - 12/2014
45

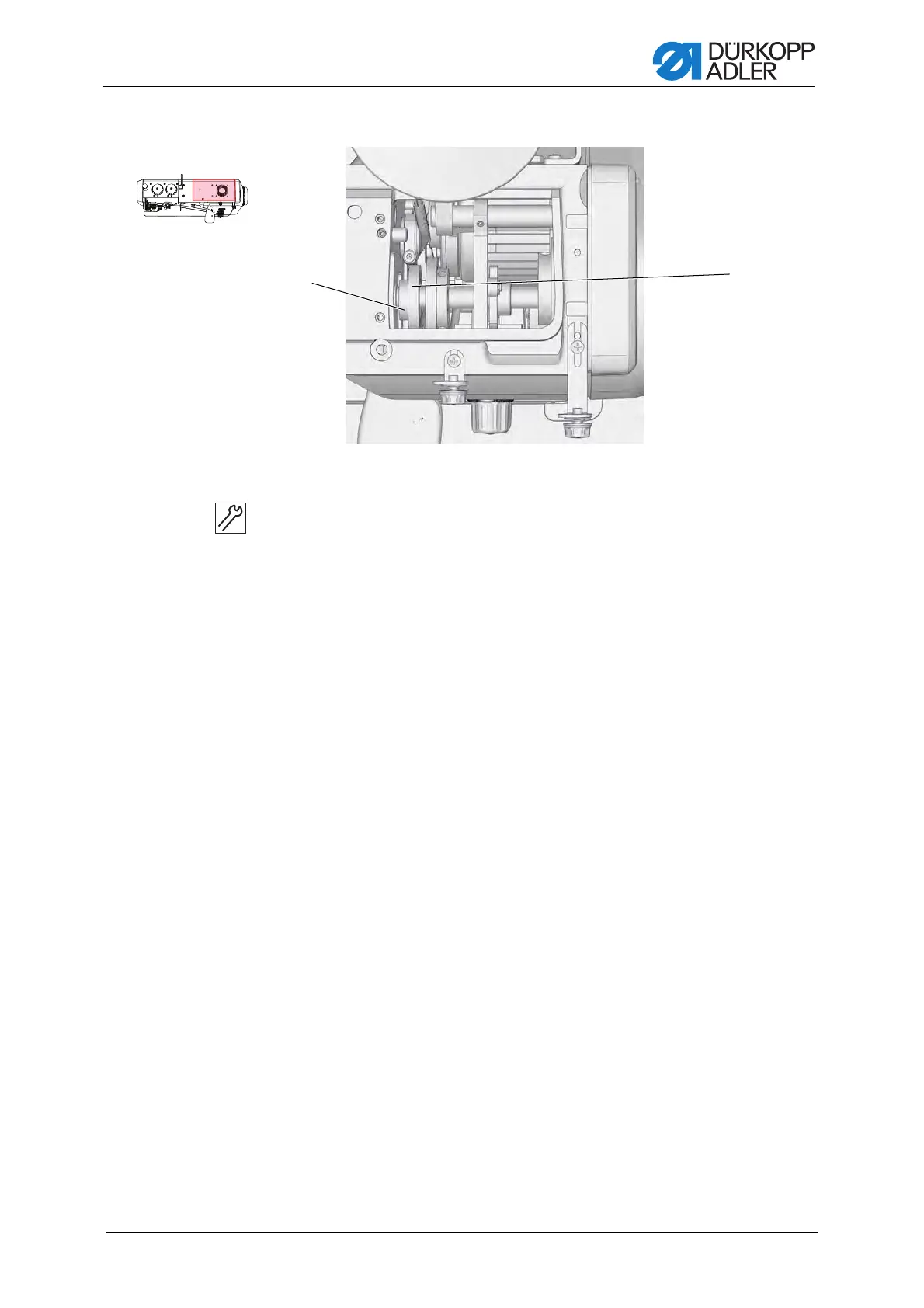

Figure 31: Setting the feed dog stroke
Setting steps
1. Loosen the setscrews (1).
2. Put the handwheel into the 90° position.
3. Turn the stroke eccentric (2) such that the upper edge of the feed dog
when moving upwards is at the same height as the upper edge of the
throat plate.
4. Tighten the setscrews (1).
5. Check that the feed dog has the same height at 90° as it has at 270°; if
necessary, adjust it.
(1) - Setscrews (2) - Stroke eccentric
ཱ
