DURKOPP ADLER 967 Service Instructions

Aligning the needle bar linkage
48
Service instructions 967 - 00.0 - 12/2014

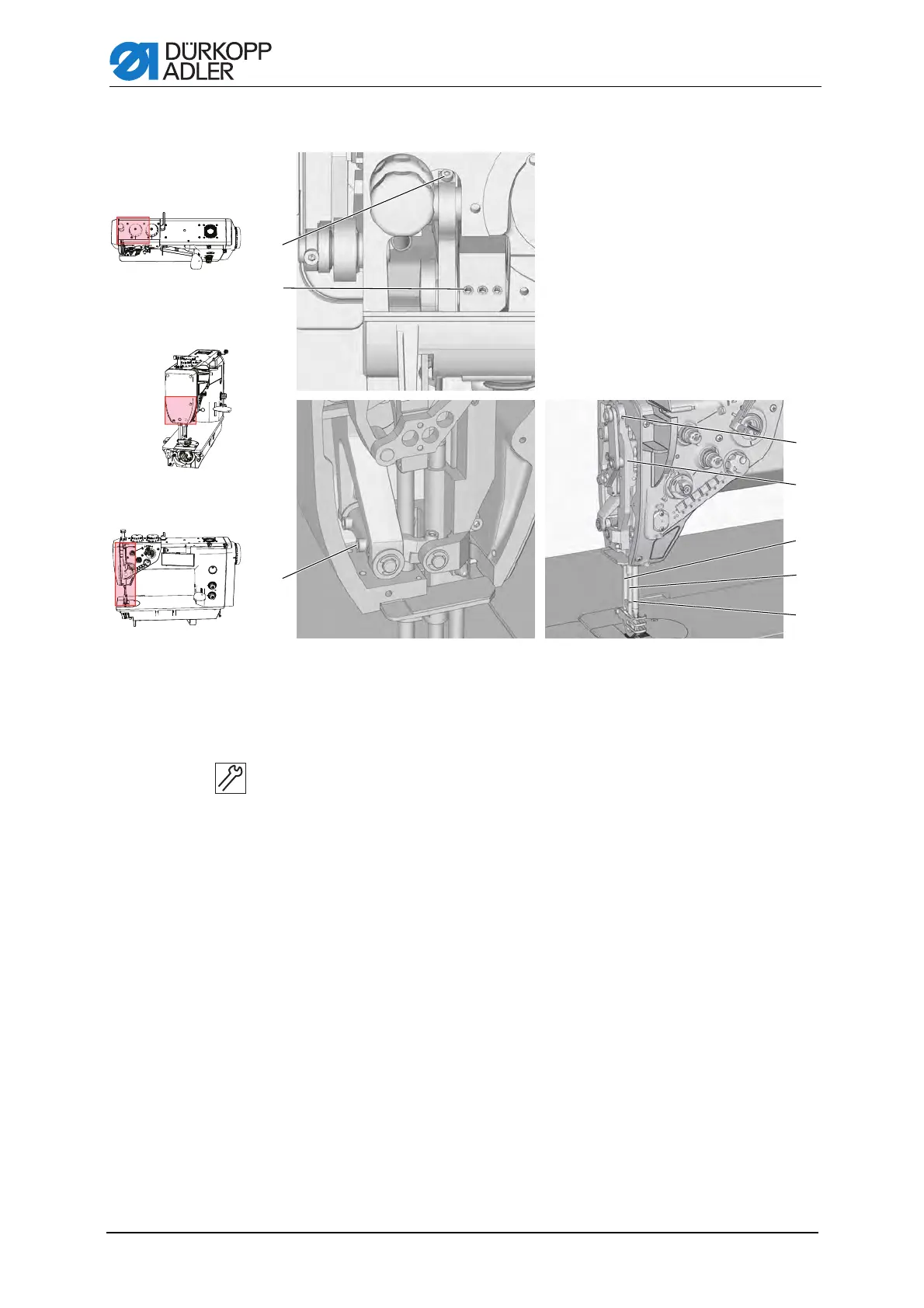

Figure 32: Lateral alignment of the needle bar
Setting steps
1. Set the stitch length to 0.
2. Put the handwheel into the 90° position ( page 20).
3. Loosen the screw (1).
4. Loosen the screws (2).
5. Loosen the screws (3).
6. Loosen the screw (8).
7. Move the needle bar guide (7) laterally so that the needle bar (4), sewing
foot bar (5) and presser foot bar (6) are all in a line.
8. Tighten the screws (1), (2), (3), (8).
(1) - Screw
(2) - Screws
(3) - Screws
(4) - Needle bar
(5) - Sewing foot bar
(6) - Presser foot bar
(7) - Needle bar guide
(8) - Screw
཰
ཱ
ི
ཱི
ུ
ཱུ
ྲྀ
ཷ
