Setting the feed dog
Service Instructions 967 - 02.0 - 12/2015
45
Cover
• Remove the upper right cover ( p. 11)

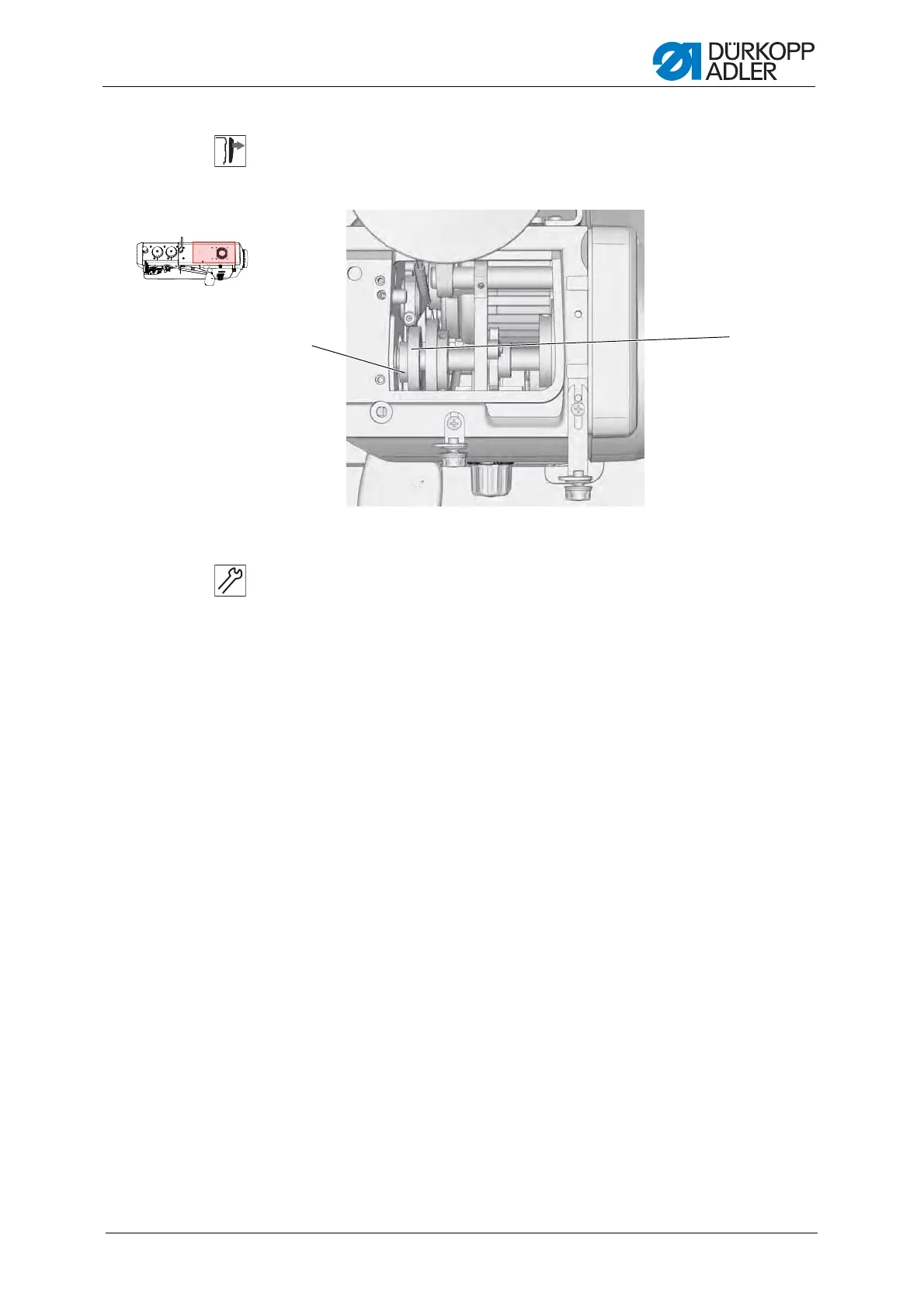

Fig. 31: Setting the feed dog stroke
Setting steps
1. Loosen the setscrews (1).
2
. Put the handwheel into the 90° position.
3. Turn the stroke eccentric (2) such that the upper edge of the feed dog
when moving upwards is at the same height as the upper edge of the
throat plate.
4. Tighten the setscrews (1).
5. Check if the feed dog is at the same height at 90° and 270°; adjust if
necessary.
(1) - Setscrews (2) - Stroke eccentric
