Adjusting the sewing foot feed
Service Instructions 967 - 02.0 - 12/2015
63
For correct feed, the stroke movement for the feeding foot must be aligned
to the stroke movement for the feed dog.
Proper setting
Left adjusting wheel for the sewing foot stroke set to maximum stroke and
t
he upper stitch length adjusting wheel set to 0.
Th
e feeding foot (1) touches down exactly on the feed dog (2) when
the downwards movement of the needle tip (3) reaches the upper
edge of the feeding foot. This will occur when the handwheel is in the
95° position.

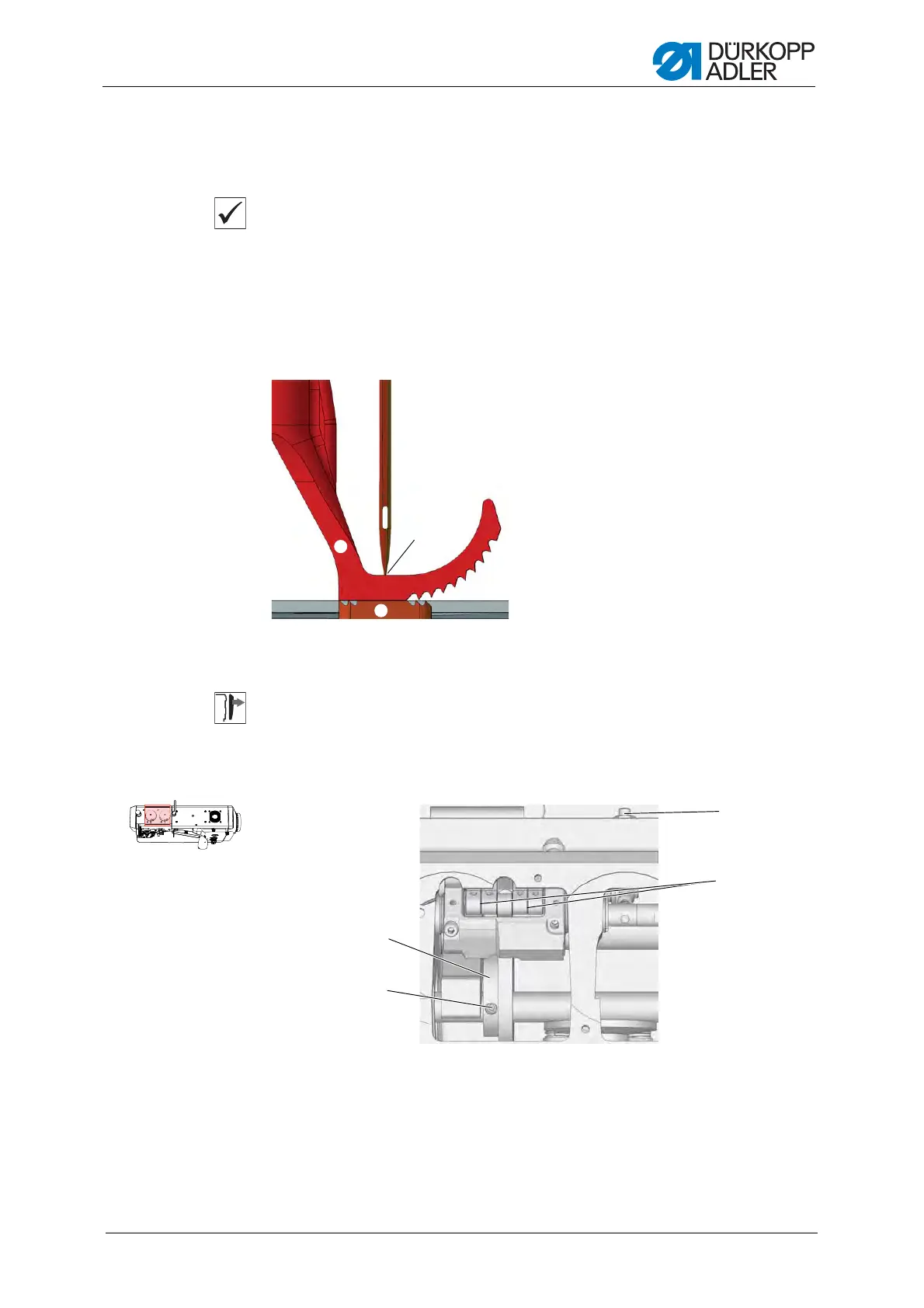

Fig. 44: Stroke movement for the feeding foot and feed dog
Cover
• Arm cover ( p. 11).
Abb. 45: Setting the point in time for when the feeding foot touches down
(1) - Feeding foot
(2) - Feed dog
(3) - Needle tip
(1) - Stroke eccentric
(2) - Setscrews
(3) - Plates
(4) - Setscrew
①
②
③
④
