Maintenance
88
Service Instructions 967 - 02.0 - 12/2015

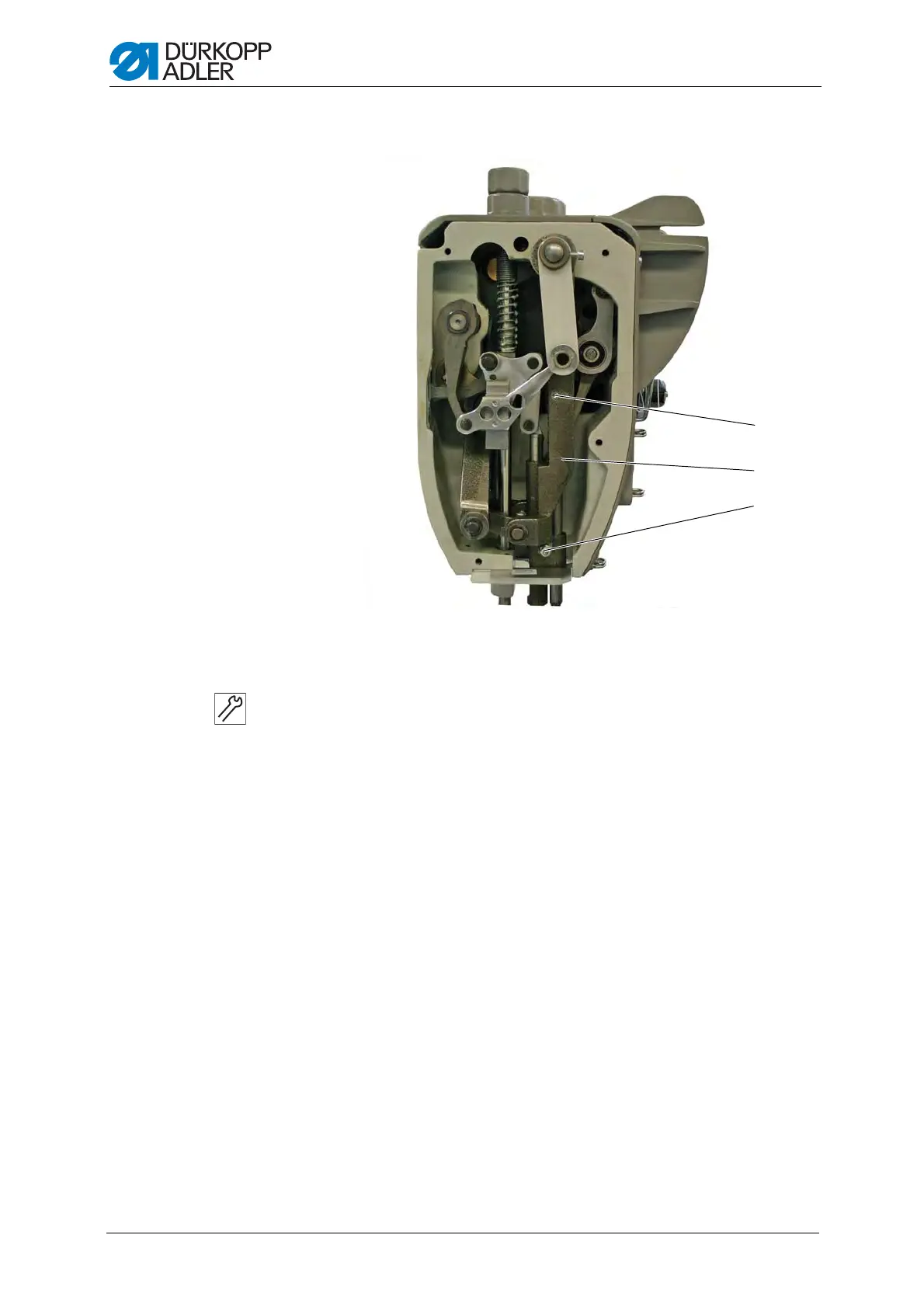

Fig. 60: Lubricating the needle bar
Steps
1. Remove the head cover.
2. Place the grease gun onto the lubricating nipple (1) at the needle bar
frame (2) and keep pressing until the flow of grease stops.
You use the lubricating nipple (1) to lubricate the needle bar and the
feeding bar of the presser foot.
3. Unscrew the setscrew (3) from the needle bar frame (2).
4. Press a small amount of grease into the opening of the setscrew (3) to
lubricate the upper part of the needle bar.
5. Screw the setscrew (3) back in.
6. Install the head cover.
(1) - Lubricating nipple
(2) - Needle bar frame
(3) - Setscrew
