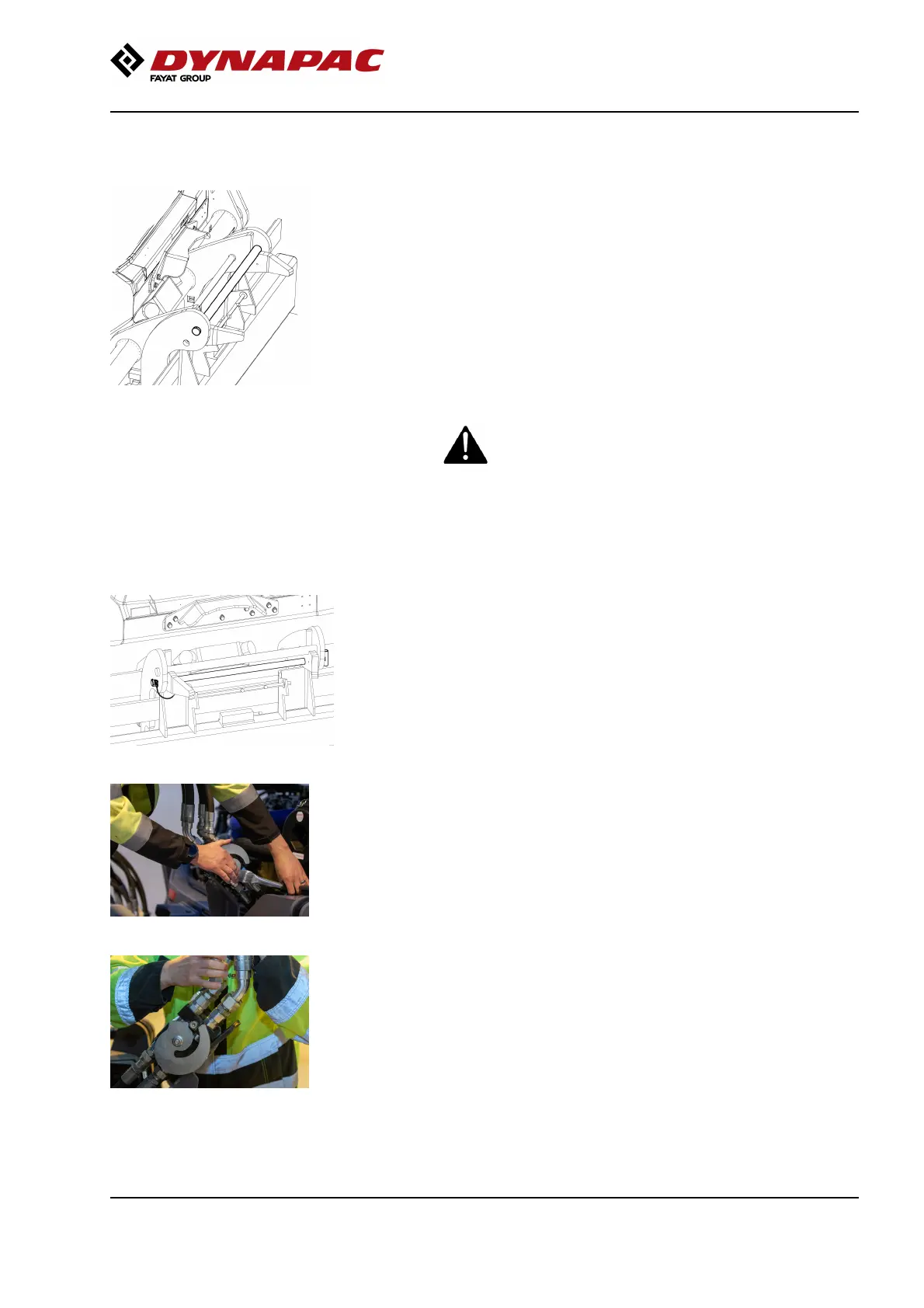

Operation
4812165301.pdf2022-09-02
The correct position has been reached when the
hooks of the lifting arms catch the transverse round
bar (x) and can be fixed in the grooves.
3
Do not operate the machine without assistance from a
second person who is behind the roller and watching
the position of the lifting arms!
When the bar is correctly positioned in the lifting arms,
the parking brake must be engaged and the plates
raised until it is possible to insert the locking bar from
one end.
Make sure that the helper behind the machine is
not on the plates or near the lifting arms when they
are in motion. Crushing hazard!
Make sure that the helper behind the machine is
not on the plates or near the lifting arms when they
are in motion. Crushing hazard!
4
Position the locking bar in the fixing holes on the lifting
arms and then lock the bar with a locking pin on one
end.
5
Open the engine hood of the machine.
Expose the clamping arm to the hydraulic
quick-connector by pressing the red button and then
fold the clamping arm back.
6
Carefully remove any dirt from the contact surfaces of
the quick-connectors on both the roller and on the
packing plates.
Fit the quick-connector halves together.
81
