11. Connection to other devices
11.2 Establishing an Ethernet connection
Searching for the device
Communication\Connection view

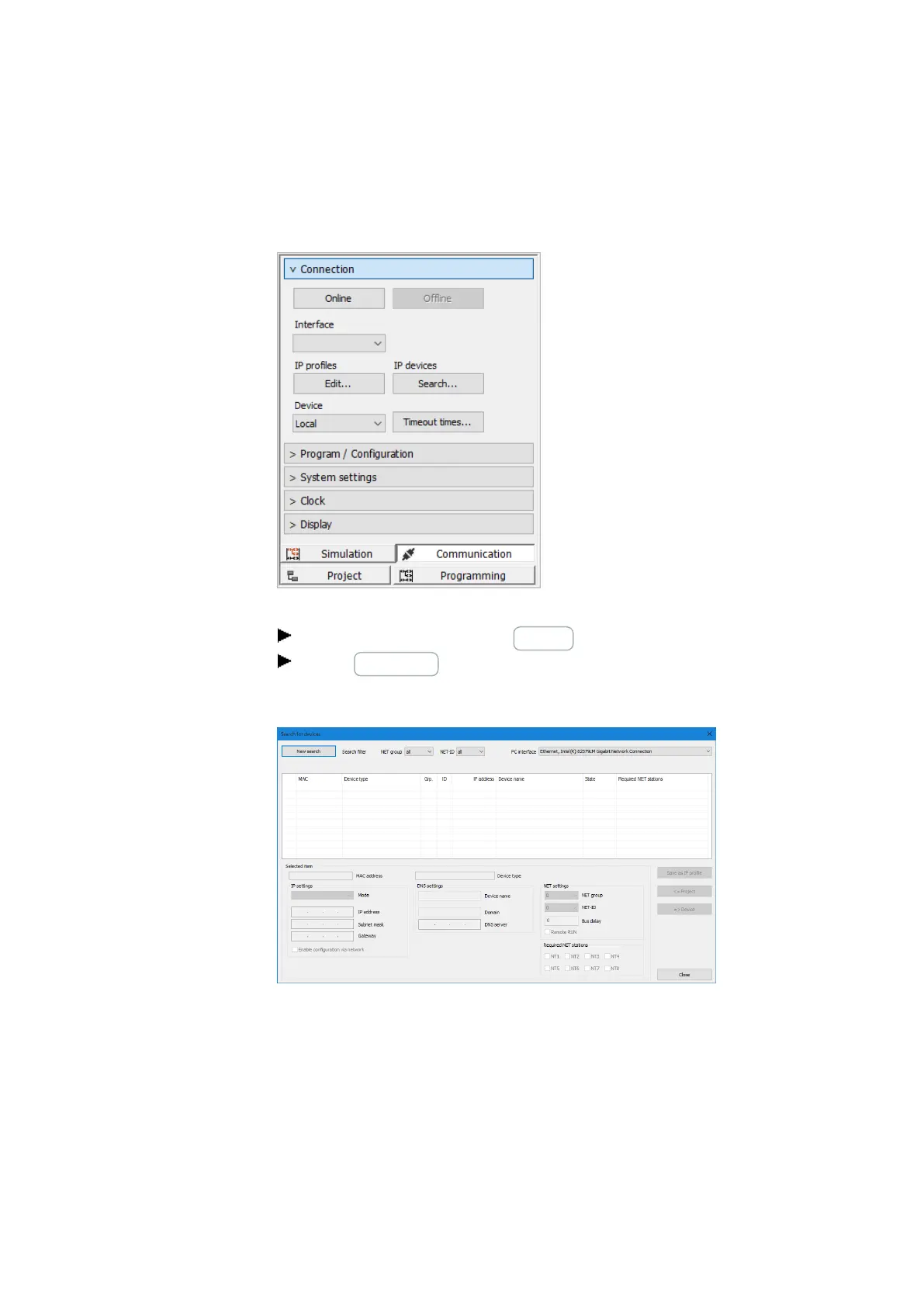

Figure 246: Establish Ethernet connection
Click on Connection/IP profiles/Search... to open the Search for devices dialog box.
Start a New search.
Search for devices dialog box
Figure 247: Search for devices with an IP address
If there is an Ethernet connection, the easyE4 base device will be found and listed in the
table with the corresponding parameters.
Click on the Save as IP profile button to save the IP profile for the found easyE4 base
device.
easyE4 11/18 MN050009 EN www.eaton.com
533
