5. Programming on the device
5.7 Using operands in a program
Example: For a time range of H:M - 00:00 and a resolution of 1 min., entering
<t#3h25m>.

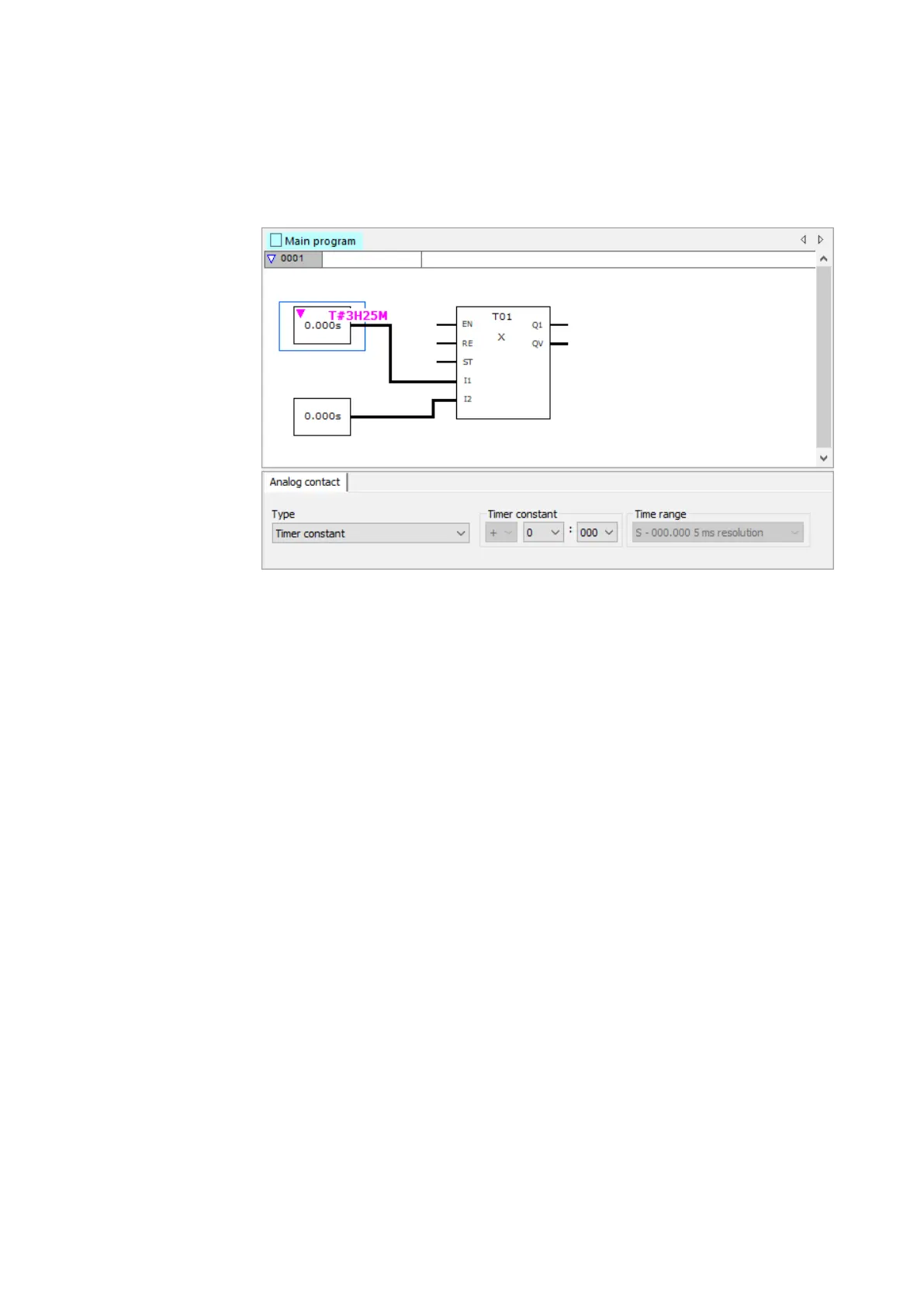

Fig. 123: Programming view: Selected timer constant on function block input I1 and unconfirmed value of
<t#3h25m> entered with the keyboard
Negative times are allowed, but only for timer constants connected to the input of AC
function blocks. In this case, you can enter values within the following range: -
12h00m to +12h00m.
