6. Function blocks
6.1 Manufacturer function blocks
Example 2: Switching at specific times
The time switch is required to switch from Mondays to Fridays between 6:30 and 9:00
and between 17:00 and 22:30.

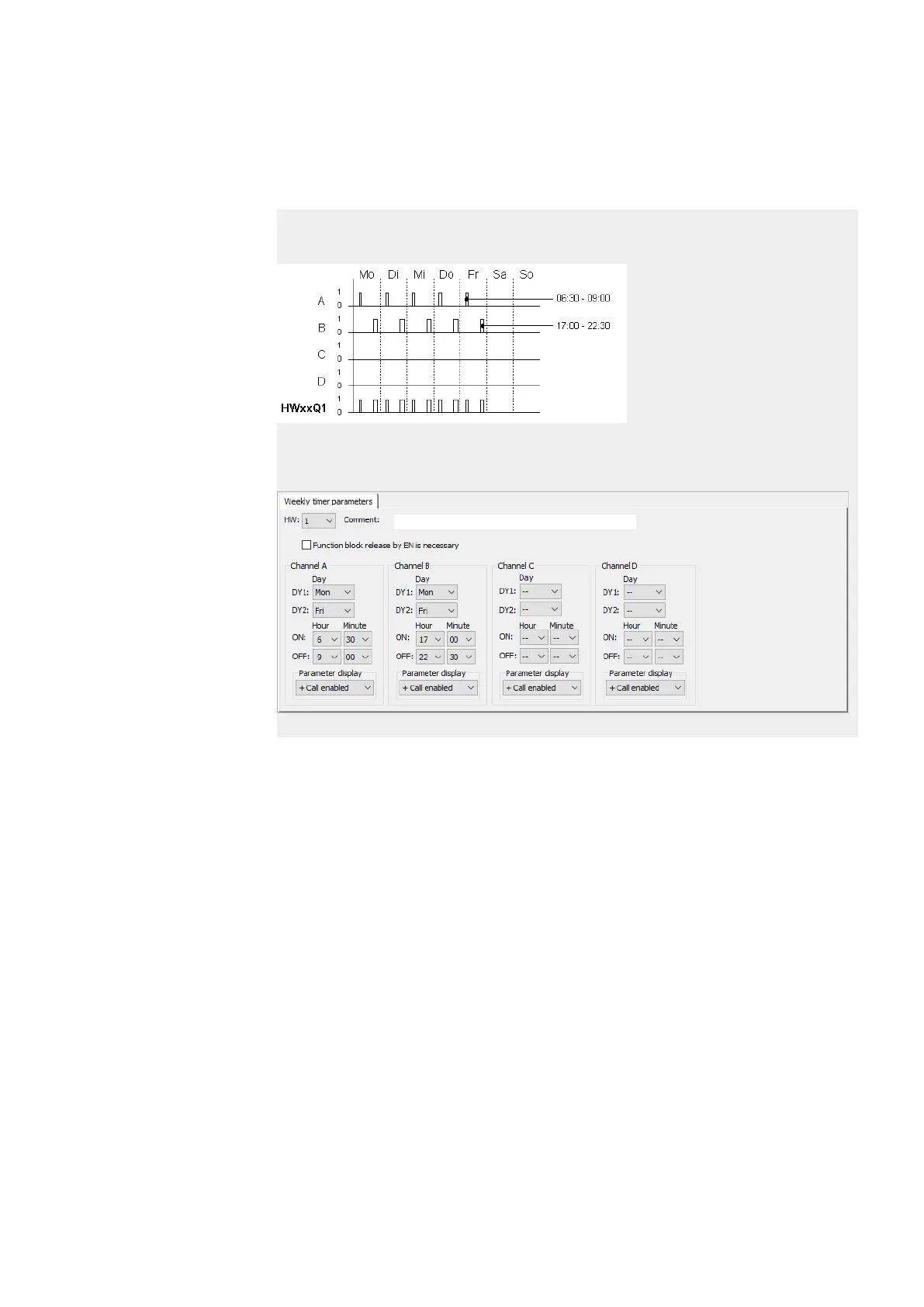

Fig. 127: Signal diagram
The HW time switch must be assigned the following parameters:
Fig. 128: Programming view Weekly timer parameters tab
easyE402/24 MN050009ENEaton.com
249
