Eaton easyE4 User Manual

6. Function blocks
6.1 Manufacturer function blocks
Example 5: 24 hours
The time switch is to switch for 24 hours. On time at 00:00 on Monday and off time at
00:00 on Tuesday.

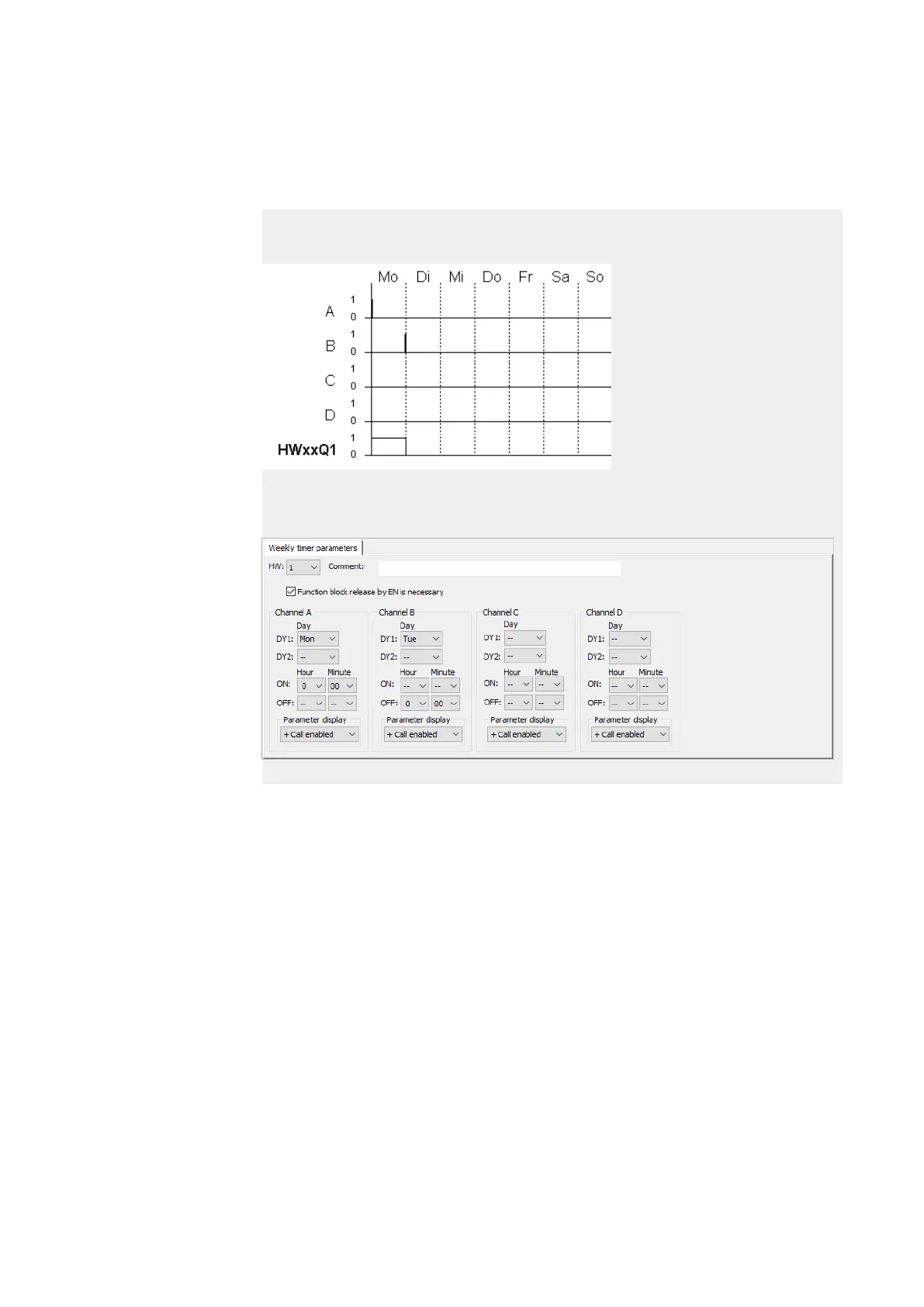

Fig. 133: Signal diagram
The HW time switch must be assigned the following parameters:
Fig. 134: Programming view Weekly timer parameters tab - 24 hours setting
252
