6. Function blocks
6.1 Manufacturer function blocks

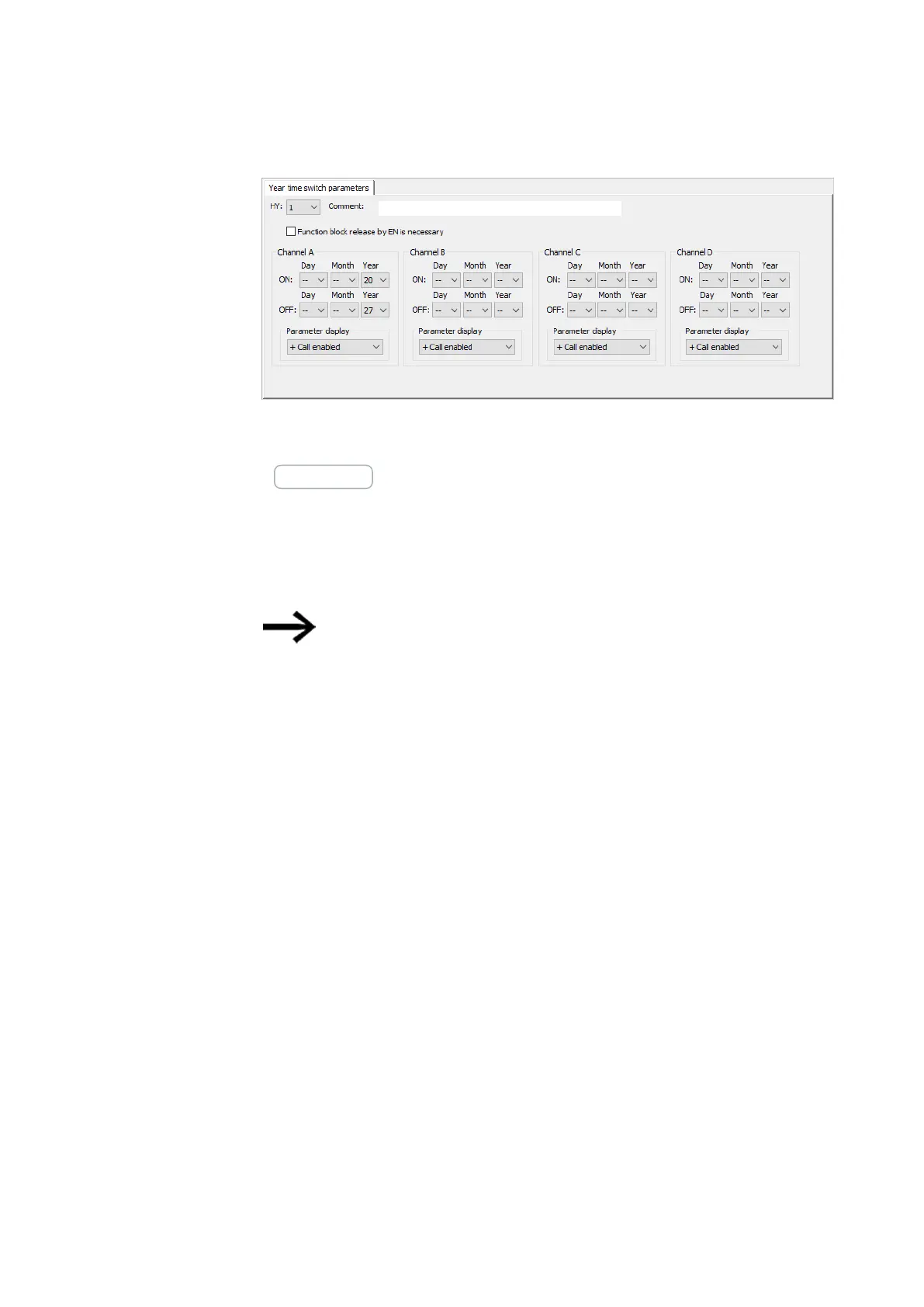

Fig. 136: Year time switch parameters tab with and example in which a year range is being selected
Setting time range parameters
If + Call enabled is selected for the function block under Function block dia-
gram/Parameters/, it will be possible to change the switching times in the
PARAMETER menu on the device while in RUN / STOP mode.
Time ranges are defined by setting an ON and an OFF time.
The contact therefore always switches from ON to OFF, as shown in the following
Parameter examples. → "Example 1: Select year range", page 260 .
Please note:
The year time switch only operates correctly if you observe the following
rules:
l
The On year must be before the Off year,
l
ON and OFF times, the same time parameters must be defined.
Examples of correct time parameter configurations:
l
ON = --/--/Year, OFF = --/--/Year,
l
ON = --/Month/Year, OFF = --/Month/Year,
l
ON = Day/Month/Year, OFF = Day/Month/Year
Setting time range parameters in which the on phase is from the beginning of the
year to the end of the year (whole year(s)):
Channel A
ON: -- -- 22, OFF: -- -- 30 means:
The year time switch should switch on at 00:00 on day 01.01.2022 and switch off when
the OFF year has elapsed at 00:00 on day 01.01.2031. The parameters are set in one
channel. Refer to the → "Example 1: Select year range", page 260 below for this time
range.
258
easyE402/24 MN050009ENEaton.com
