Eaton easyE4 User Manual

6. Function blocks
6.1 Manufacturer function blocks
Other
Retention
The function block does not recognize retentive data.
Examples HY - Year time switch in easySoft 8
Example 1: Select year range
The year time switch HY01 should switch on at 1 January 2020, 00:00 h, and remain
switched on until 1 January 2028, 00:00 h.
The HY year time switch must be assigned the following parameters:
Programming view/HY01/Year time switch parameters tab

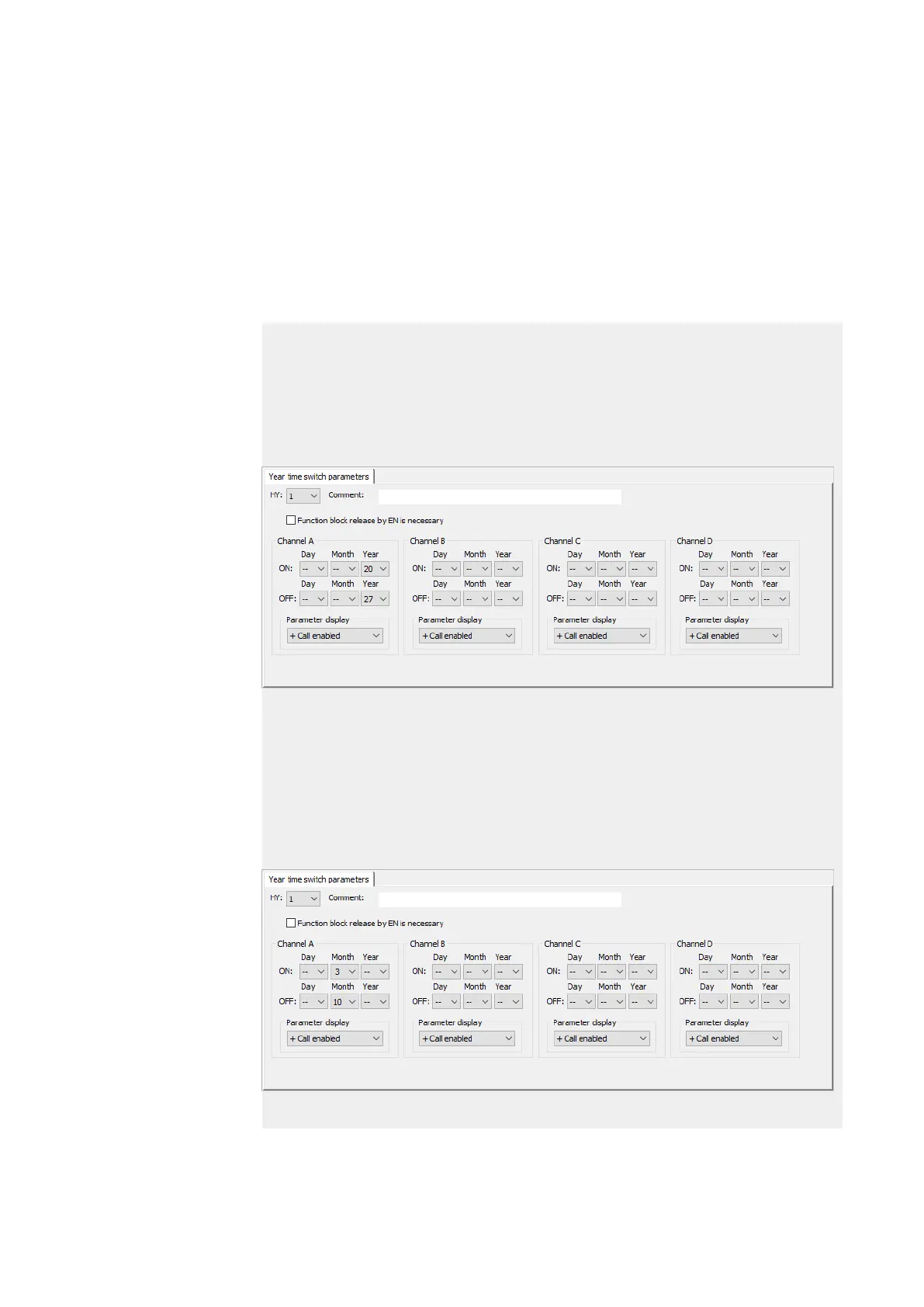

Fig. 137: Entry screen in the programming software
Example 2: Select month ranges
The year time switch HY01 should switch on at 1 March , 00:00 h, and remain
switched on until 1 November, 00:00 h.
The HY year time switch must be assigned the following parameters:
Programming view/HY01/Year time switch parameters tab
Fig. 138: Entry screen in the programming software
260
easyE402/24 MN050009ENEaton.com
