Eaton easyE4 User Manual

6. Function blocks
6.1 Manufacturer function blocks
Example 3: Select day ranges
The year time switch HY01 is required to switch on at 00:00 on day 1 of each month
and switch off at 00:00 on day 29 of each month.
The HY year time switch must be assigned the following parameters:
Programming view/HY01/Year time switch parameters tab

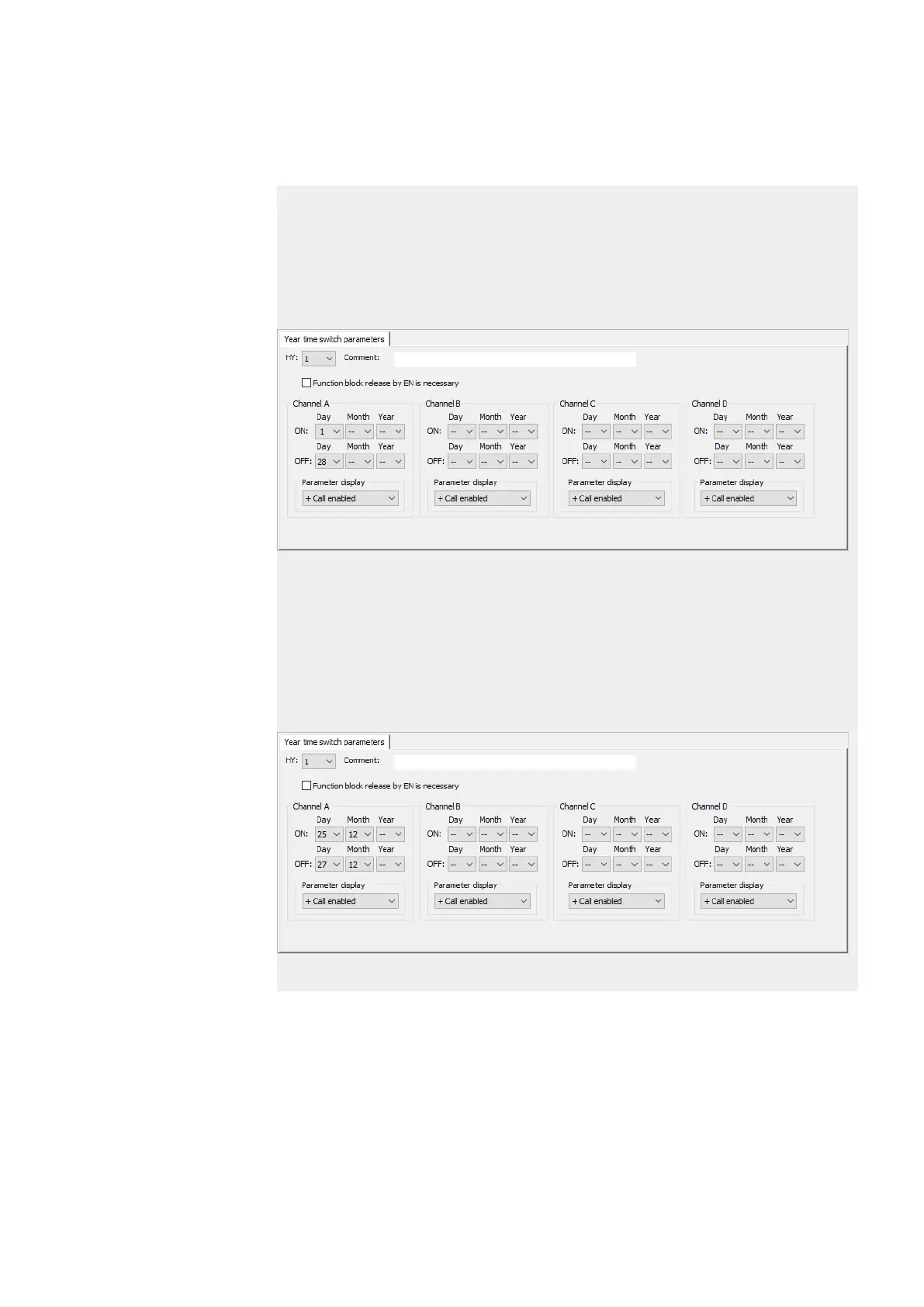

Fig. 139: Entry screen in the programming software
Example 4: Select “public holidays"
The year time switch HY01 is required to switch on at 00:00 on day 25.12 of each year
and switch off at 00:00 on day 28.12 of each year.
The HY year time switch must be assigned the following parameters:
Programming view/HY01/Year time switch parameters tab
Fig. 140: Entry screen in the programming software
easyE402/24 MN050009ENEaton.com
261
