Eaton easyE4 User Manual

6. Function blocks
6.2 Interrupt function blocks
In the main program, markers M512 and M42 are provided to the function block
inputs of function block IE for the next interrupt. The result of the last AND operator is
provided in marker 211.

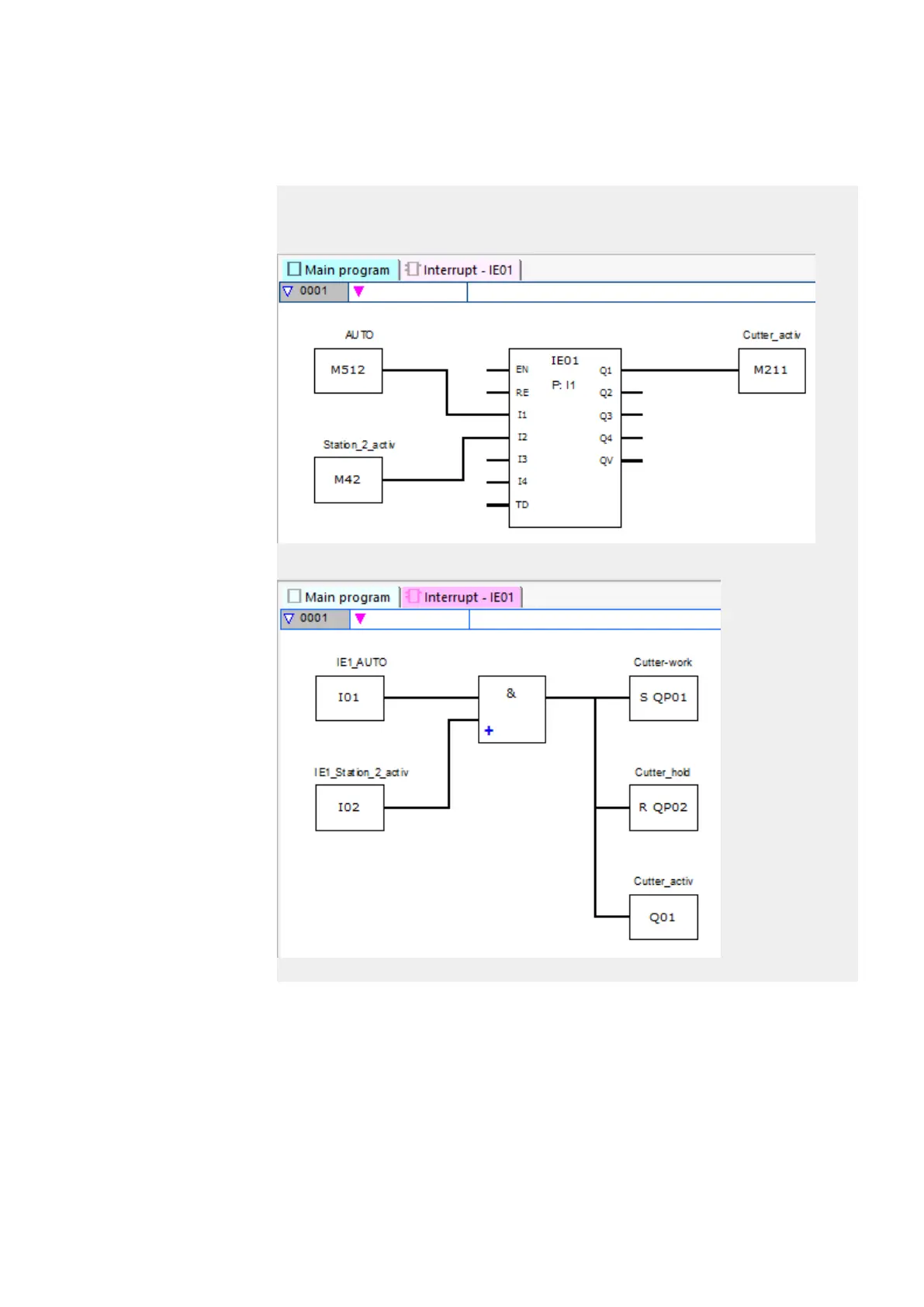

Fig. 266: easySoft 8 Main program Slope
Fig. 267: easySoft 8 Interrupt program Slope
See also
 → Section "IC - Counter-controlled interrupt", page 562
 → Section "IT - Time-controlled interrupt function block", page 580
easyE402/24 MN050009ENEaton.com
579
