8. How easyE4 works internally

8.7 Device easyE4 time responses

Delay time with debounce deactivated

If the debounce option is disabled, the delay time will decrease. If a positive half

wave is detected, the easyE4 device will directly switch the corresponding input (con-

tact) from 0 to 1 (A) internally.

1 1

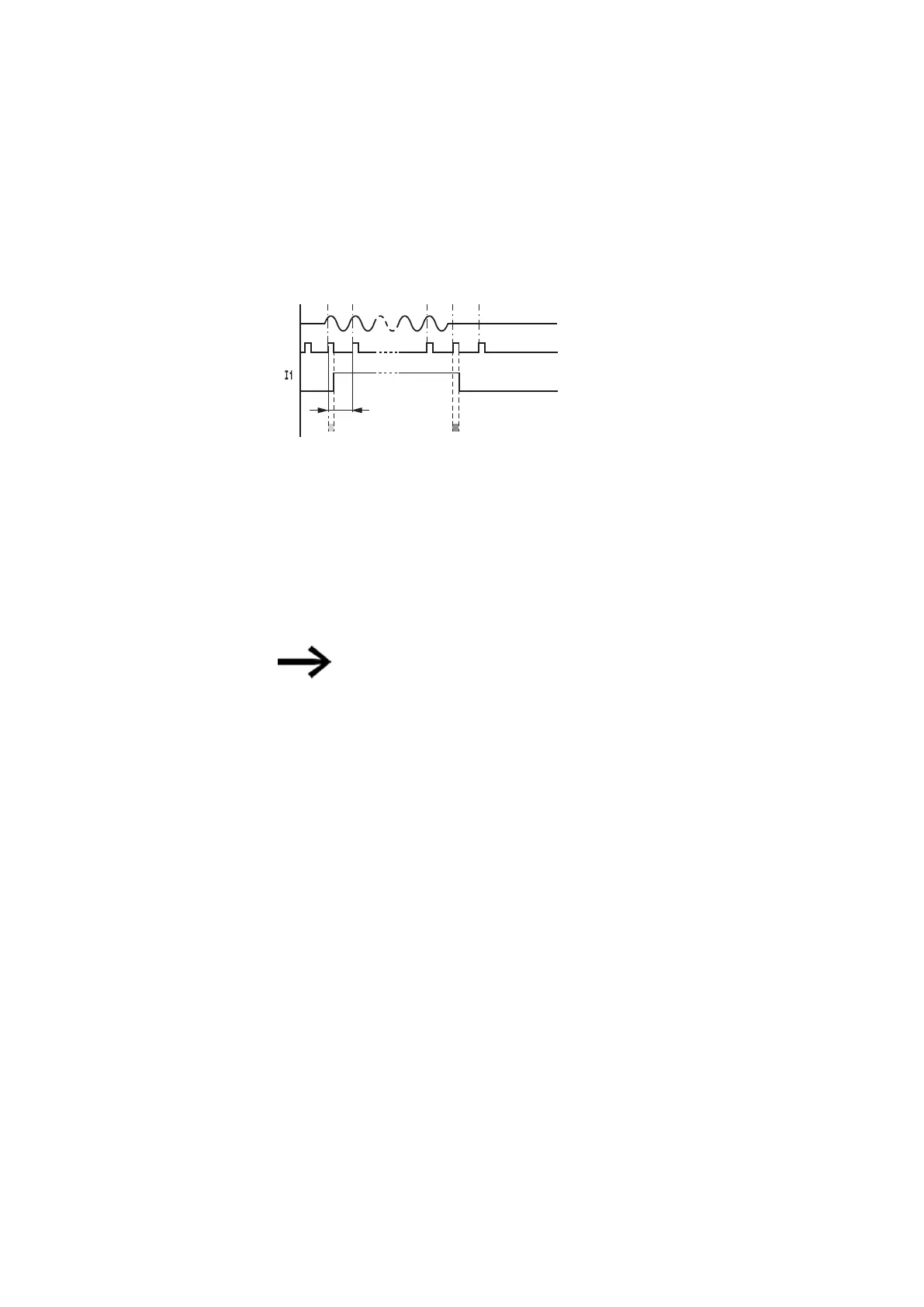

Fig. 310: Switching behavior of AC input signal with DEBOUNCE deactivated

If a positive half-cycle is not detected the easyE4 switches off the contact(B).

l

Switch-on delay (normally):

l

I1 … I8: 25 ms (21 ms)

l

Off-delay (normally):

l

I1 … I8: 25 ms (21 ms)

The appropriate values for 60 Hz are given in brackets.

For more information on how to change the delay times,

please refer to → Section "Time behavior of the inputs and out-

puts", page 661


