8. How easyE4 works internally
8.7 Device easyE4 time responses
8.7.2.2 Delay time for operation with AC power supply
In the case of AC inputs, the easyE4 device will read the input signal every period
with a scan cycle of t
SC
.
The scan cycle depends on the supply frequency.

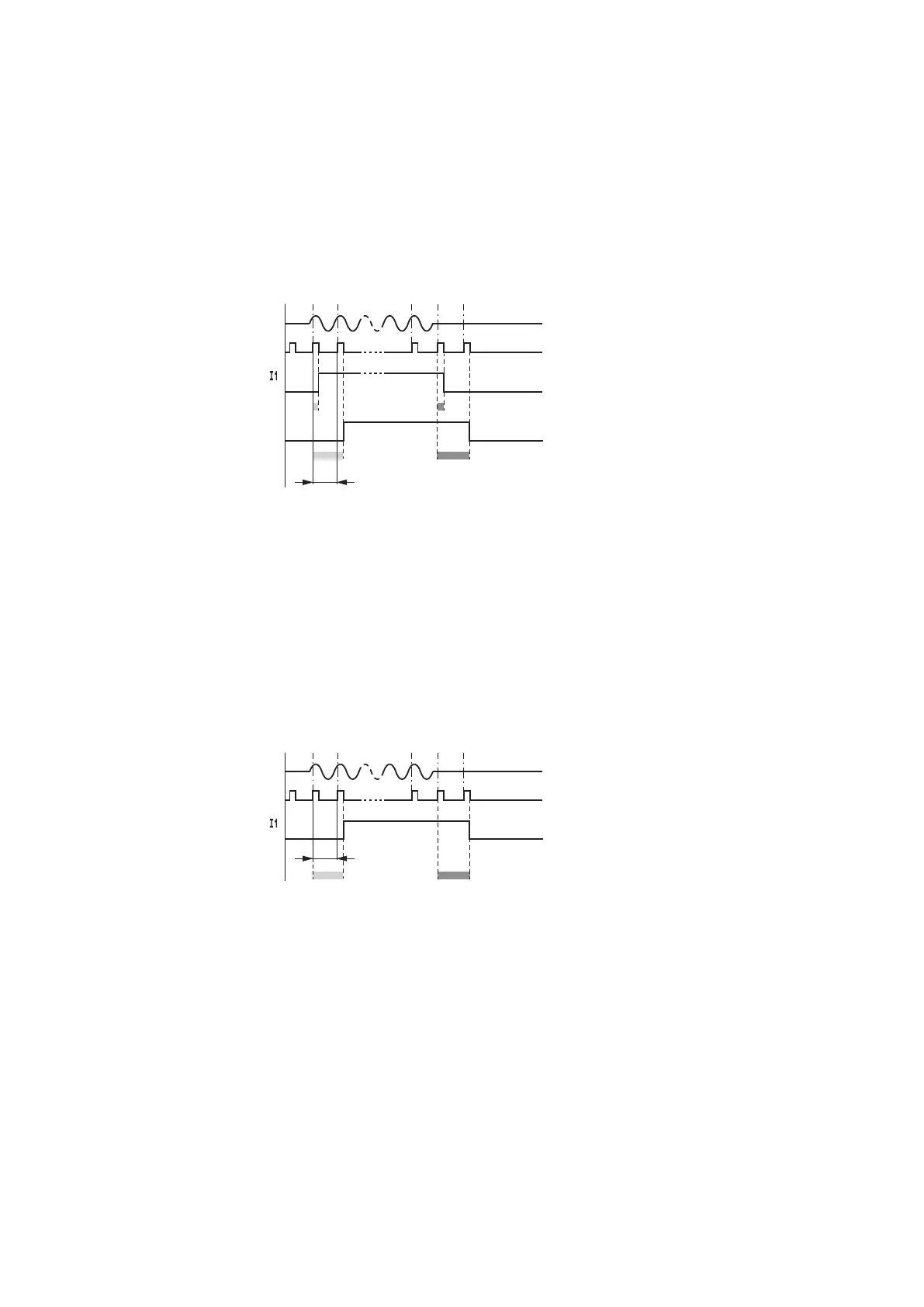

Fig. 308: Delay times for evaluating an AC input signal
without I-DEBOUNCE and
for an activated I-DEBOUNCE
Delay time with debounce activated
If the DEBOUNCE function is activated, the easyE4 device checks each period
whether a positive half-wave is present at an input terminal during two successive
scan cycles t
SC
(1st and 2nd scan pulse at A). If the easyE4 device registers two pos-
itive half waves in succession, it switches the appropriate input (contact) internally
from 0 to 1.
Fig. 309: Switching behavior of AC input signal with DEBOUNCE activated
Accordingly, the typical input delay caused by the debounce option is at least 40 ms
(50 Hz). If applicable, this time must also include the cycle time since a easyE4 device
does not detect the signal until the start of a cycle. Conversely, the input is switched
off if the easyE4 device does not detect any half-cycles twice in succession (1st and
2nd pulse at B).
l
Switch-on delay (normally):
l
I1 … I8: 45 ms (38 ms)
l
Off-delay (normally):
l
I1 … I8: 45 ms (38 ms)
The corresponding values for 60 Hz are given in brackets.
664
easyE402/24 MN050009ENEaton.com
