8. How easyE4 works internally
8.7 Device easyE4 time responses
Delay time with debounce deactivated
When I-DEBOUNCE is deactivated, the delay time (A) for DC signals on the input for
easyE4 base devices is reduced.

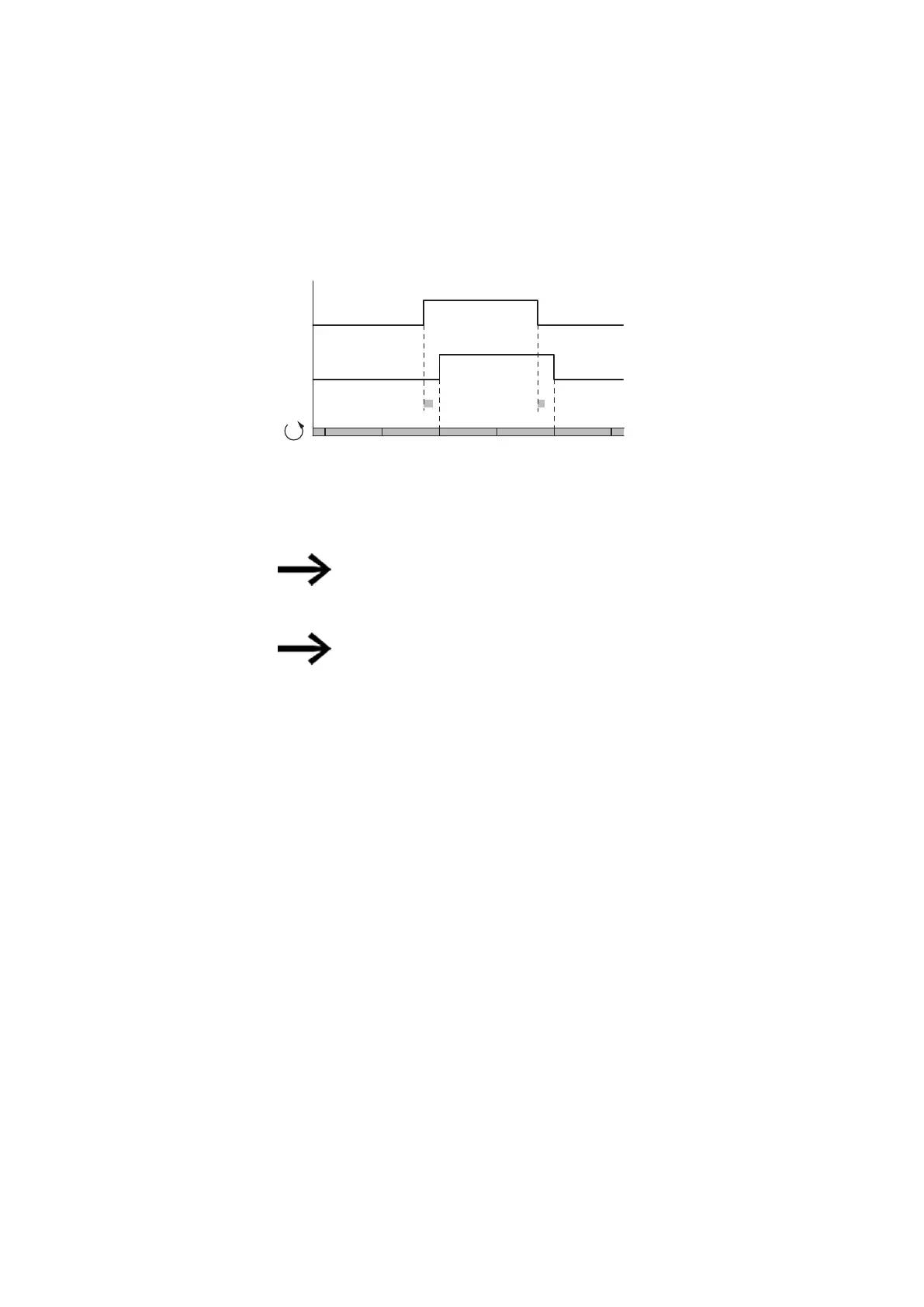

Fig. 307: Switching behavior with debounce deactivated
The times for A and Cdepend on the specific device.
For more information, please refer to the device data sheet → Section "Technical
data", page 825
When debounce is deactivated ensure that input signals are
free of noise. The easyE4 device responds to very short sig-
nals.
To allow reliable recognition and processing of the input sig-
nal in the user program, it must be applied stably for a certain
duration, the length of which depends on the circuit diagram
processing cycle time.
