10. easyE4 communication Connection to other devices
10.12 Setting up a NET group
Project view

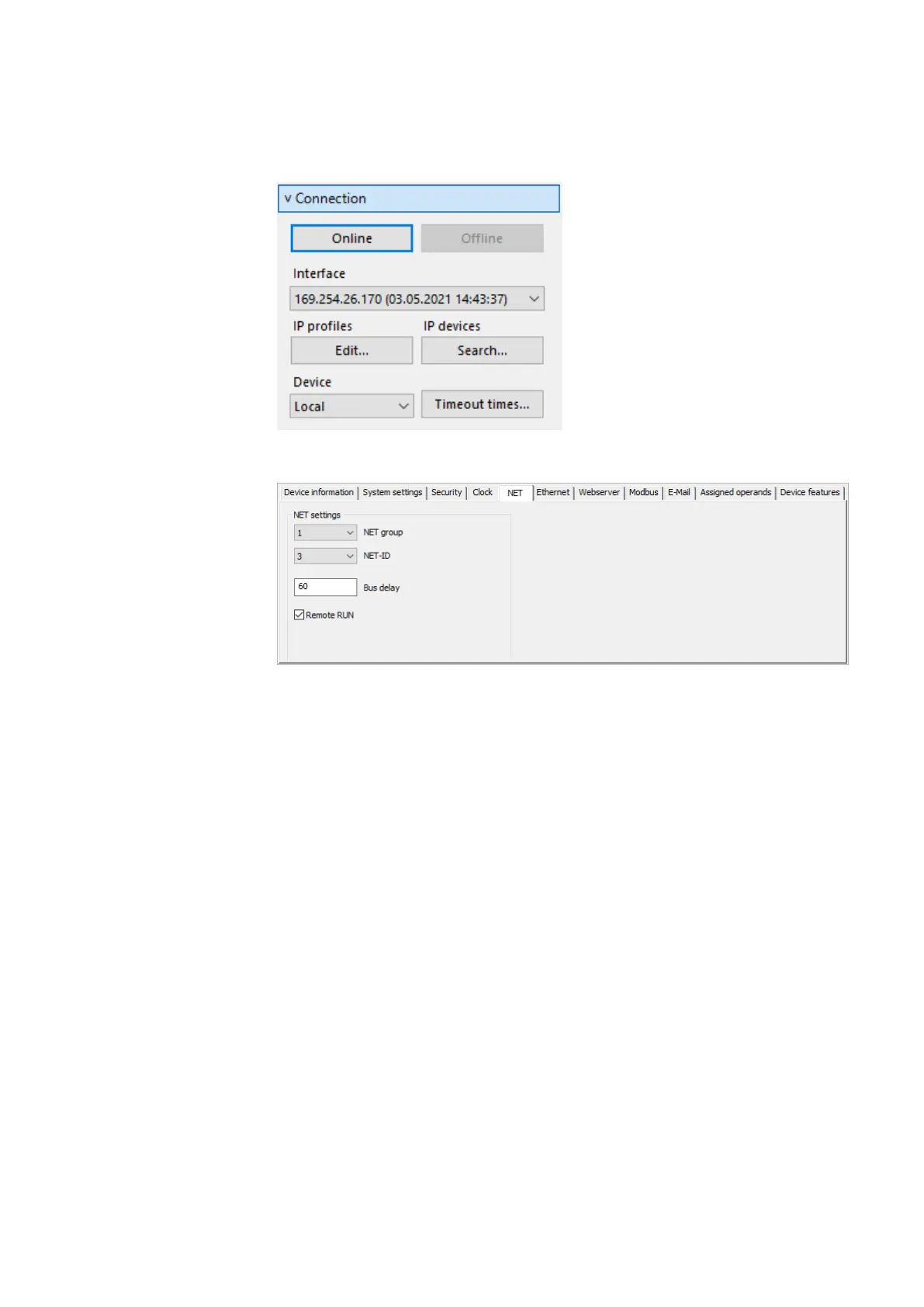

Fig. 319: NET tab for the selected base device in the NET group
NET-GROUP
Used to select the group for the selected base device.
0
Base device running in standalone mode with the relevant I/O expansions (if any),
no NET group
1-10
possible NET-GROUP
NET-ID
Used to assign a group device number from the NET GROUP to the selected base
device.
0
Base device running in standalone mode with the relevant I/O expansions (if any)
1-8
Available device IDs in the NET-GROUP
Remote RUN
If this field is enabled, the NET stations of a group with NET-IDs 02 through 08 will
take their current RUN or STOP operating mode from the NET station with NET-ID 1.
