10. easyE4 communication Connection to other devices
10.16 easy communication modules
Wiring topic
Use shielded twisted pair cables.
Signals B+(D1) and A-(D0) must be connected to twisted pair cables.
The shielding must be connected to the protective earth.
B+
COM
A-
EASY-COM-RTU-...


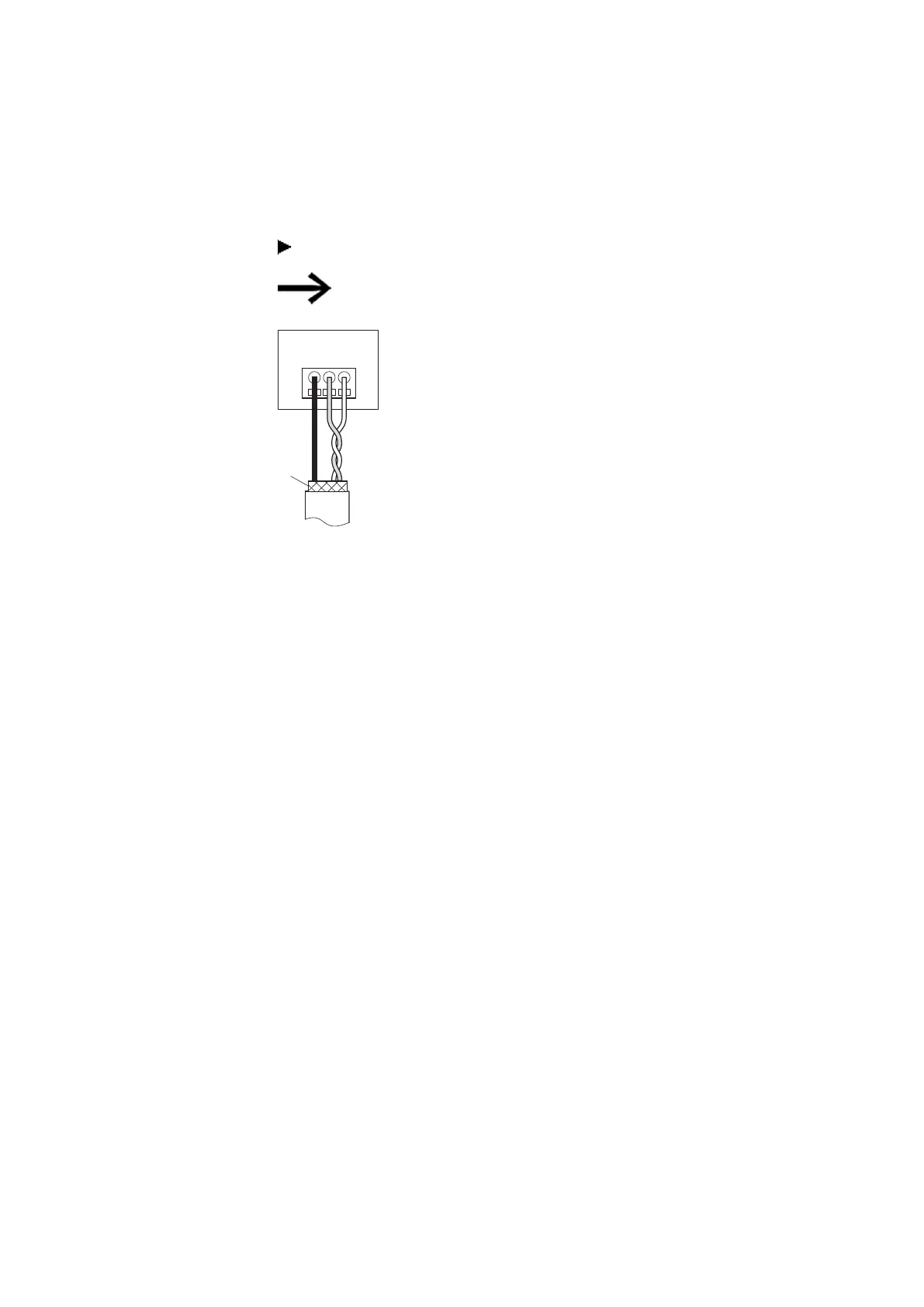

Fig. 347: Connecting EASY-COM-RTU-… outputs
