10. easyE4 communication Connection to other devices
10.18 Convenient visualization for easyE4

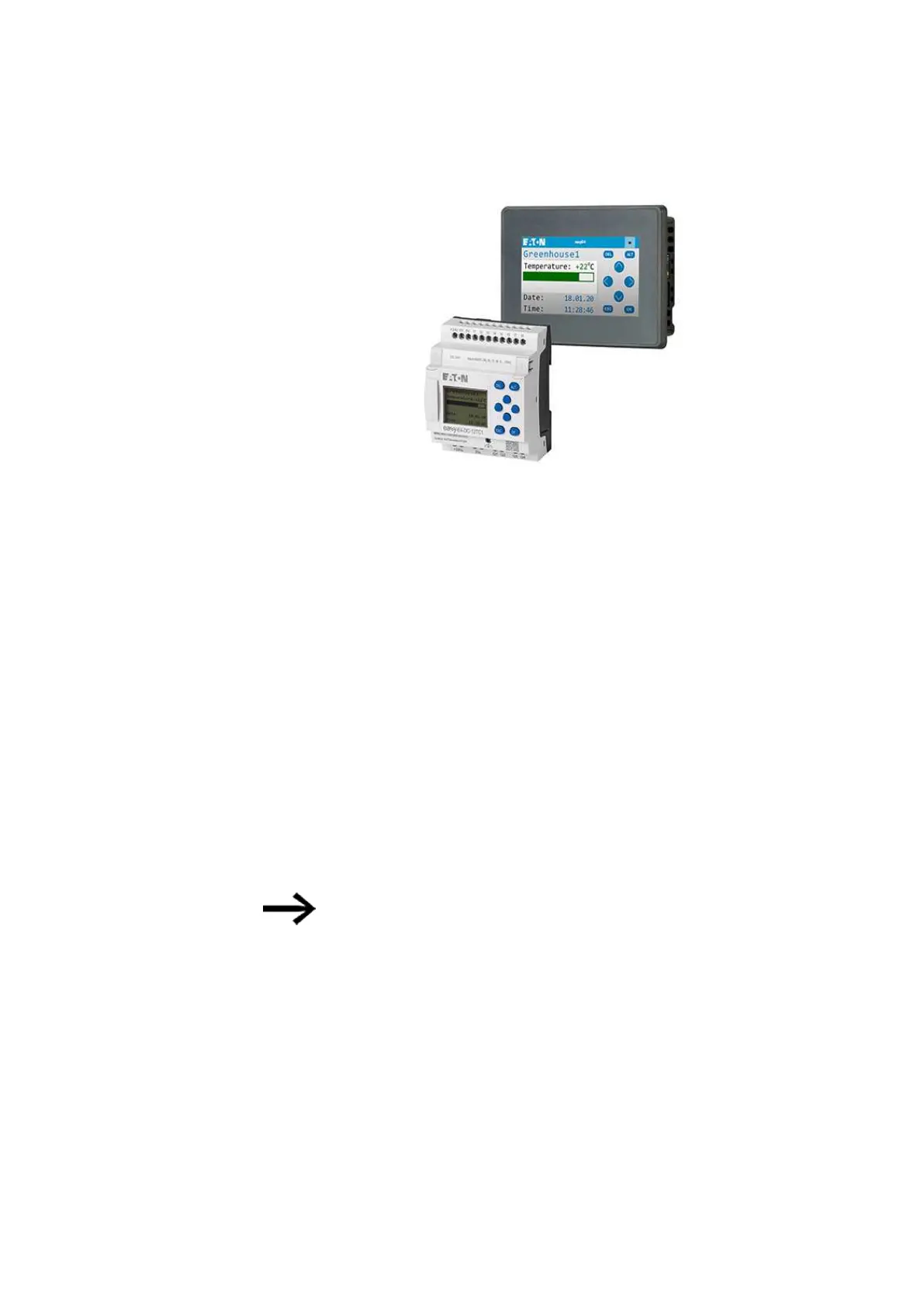

Fig. 361: Mirroring of the easyE4 display on the easyE RTD Standard
easyE RTD Advanced - EASY-RTD-DC-43-03B2-00
The Remote Touch Display Advanced provides a way of obtaining an individual visu-
alization easySoft 8. This enables user-defined texts, graphics and operating ele-
ments to be recorded. It is possible to visualize data from several easyE4 devices at
the same time.
From easySoft 8 it is possible to obtain the visualization using the easySoft editor and
to transmit the visualization project file using Ethernet/easySoft or USB. easySoft 8
supports the use of graphics and other simple visualization elements as well as
remote access to the device menu of the connected easyE4. It is possible to edit
timer function blocks using the easyE RTD Advanced.
In addition to a visualization project file on the easyE RTD Advanced, this visu-
alization requires an easyE4 control relay Generation 08 or higher with firmware≥
V2.10 that supports the visualization.

Only easyE4 control relays from generation 08 with firmware version ≥
2.10 and easySoft version 8.10 support both easy Remote Touch Displays.
Up until generation 07, only the easyE RTD Standard was supported.
For more information, please consult the "easy Remote Touchdisplay" manual,
MN048027.

