10. easyE4 communication Connection to other devices
10.18 Convenient visualization for easyE4
10.18.2 HMI Touchdisplays
The HMIs and the GALILEO visualization software can be used to show contents from
connected easyE4 control relays on the color display panels and operate them
remotely and externally.

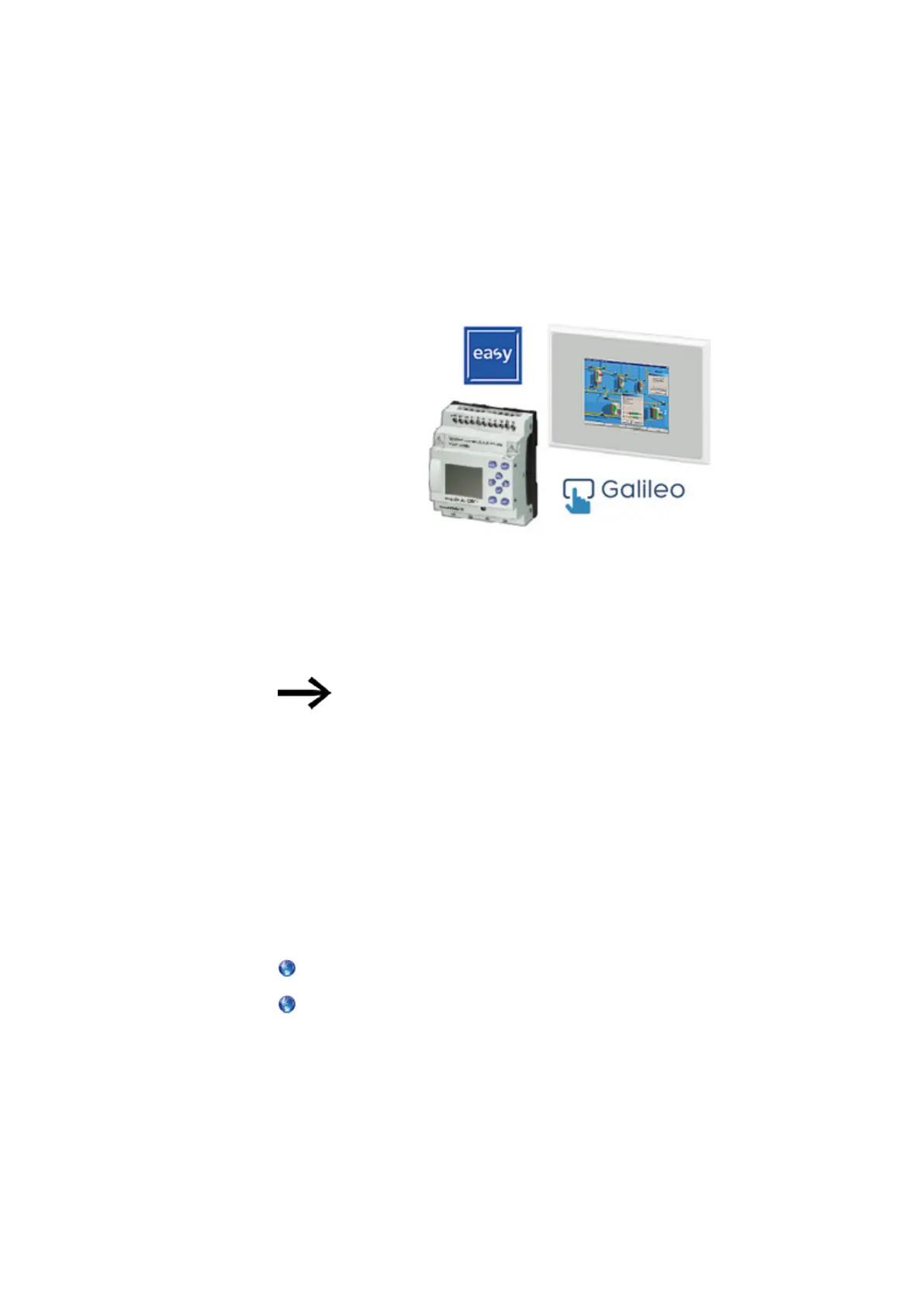

Fig. 362: Visualization on HMI operating terminal
Data is exchanged between the devices using GALILEO's internal tag import format
(*.itf). easySoft 8 supports this export format for Modbus TCP..
Communication between EASY-E4-... and HMI touch displays happens via Modbus
TCP.
For GALILEO users
It is advisable not to configure the system time cyclically.
Accordingly, Eaton recommends not setting bit 11.1 in the 1st word of the
Control system tag permanently.

An overview of the available displays is listed under Accessories.
→ Section "Accessory devices", page 826
For more information on how to connect the controller, please refer to the tutorials
and the various documents → Section "Additional information for use", page 835.
For additional product information, as well as access to the software demo version,
please visit the product page.
Eaton.com/easy
Eaton.com/galileo

