Eaton easyE4 User Manual

Appendix
A.1 Dimensions
Base devices with 4 space unit front dimension
EASY-E4-UC-12RCX1(P), EASY-E4-DC-12TCX1(P), EASY-E4-DC-12TCX1(P)
45 mm (1.77")
4.5 mm (0.18")
48.5 mm
(1 .91")
56.5 mm (2.22")
59.6 mm (2.35")
10.75 mm
(0.42")
35.75 mm (1.41")
71.5 mm (2.81")
90 mm (3.54")
101 mm (3.97")
111 mm (4.37")
M4,5
50 mm (1.97")
1 mm (0.04
")

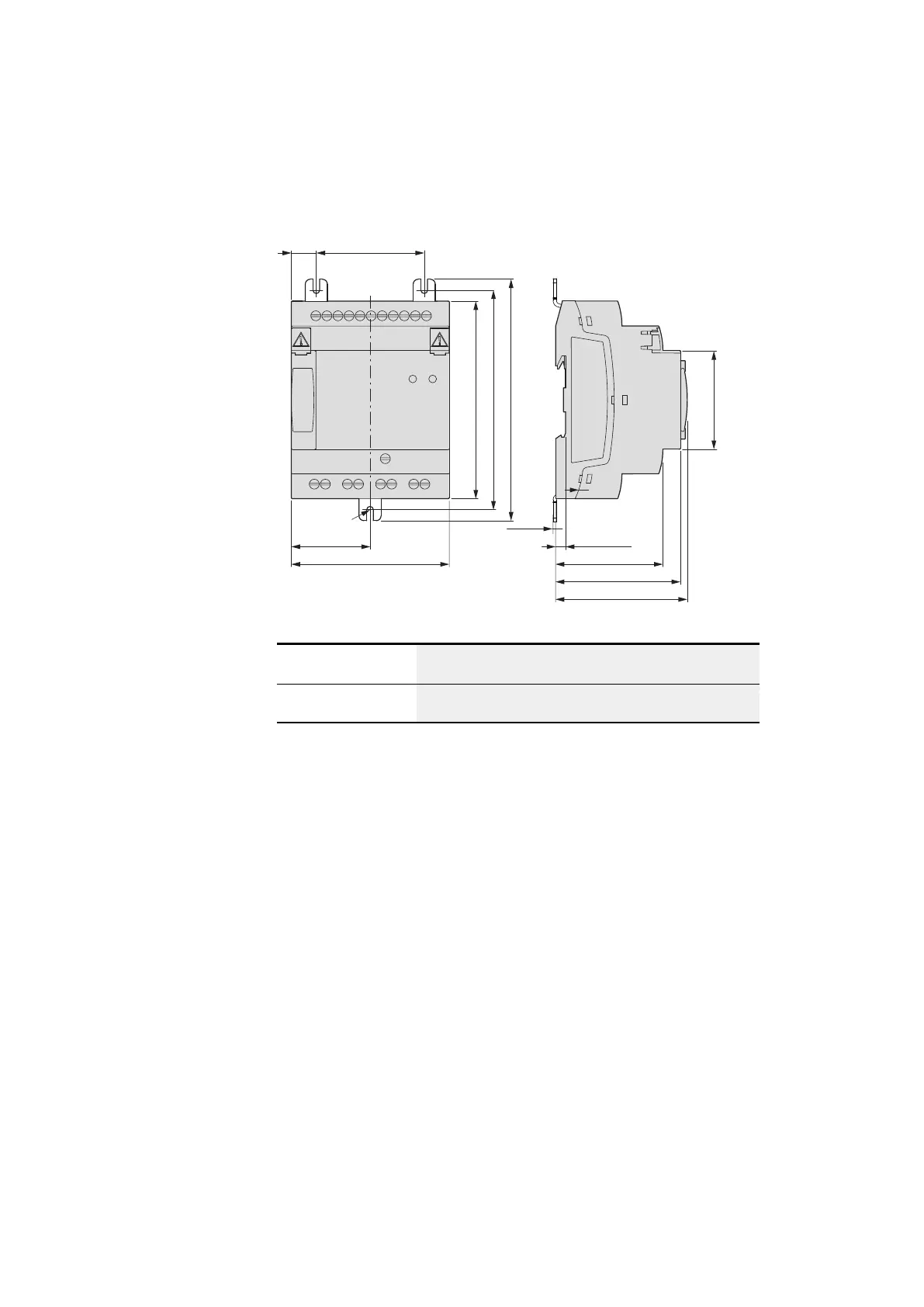

Fig. 365: Dimensions in mm (Inch) Base devices EASY-E4-...-12...CX1(P)
Width x Height x Depth
(without plug)
71.5 mm x 90 mm x 58 mm (2.81" x 3.54" x 2.28")
Weight
Please refer to the device data sheet
varies between 139 g and 230 g depending on the specific model
