Eaton easyE4 User Manual

Appendix
A.1 Dimensions
Expansion devices with 4 space unit front dimension
EASY-E4-UC-16RE1(P),EASY-E4-DC-16TE1(P), EASY-E4-AC-16RE1(P),
71.5 mm (2.81")
45 mm (1.77")
4.5 mm (0.18")
48.5 mm
(1 .91")
56.5 mm (2.22")
57.6 mm (2.27")
10.75 mm
(0.42")
35.75 mm (1.41")
80.3 mm (3.16")
90 mm (3.54")
M 4,5
50 mm (1.97")
101 mm (3.97")
111 mm (4.37")

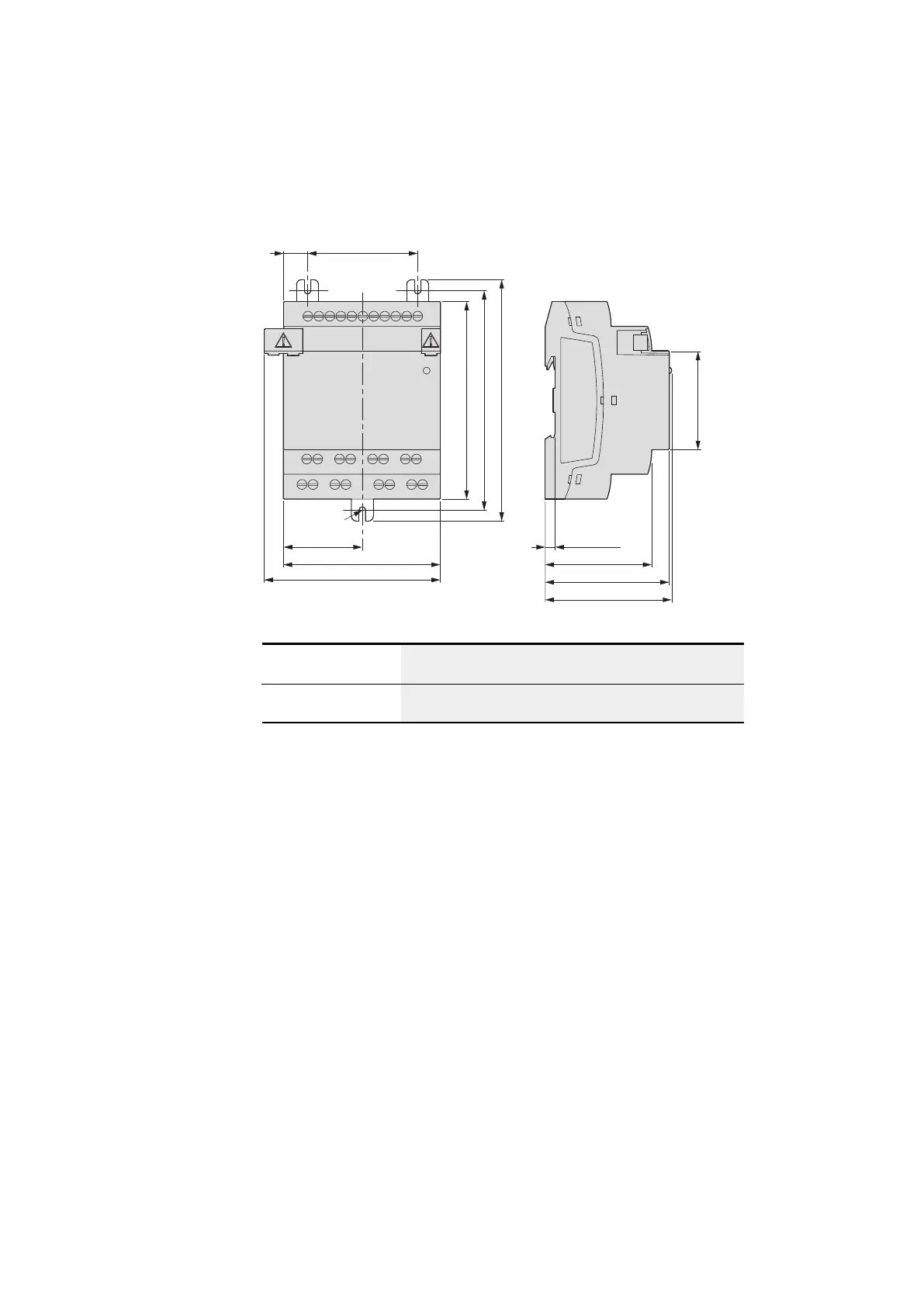

Fig. 366: Dimensions in mm (Inch) extensions 4SU
Width x Height x Depth
(without plug)
71.5 mm x 90 mm x 58 mm (2.81" x 3.54" x 2.28")
Weight
Please refer to the device data sheet
varies between 139 g and 230 g depending on the specific model
