Eaton easyE4 User Manual

Appendix

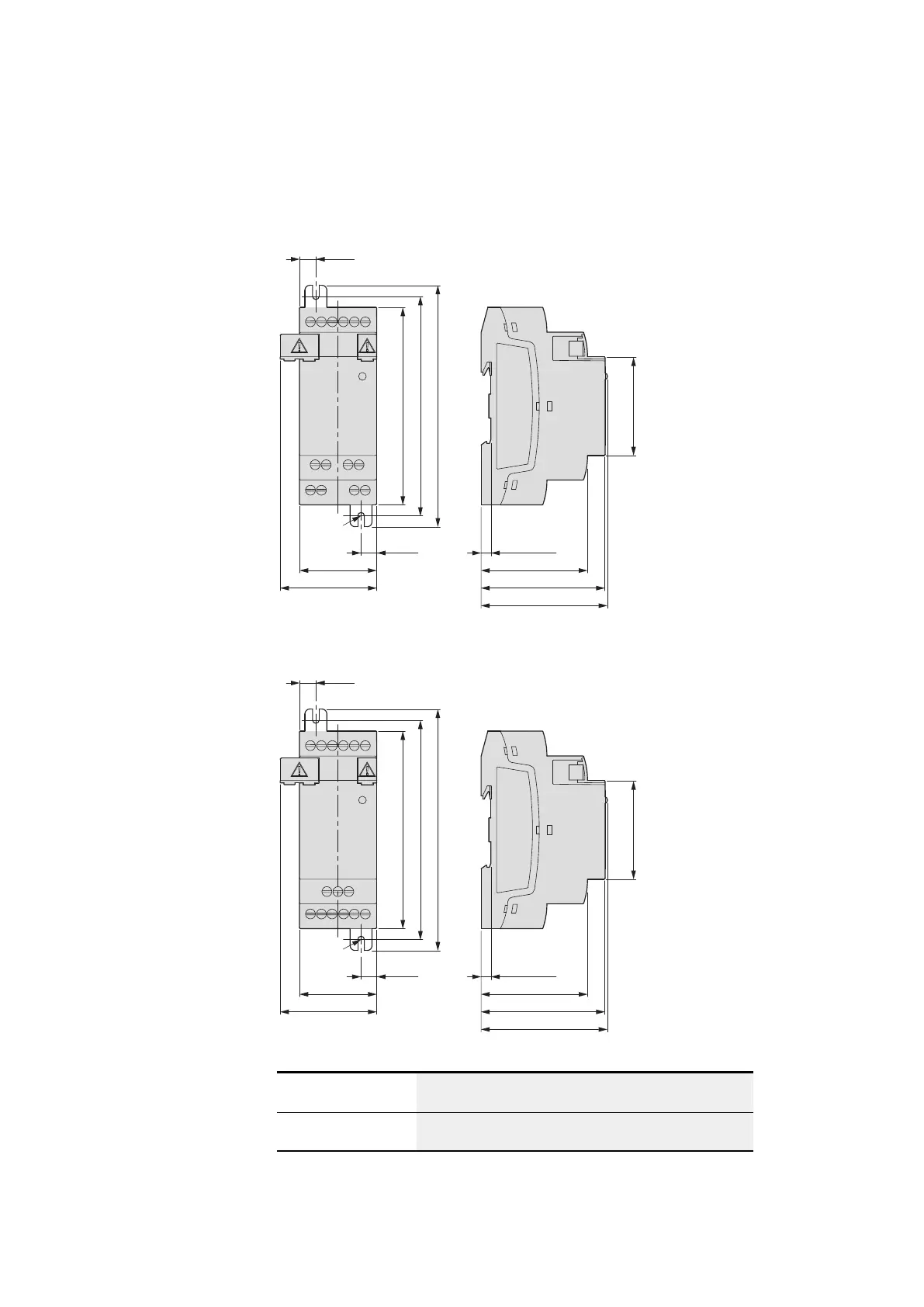

A.1 Dimensions
Expansion devices with 2 space unit front dimension
EASY-E4-UC-8RE1(P), EASY-E4-DC-8TE1(P), EASY-E4-DC-6AE1(P), EASY-E4-AC-8RE1(P)
45 mm (1.77")
4.5 mm (0.18")
48.5 mm (1 .91")
56.5 mm (2.22")
57.6 mm (2.27")
7.5 mm
(0.3")
7.5 mm
(0.3")
90 mm (3.54")
101 mm (3.97")
111 mm (4.37")
M 4,5
35 mm (1.38")
43.8 mm (1.72")
Fig. 367: Dimensions in mm (Inch) extensions 2SU
EASY-E4-DC-4PE1(P)
45 mm (1.77")
4.5 mm (0.18")
48.5 mm (1 .91")
56.5 mm (2.22")
57.6 mm (2.27")
7.5 mm
(0.3")
7.5 mm
(0.3")
90 mm (3.54")
M 4.5
35 mm (1.38")
43.8 mm (1.72")
101 mm (3.97")
111 mm (4.37")
Fig. 368: Dimensions in mm (Inch)
Width x Height x Depth
(without plug)
35 mm x 90 mm x 58 mm (1.38" x 3.54" x 2.28")
Weight
Please refer to the device data sheet
varies between 79 g and 232 g depending on the specific model
easyE402/24 MN050009ENEaton.com
821
