Eaton easyE4 User Manual

Appendix
A.1 Dimensions

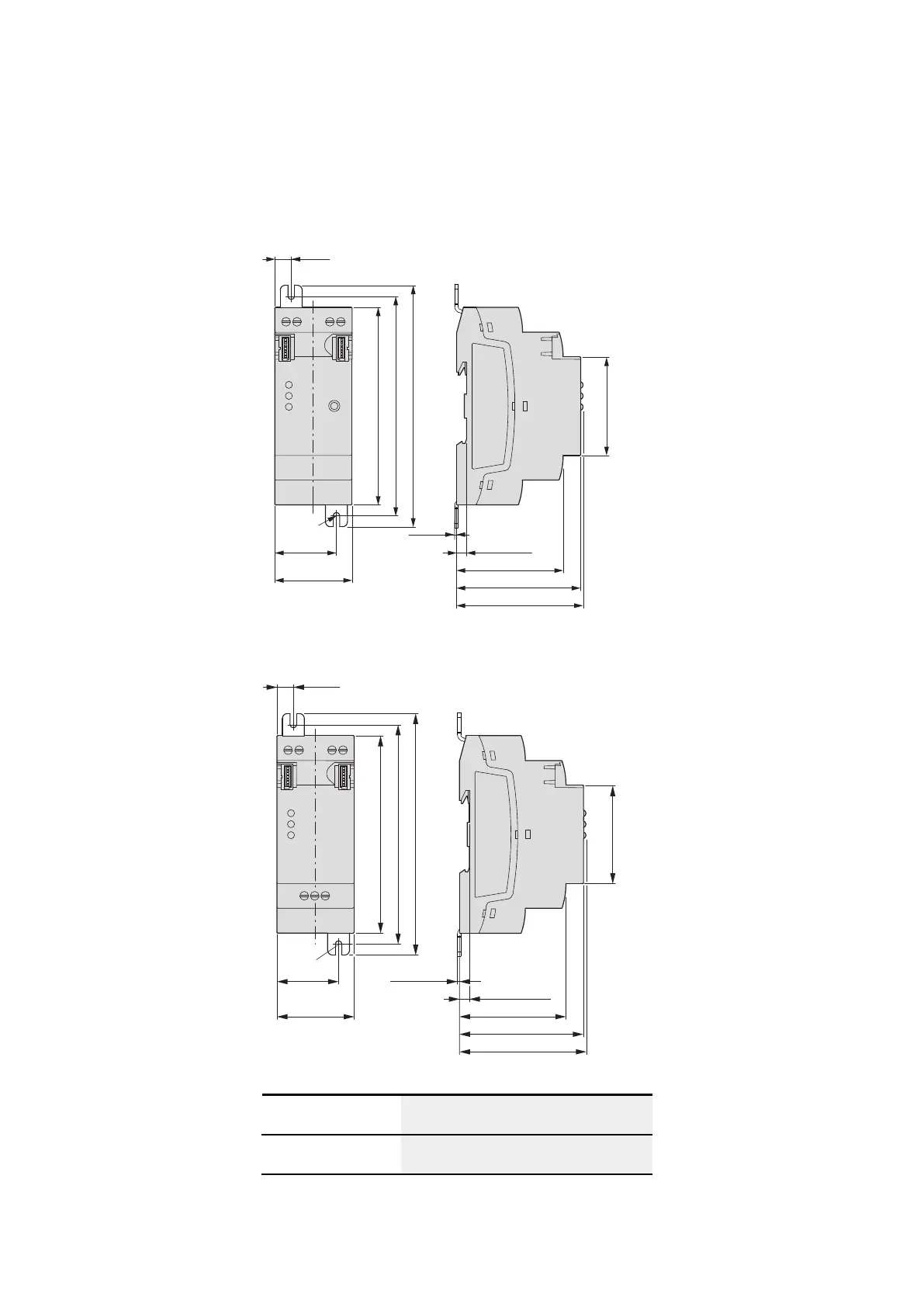

Communication modules with front dimension of 2 space units
EASY-COM-SWD-C1
45 mm (1.77")
4.5 mm (0.18
")
48.5 mm
(1 .91")
56.5 mm (2.22")
57.6 mm (2.27")
7.5 mm
(0.3")
27.5 mm
(1.08")
90 mm (3.54")
101 mm (3.97")
111 mm (4.37")
M 4,5
35 mm (1.38")
1 mm (0.04")
Fig. 369: Dimensions in mm (Inch) extensions 2SU
EASY-COM-RTU-M1
27.5 mm
(1.08")
M 4,5
1 mm (0.04
")
35 mm (1.38")
4.5 mm (0.18")
48.5 mm (1 .91")
56.5 mm (2.22")
57.6 mm (2.27")
45 mm (1.77")
90 mm (3.54")
101 mm (3.97")
111 mm (4.37")
7.5 mm
(0.3")
Fig. 370: Dimensions in mm (Inch) extensions 2SU
Width x Height x Depth
(without plug)
35 mm x 90 mm x 58 mm (1.38" x 3.54" x 2.28")
Weight
87 gr EASY-COM-SWD-C1
82 gr EASY-COM-RTU-M1
