Contextual help of the web interface – 34

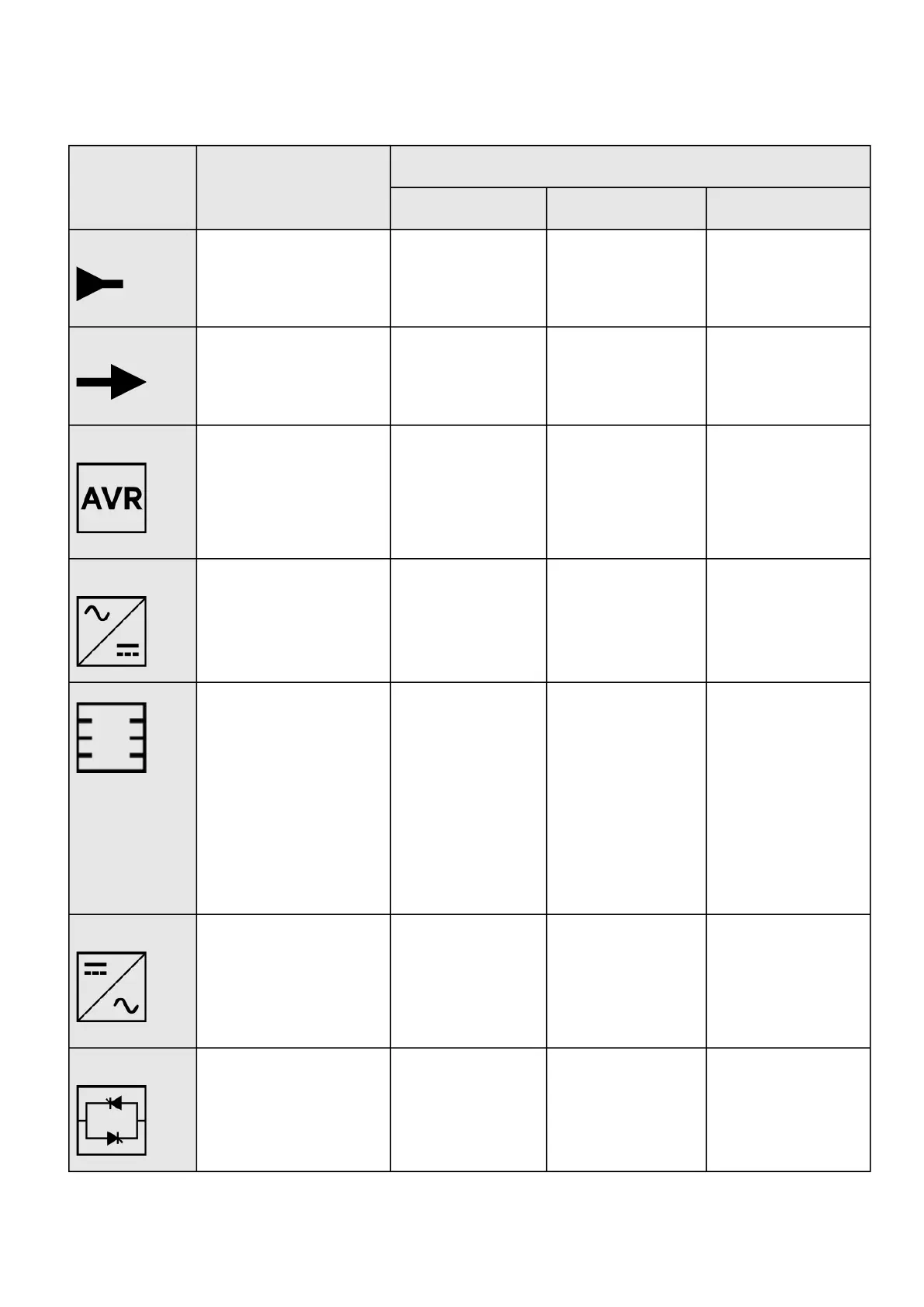

3.2.3.4 Diagram elements description
Description and
symbols
Description Possible states below the symbol
Good Warning Fault
Input Main utility input. In range Out of nominal range
Output Output of the UPS. Protected
Powered
In overload
Not protected
In short circuit
AVR device The equipment is protected and
powered through an AVR device.
Normal mode
Buck mode
Boost mode
In overload
Rectifier Rectifier: convert AC power to
DC power.
Normal
HE mode (ready) / ESS
mode (ready)
In overload In short circuit
In fault
Battery/Charger Battery and internal battery
charger.
Battery:
OK
Charger:
Charging
Floating
Resting
Off
Battery:
End of life
Battery:
In fault
Charger:
In fault
Not present
Inverter Inverter: convert DC power to
AC power.
Normal In overload In short circuit
In fault
Internal bypass Automatic bypass. Powered (standby, auto
bypass, forced bypass,
HE mode, ESS mode)
In overload In fault
