Edimax CAP1300 - Page 28

28

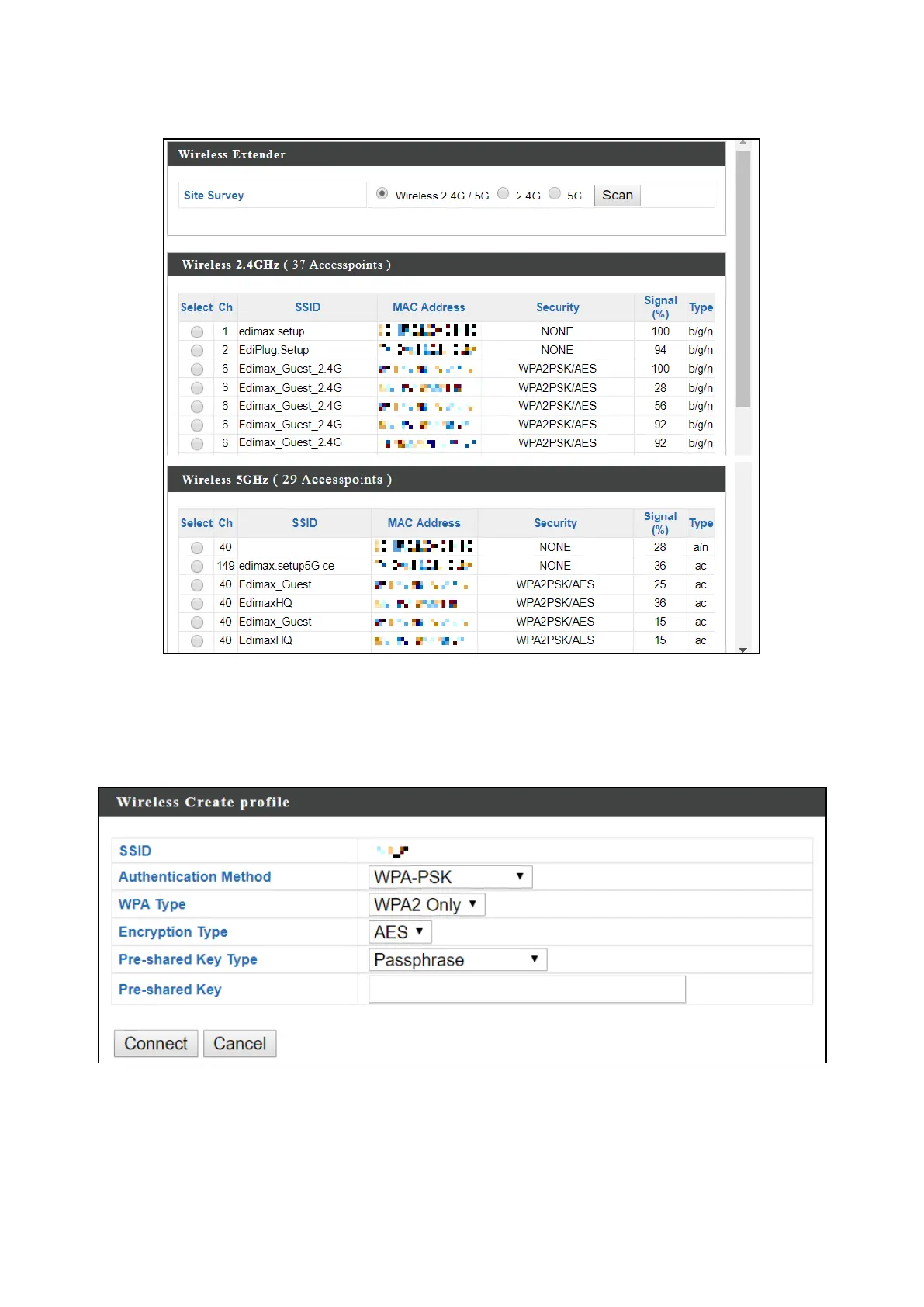

4. Click Scan to search for and display available SSIDs
5. Click the circle icon to connect to an available source SSID. SSIDs can be
configured independently for each frequency 2.4GHz & 5GHz.
6. Edit according to your preference and enter the security details for the
source SSID (e.g. Pre-shared Key). Click “Connect” to proceed.
