Installation

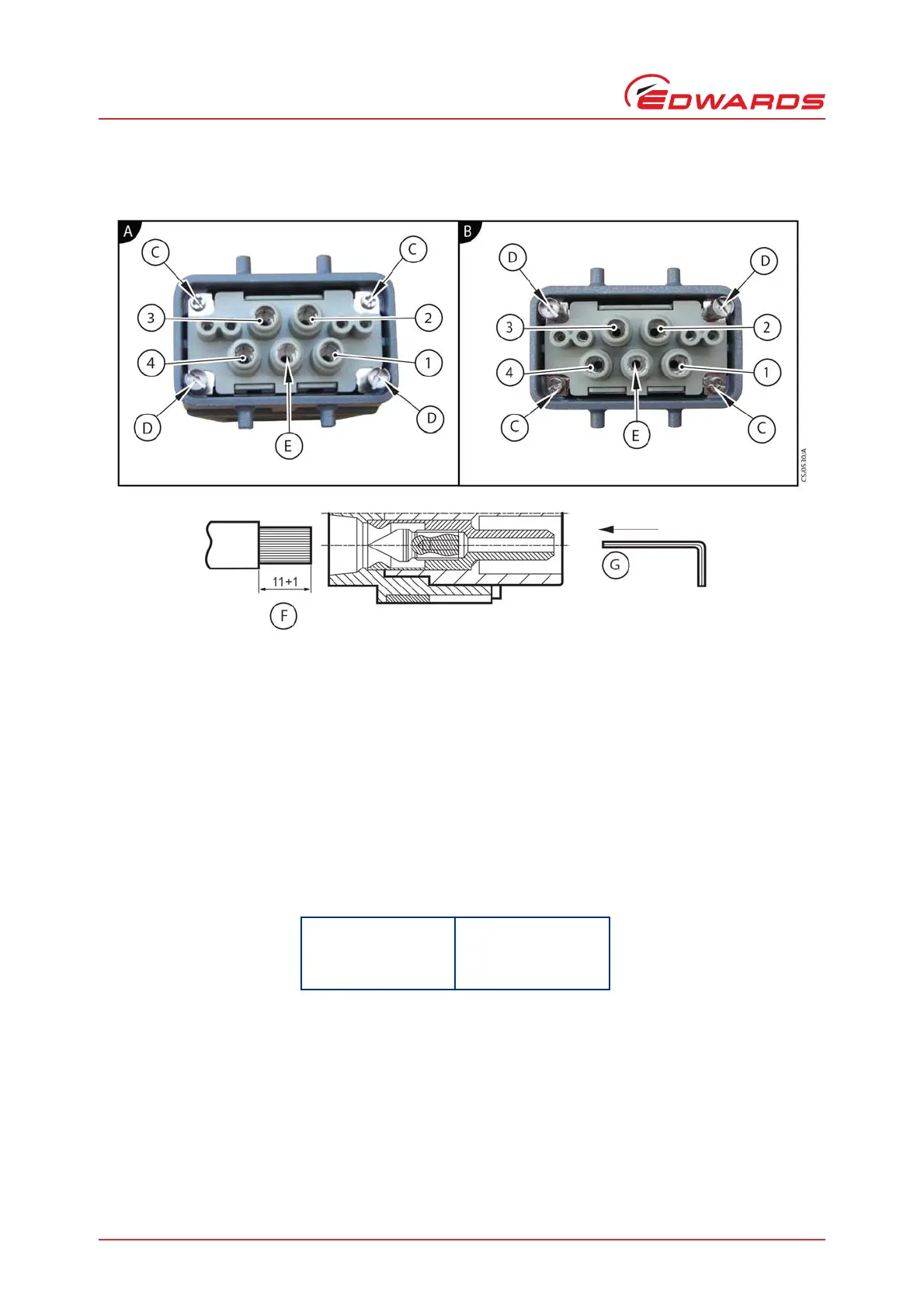

Figure 7 - The Harting Han® K 4/4 cable-mounted connector
A. Low volt pin configuration
B. High volt pin configuration
C. Mounting screw
D. Coding pin
E. Protective earth
F. Insert stranded wire
G. 2.5 mm hex (Allen) key
1. Pin 1 - Phase 1
2. Pin 2 - Phase 2
3. Pin 3 - Phase 3
4. Pin 4 - Not connected
Torque settings for connector pins
Cable size (mm
2
)
Max torque setting
(Nm)
62
10 3
16 4
