STP-iS2207 Series Turbomolecular Pump
MT-89E-001-C
Page 24
INSTALLATION
3
When installing the STP pump horizontally using a crane or other appropriate, support pump casing,
pump base, or control unit (see Figure 12). DO NOT apply face on convex parts, such as the outlet
port or connectors by ropes. Doing so may the pump to fall, or deform and damage the parts.
A crane due to lifting operations should withstand the load of five times or more the weight of the
STP pump, and rope should be seven time or more. When lifting the pump, use 2 or more ropes.

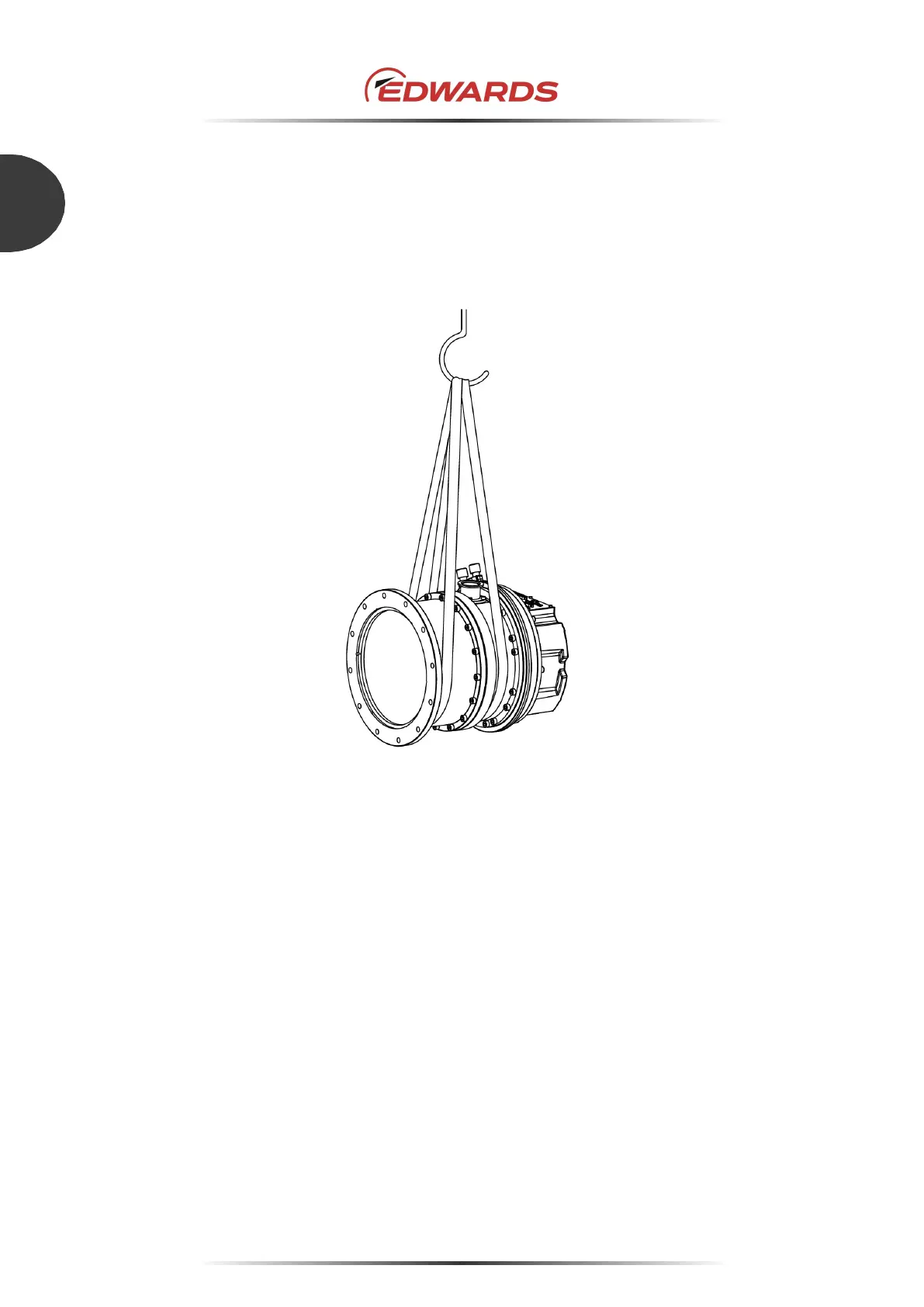

Figure 12 - Example of lifting the STP pump (horizontal positioning)
