Document ID: OMM-00148 Rev. B
23
3.3.2 Cyclonic Vacuum System
The cyclonic vacuum system is located in the waste compartment (behind the carriage rear access panel). This compartment
contains the cyclonic vacuum container, vacuum canister, and ink waste container as shown in
Figure 3-10. The design
allows for the removal of most of the ink from the vacuum system before it enters the vacuum canister. This function greatly
decreases or eliminates the need for excessive cleaning and replacing of filters in the vacuum canister.
The cyclonic vacuum system allows the operator to empty the ink vacuum canister without having to remove the canister from the printer.
This system operates so that the cyclonic vacuum container can be emptied into the ink waste container by means of the Liquid Separator
button located in the carriage Home compartment. The waste container can then be removed from the ink compartment and emptied.

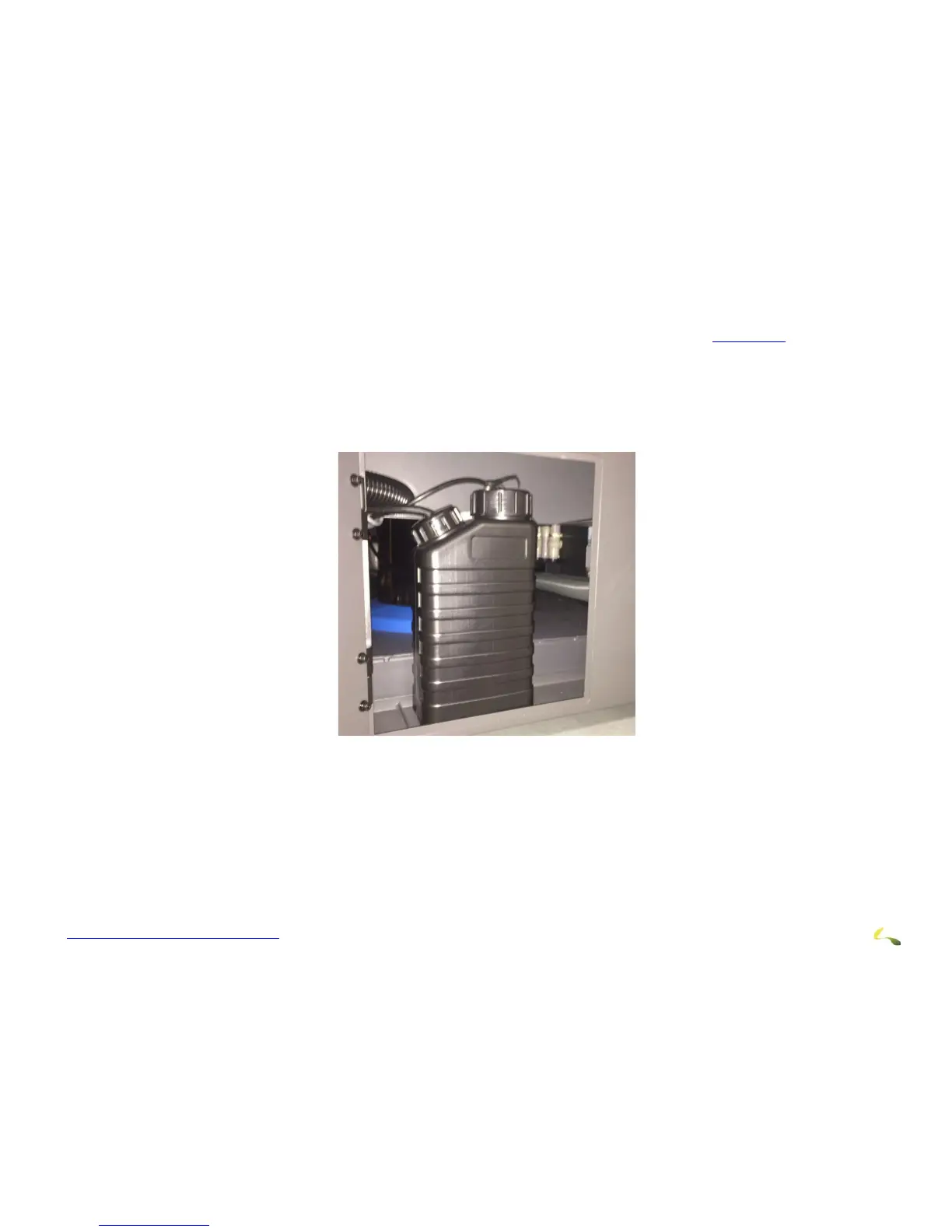

Figure 3-10: Ink Waste Container)
1
Cyclonic Vacuum Container 2 Vacuum Canister 3 Ink Waste Container
