EFI Pro 24f - Carriage Assembly; Front Carriage Assembly

Document ID: OMM-00148 Rev. B
16
3.1.1 Carriage Assembly
1
2
3
4
5
6
7
8
The carriage assembly contains many critical components required for Inkjet printing. These components include print heads
and the electronics to control them, ink tanks for the print heads, lamps for curing the ink, and a negative pressure system
that controls ink flow. Each system is described in the paragraphs and figures included in this section.
Front Carriage Assembly

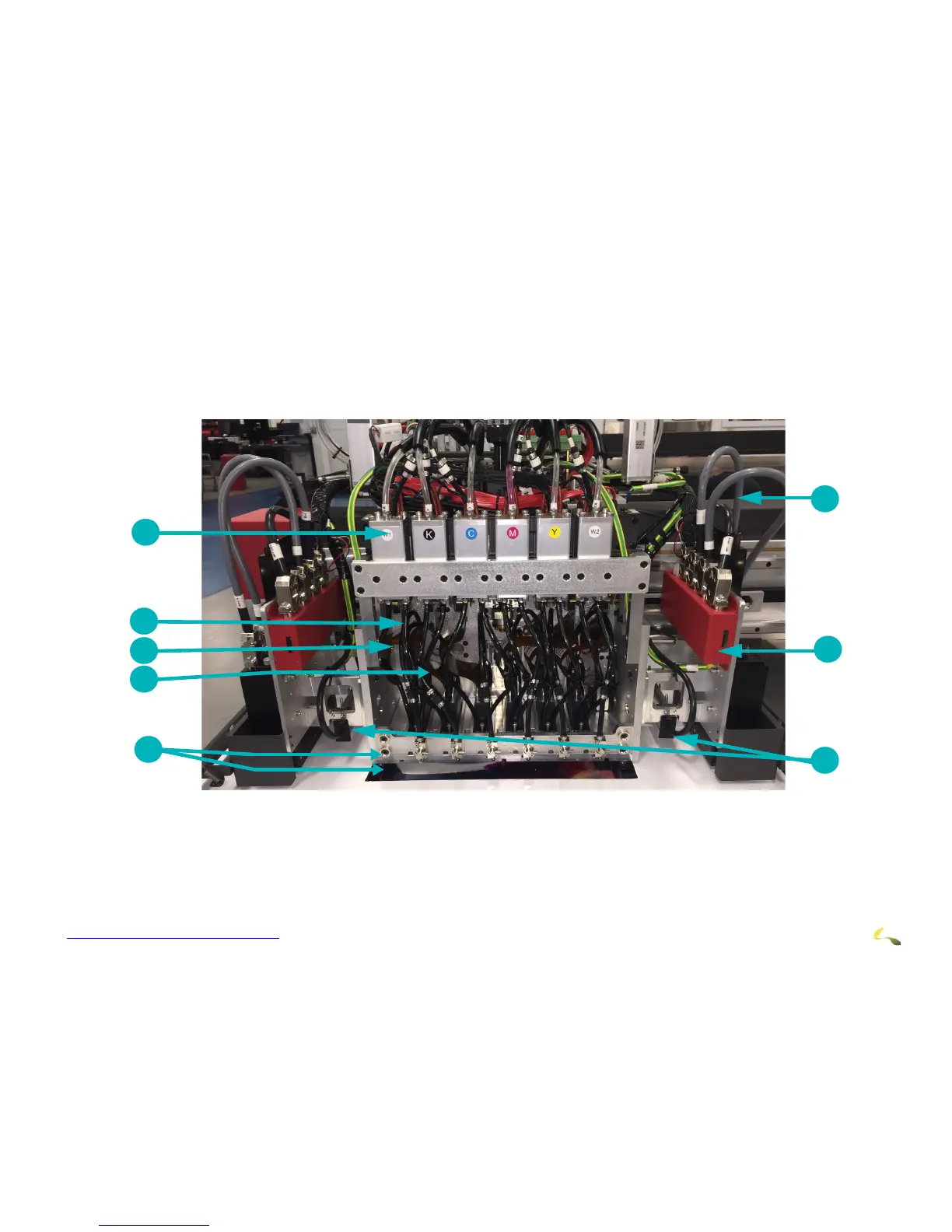

Figure 3-3: Carriage Front View (No Covers Shown)
1Secondary Ink Tanks 2Ink Filters 3 Ink Bleed Tubes
4Ink Supply Tubes 5Ink Bleed Valves and Drain Trough 6 Lamp Cables
7LED Lamps 8Antistatic Bars
