3.4.5 Media Vacuum Foot Pedal
The media vacuum foot pedal controls the media belt vacuum. With the main vacuum breaker in the on position and the vacuum control
valves open, stepping on this pedal turns the vacuum motors on and creates the vacuum in the platen that holds media in place when print-
ing.

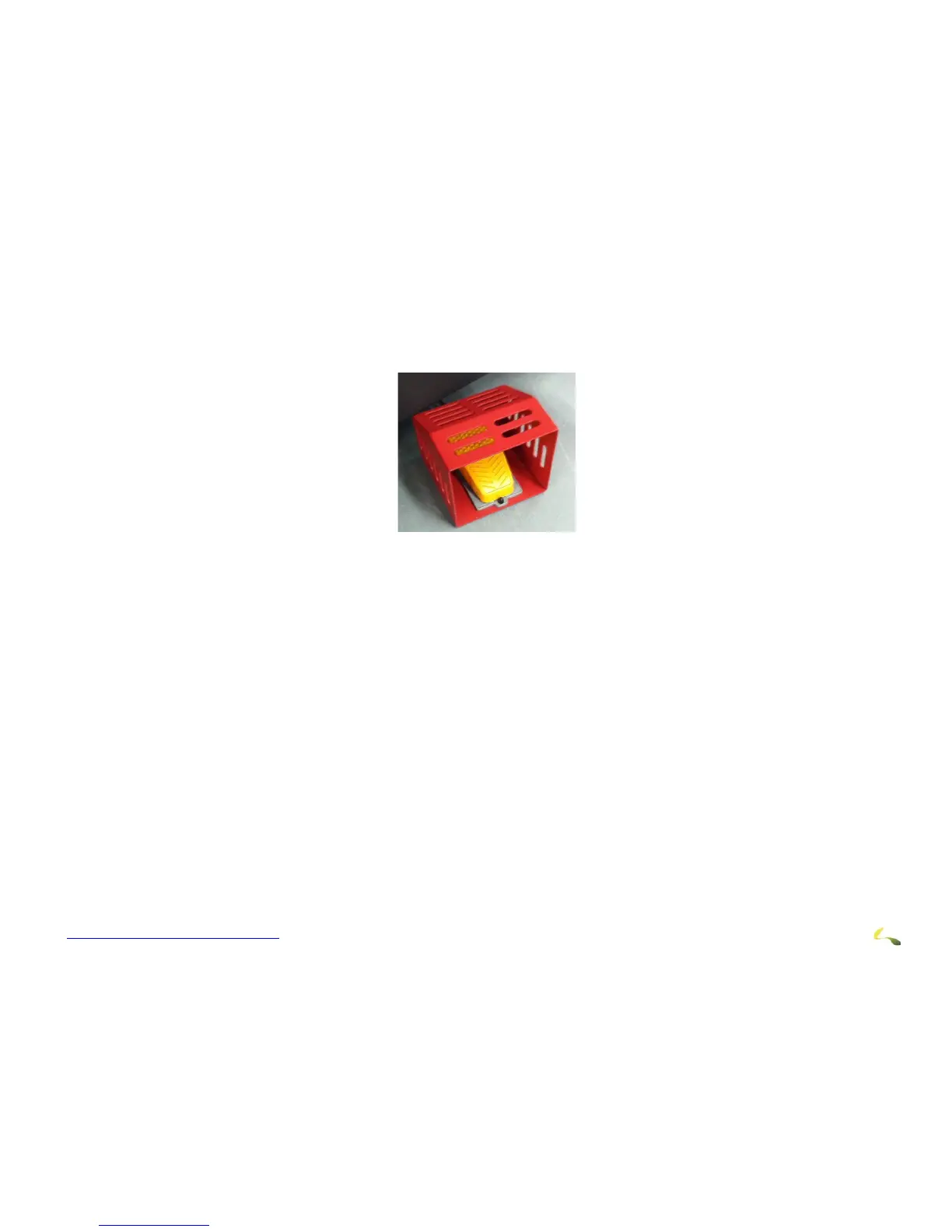

Figure 3-17: Media Belt Vacuum Foot Pedal
