6.1.3 Set the Carriage Gap
1. In the EFI Pro 24f Control window’s Carriage box, click the Set Gap button.

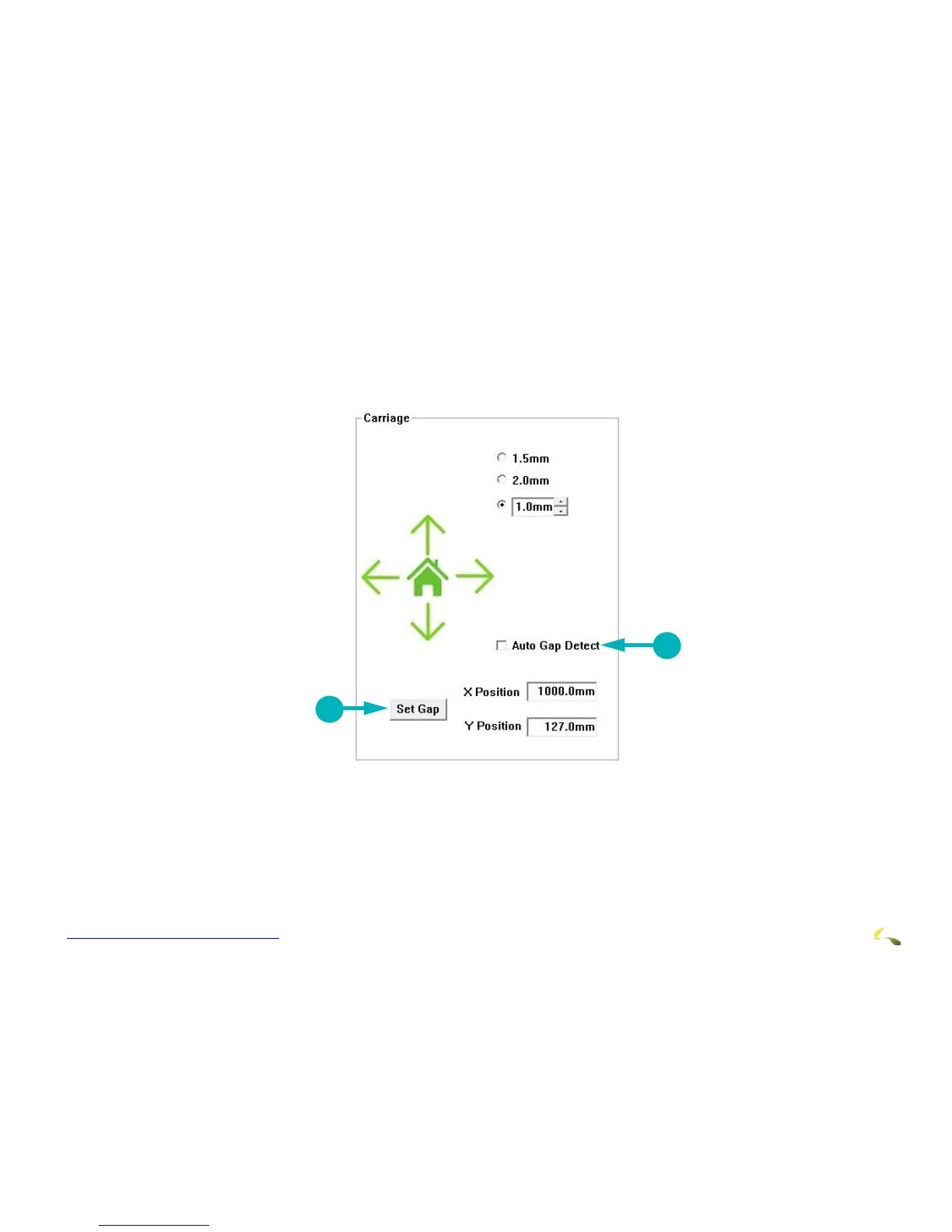

Figure 6-5: Carriage Box
1
2
The printer carriage raises in home zone, advances over the media, lowers to measure the media thickness, and then returns to
the home zone.
2. Check the Auto Gap Detect box to measure media
thickness with every print
1Set Gap button 2Auto Gap Detect check box
