44

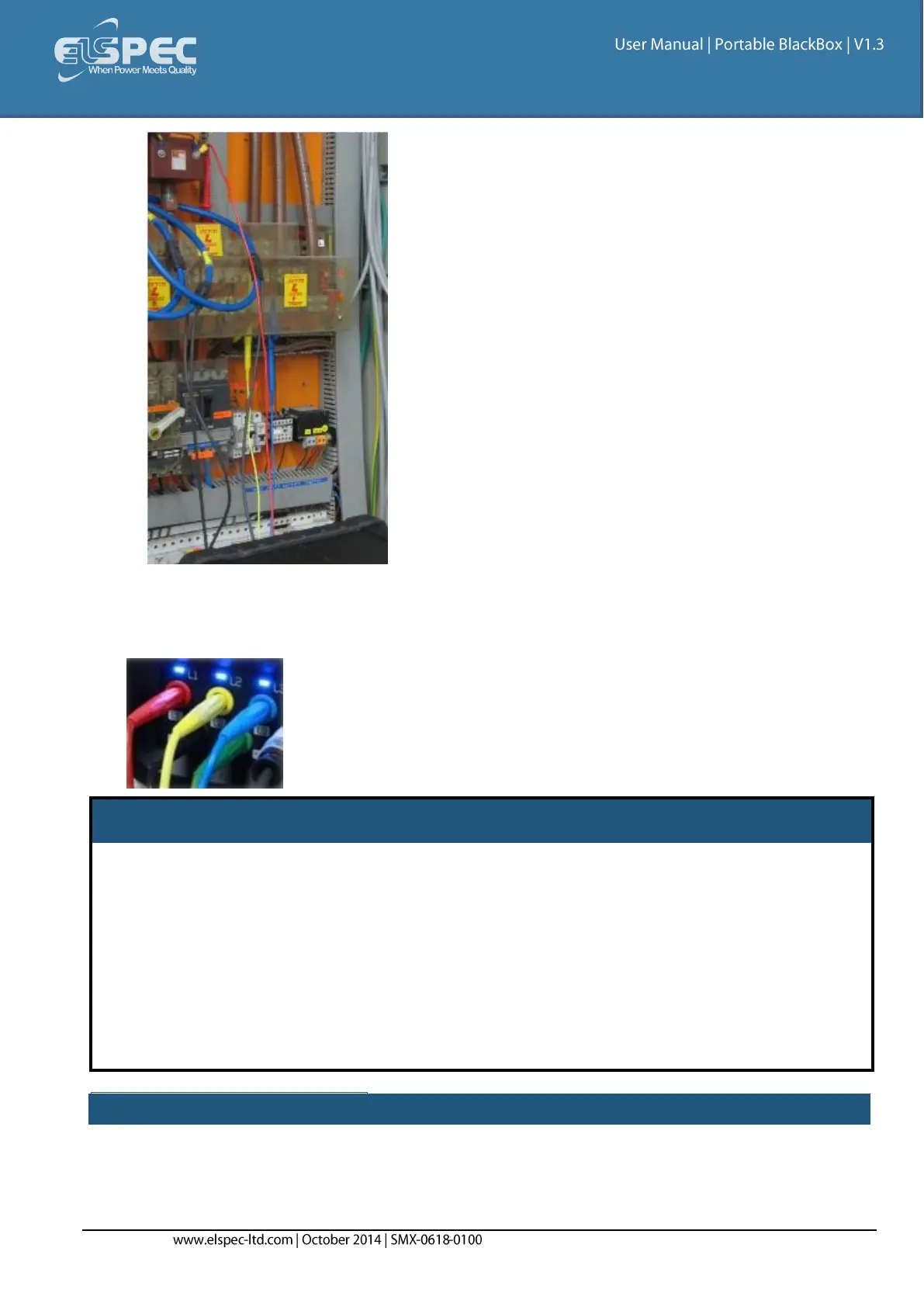

 The LED light will illuminate confirming a solid connection & the Voltage Levels are above
10% of the nominal value:
SPECIFICATION
G4500
G3500
Maximum Voltage Input
1KV
1KV
Nominal Voltage Range
110 to 690V
110 to 690V
Maximum Peak Measurement Voltage
8KV
8KV
Input Impedance
3MΩ
3MΩ
Bandwidth
25kHz
12.5kHz
Nominal Frequency
42.5Hz to 69Hz
42.5Hz to 69Hz
plug in the current probes:
You may use any clamp (either Elspec / Custom clamps). The clamps convert current to low voltage.
