User Manual Chapter 10
GFK-1742F Jan 2020
Introduction to Local Logic Programming 265
10.9 Using the Motion Program Editor
Now that you have successfully gotten the Local Logic program working, it would be useful
to link in a Motion Program. The Motion Program editor is accessed in a manner very similar
to the Local Logic editor. The editor allows you to easily create, edit, store, and download
Motion programs.
10.9.1 Creating a Motion Program
To create a Motion program in Machine Edition, expand the Motion Program folder in the
Navigator, then right click the Motion Blocks folder and choose New. The new Motion block
appears in the Navigator.

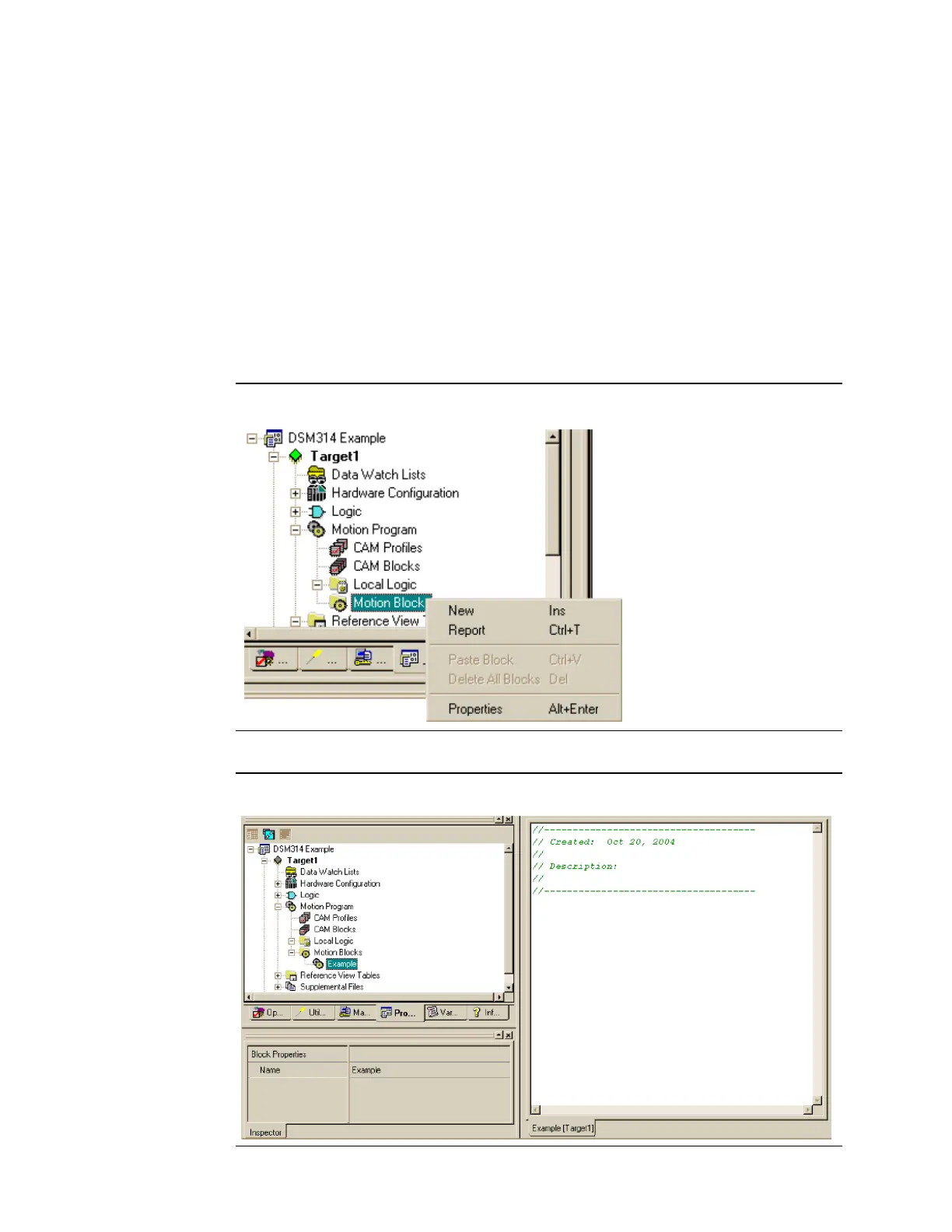

Figure 131: Creating a Motion Program in Machine Edition
To open the Motion editor, double click the Motion block.
Figure 132: Motion Program Editor
