User Manual Chapter 2
GFK-1742F Jan 2020
System Overview 40
2.5 Machine Edition Configuration
This section describes configuration using Machine Edition software. For VersaPro software,
refer to Appendix H.
1.

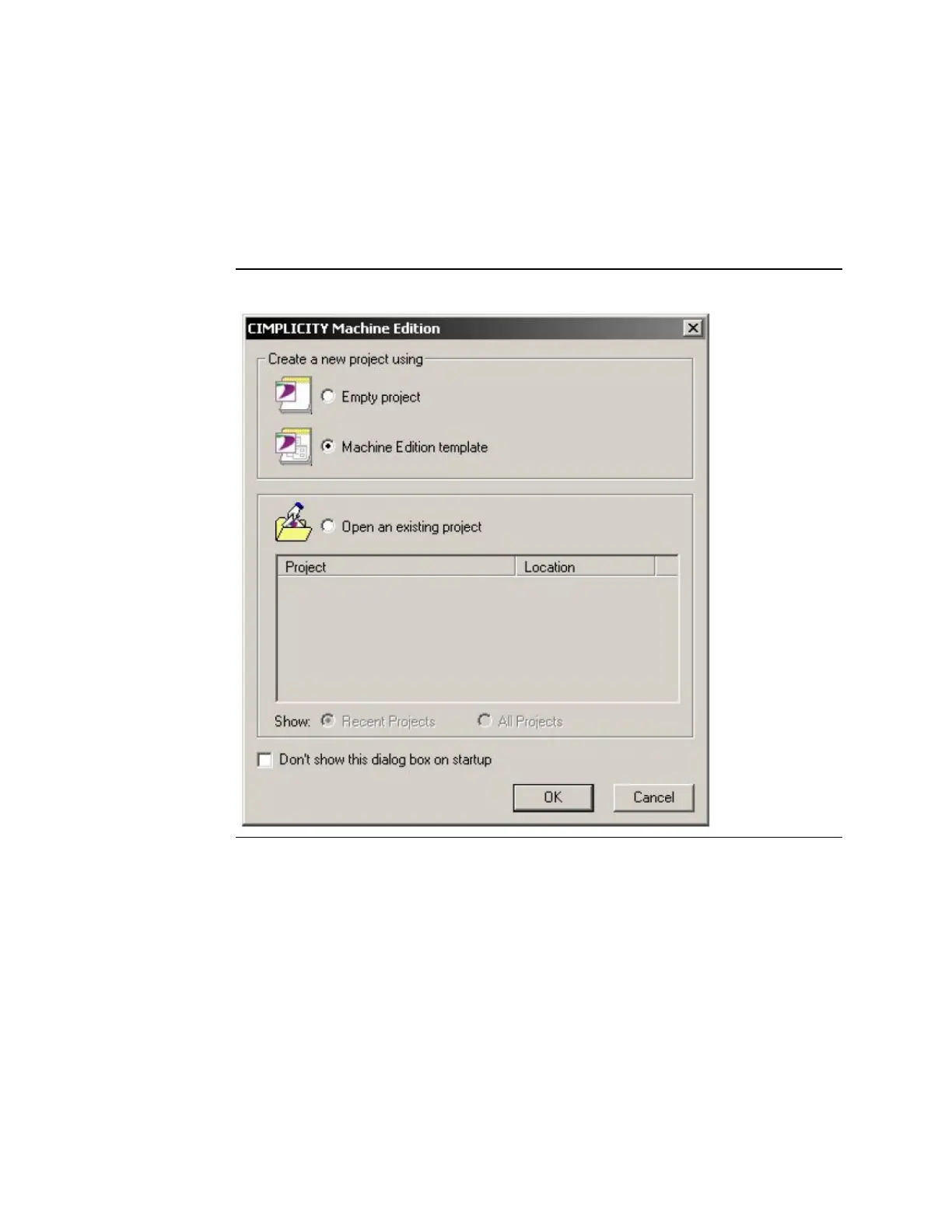

Start the Machine Edition Logic Developer – PLC software. The Machine Edition
dialog box appears.
Figure 24
2.
Under Create a New Project, choose Machine Edition Template and click OK. The
New Project dialog box appears.
3.
Type a name for Project Name. In the Project Template dropdown list, select Series
90-30 PLC or PACSystems RX3i. Click OK.
