User Manual Chapter 2

GFK-1742F Jan 2020

System Overview 41

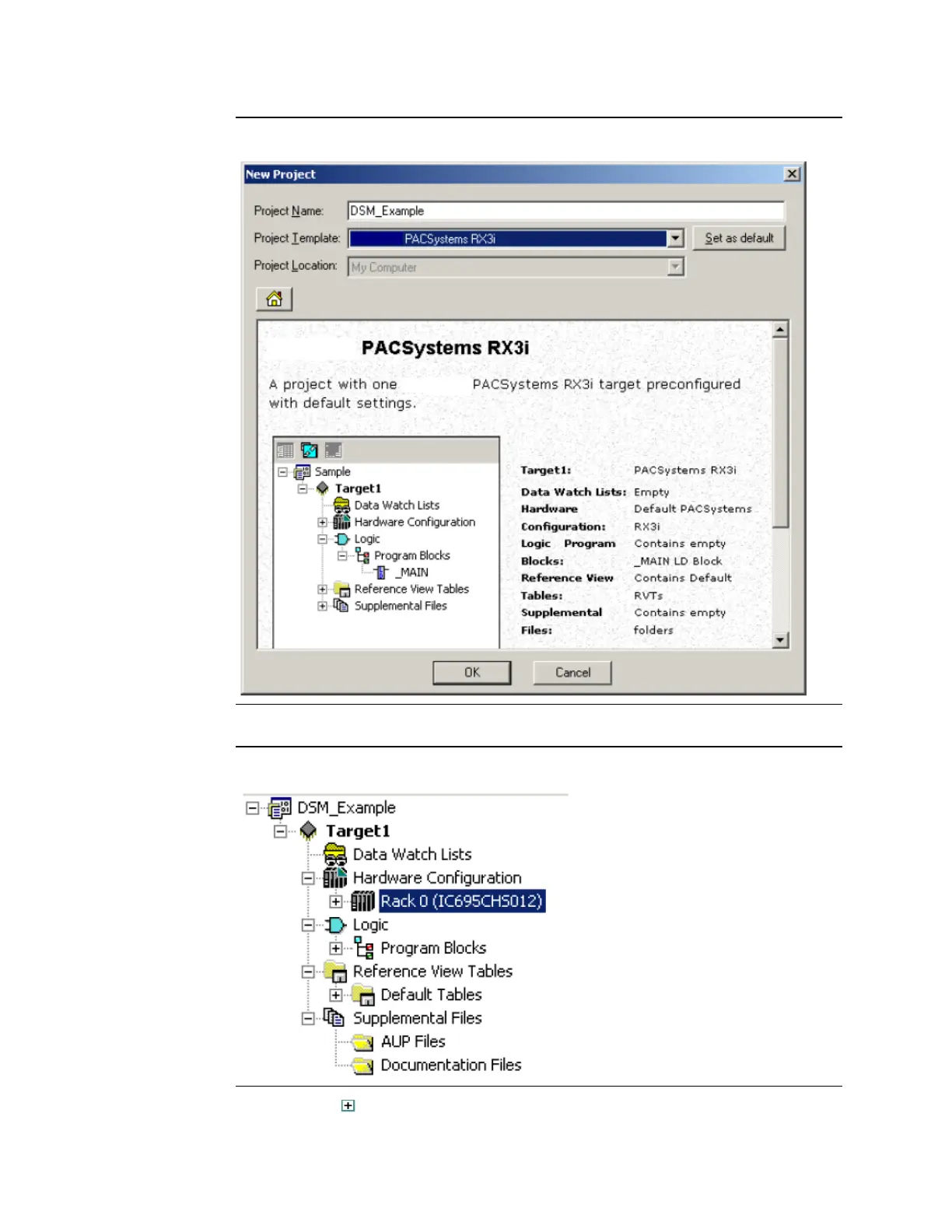

Figure 25

Your project appears in the Navigator window as shown in the following figure.

Figure 26

4.

Expand the Main Rack node, which contains the default power supply and CPU.
